CAME BK-221E User Manual

360
CAME
105
22 max.
182.5
142.5
325
170
255
106
15
p.
3
3 - Manual code:
119 B J 04 E N
119BJ04EN v.
1
1 02/2015
© CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice..
LEGEND
 This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
DESCRIPTION
Operator complete with control board and mechanical end stops for sliding gates up to 2,200 kg in weight and 20 m in length.
Intended use
The operator is designed to power sliding gates used in apartment blocks and industrial plants.
Any installation and/or use other than that specified in this manual is forbidden.
Limits to use
Type BK-221E
Maximum door-leaf length (m) 20
Maximum door-leaf weight (kg) 2.200
Pinion module 4
REFERENCE REGULATIONS
Came Cancelli Automatici S.p.A. is certified for the: ISO 9001 quality and ISO 14001 environmental management systems.
This product complies with the current regulations mentioned in the declaration of conformity.
Technical data
Type BK-221E
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 230 AC
Power supply to motor (V - 50/60 Hz) 230 AC
Draw (A) 5.1
Standby consumption (W) 4.14
Green Power consumption (W) 0.58
Power rating (W) 580
Thrust (N) 1,500
Opening speed (m/min) 10.5
Duty cycle INTENSIVE USE
Operating temperature (°C) -20 ÷ +55
Condenser (μF) 22
Insulation class I
Motor's heat protection (°C) 150
Weight (kg) 21

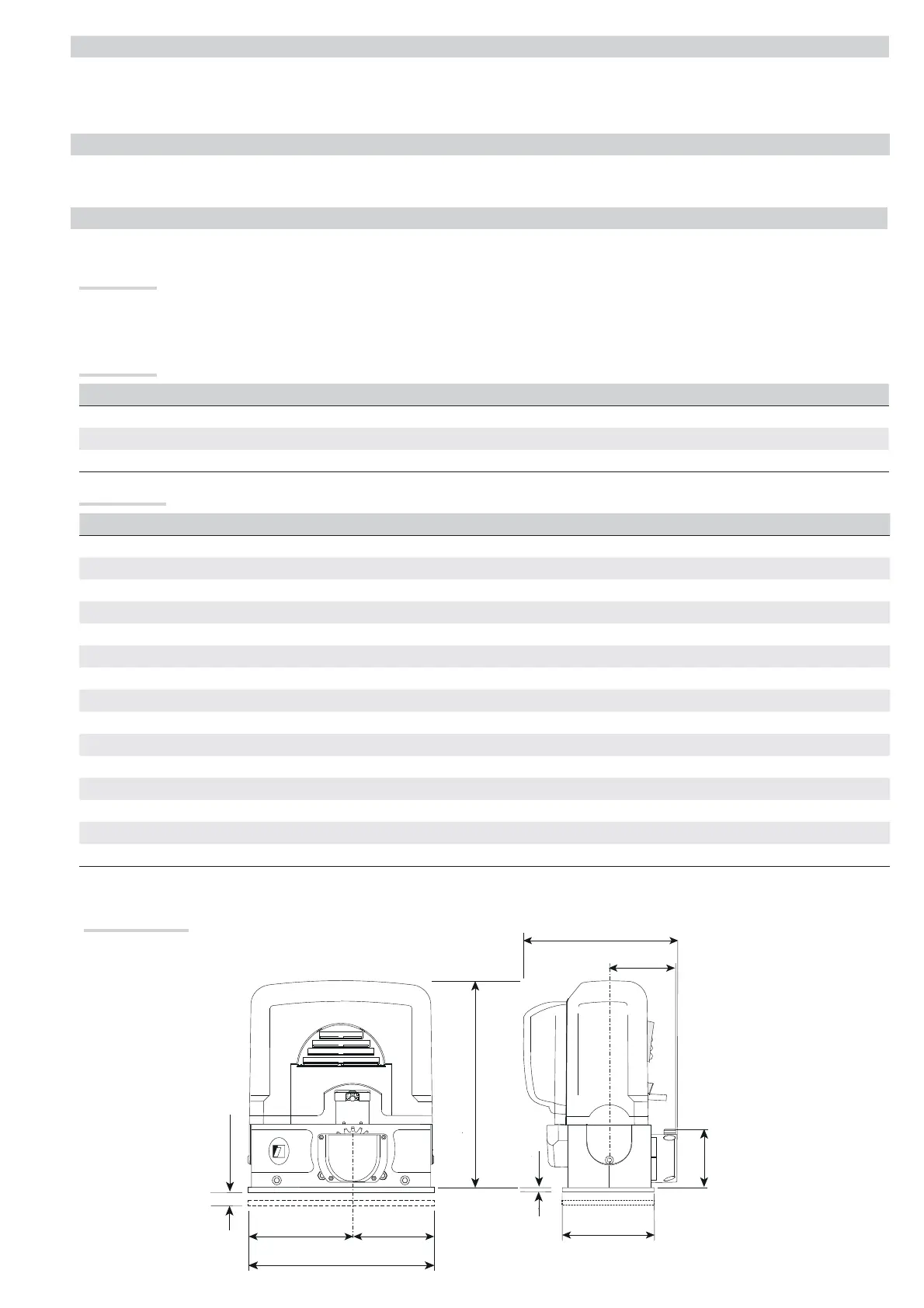

Dimensions (mm)
