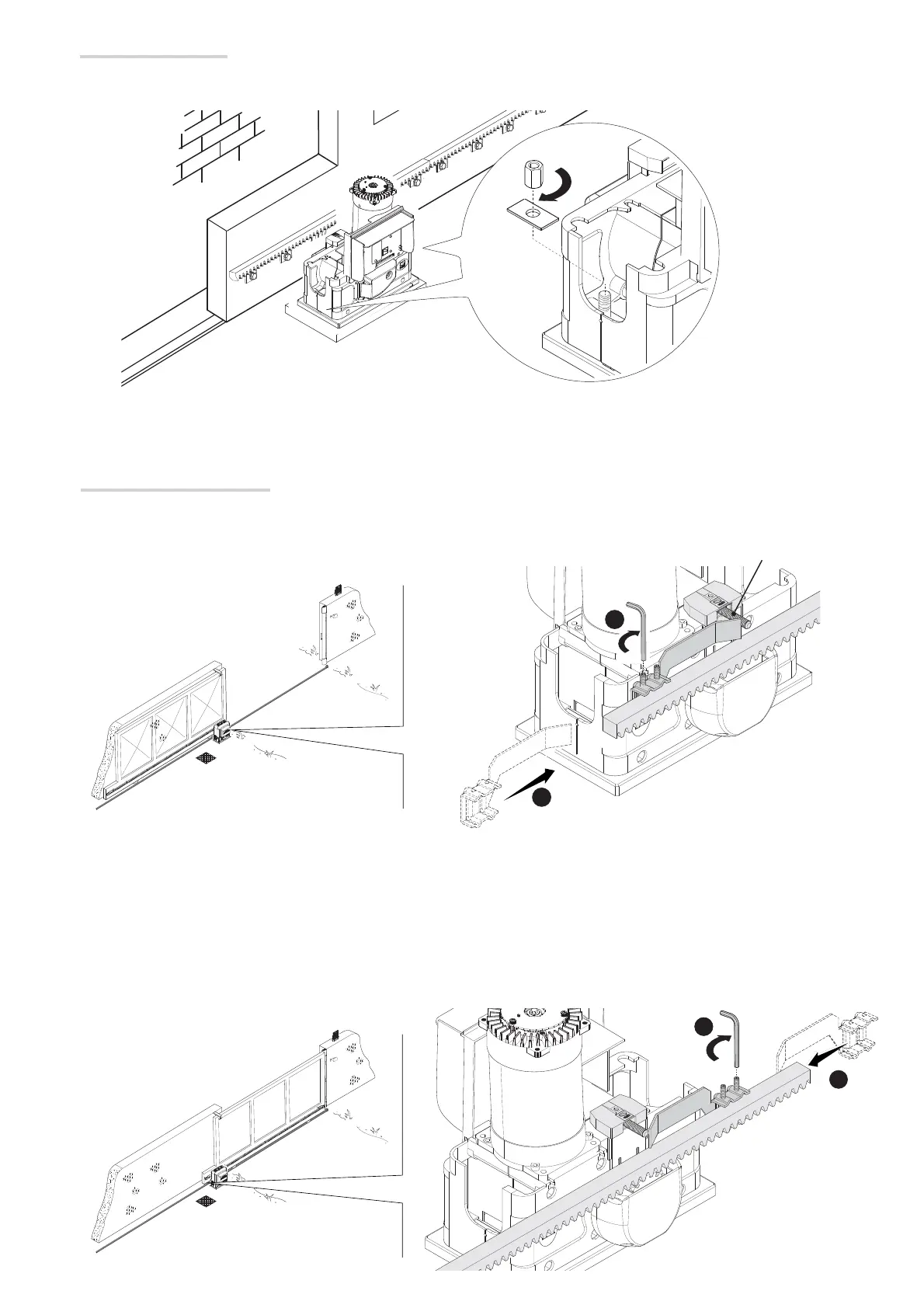

Fastening the gearmotor
Once adjusting is complete, fasten the gearmotor to the plate using the plates and nuts.
Establishing the endstop points
For opening:
- completely open the gate;
- fit the opening endstop fin onto the rack until the micro switch activates (spring);
- fasten it using the allen screws
For closing:
- completely close the gate;
- fit the closing endstop fin onto the rack until the micro-switch activates (spring);
- fasten it using the allen screws
⚠
Don't let the gate get to the mechanical stop, whether it is the opening or closing one.
Spring
