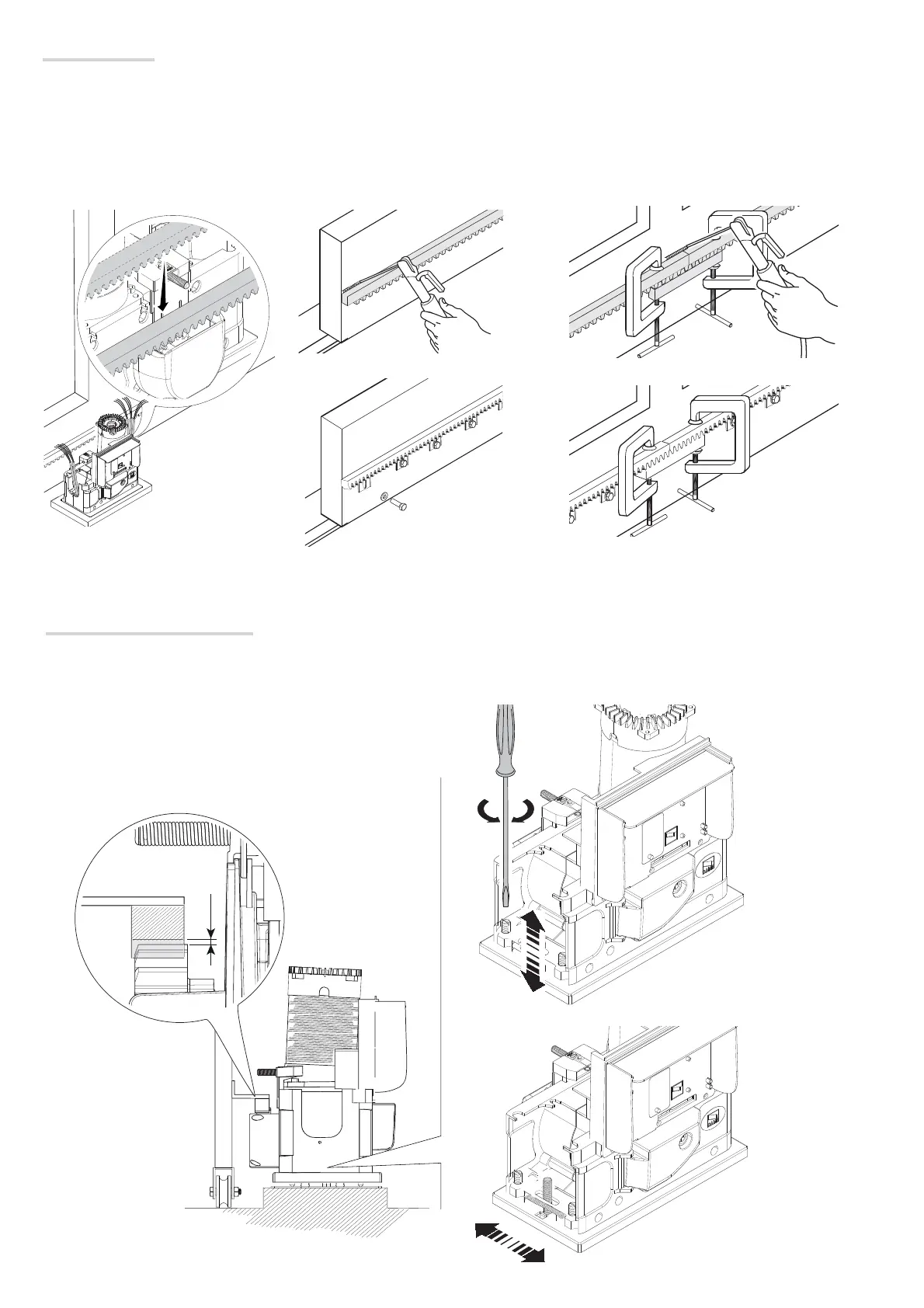

Fastening the rack
If a rack is already in place, move directly to adjusting the rack-pinion coupling distance, otherwise, follow the fastening instructions as explained
below:
- release the gearmotor (see gearmotor releasing paragraph);
- rest the rack (module 4) above the gearmotor pinion;
- weld or fasten the rack to the gate along its entire length.
To assemble the rack modules, use one its extra lengths, rest it under the joining point and lock it using two clamps.
Adjusting the pinion-rack coupling
Manually open and close the gate and adjust the pinion-rack coupling distance using the threaded feet (vertical adjustment) and the holes
(horizontal adjustment). This prevents the gate's weight to bear directly onto the operator.
