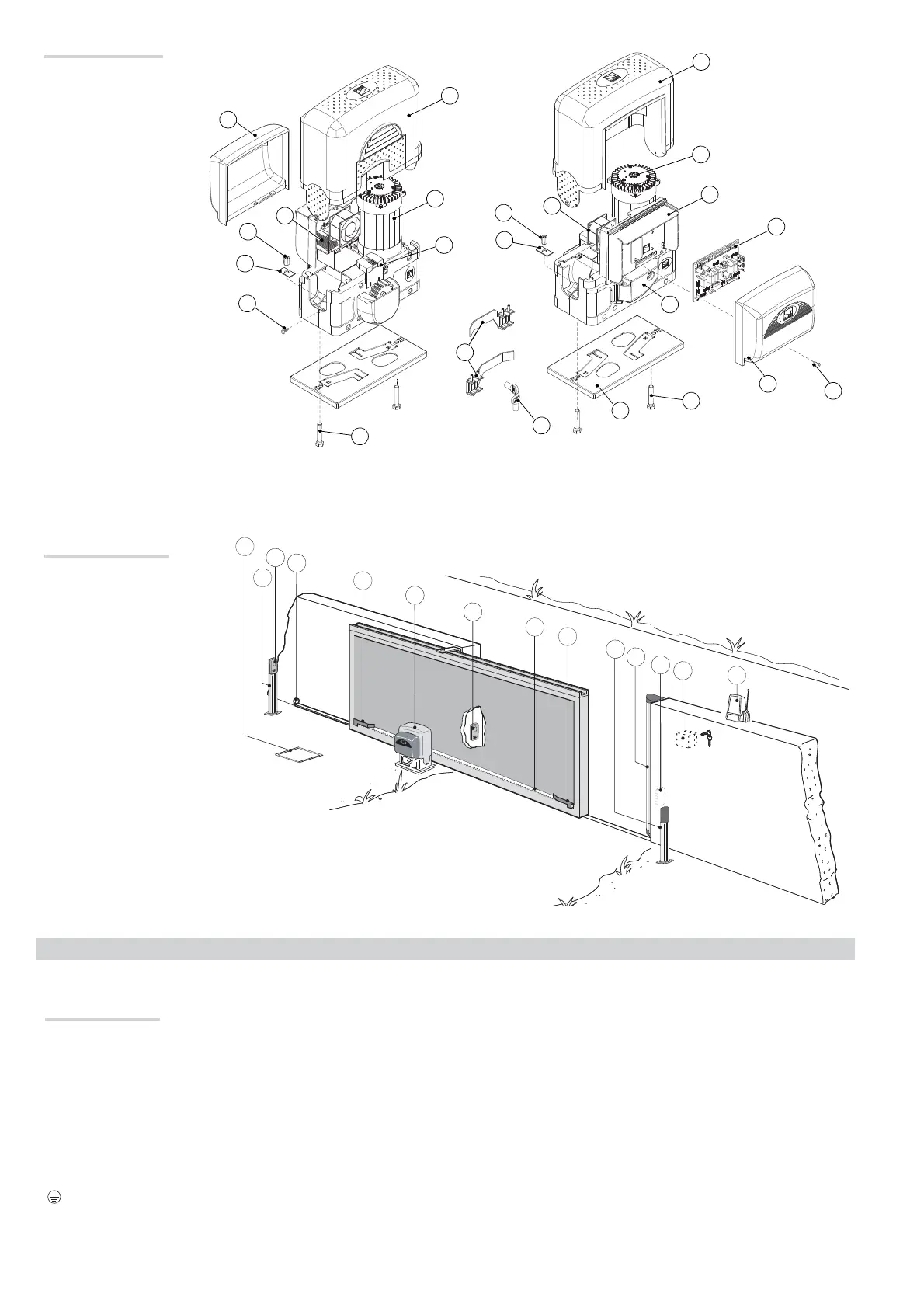

Description of parts
1. Cover
2. Gearmotor
3. Control board
4. Front cover
5. Anchoring plate
6. Nut plate
7. Nut
8. UNI5739 M12X70 screw
9. Control-board housing
10. Release key
11. Endstop fins
12. Mechanical endstop
13. UNI6954 3.9X13 screw
14. UNI6954 3.9X22 screw
15. Fan
16. Transformer
17. Encoder
18. Release hatch
Standard installation
1. Operator
2. Endstop fins
3. Rack
4. Key-switch selector
5. Flashing light
6. Photocells
7. Photocells post
8. Mechanical gate stop
9. Sensitive safety-edge
10. Junction pit
GENERAL INSTRUCTIONS FOR INSTALLING
⚠
Only skilled, qualified staff must install this product.
Preliminary checks
⚠
Before beginning the installation, do the following:
• check that the gate is stable and that the hinges are in good working order and lubricated;
• check that the ground guides are well fastened to the ground, completely on the surface and free of any irregularities that may obstruct the gate's
movement;
• check that the upper slide guides are free of any friction;
• make sure there are opening and closing mechanical gate stops;
• make sure that the point where the gearmotor is fastened is protected from any impacts and that the anchoring surface is solid enough.
• Make sure you have set up a suitable dual pole cut off device along the power supply that is compliant with the installation rules. It should completely
cut off the power supply according to category III surcharge conditions (that is, with minimum contact openings of 3 mm);;
• make sure that any connections inside the container (ones that ensure continuity to the protection circuit) are fitted with additional insulation with
respect to those of other electrical parts inside:
• set up suitable tubes and conduits for the electric cables to pass through, making sure they are protected from any mechanical damage.
