CAME STYLO User Manual

Page
4
4 - Manual FA01806-EN - 01/2024 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Translated original instructions
KEY
 This symbol indicates parts to read carefully.
⚠
This symbol indicates parts about safety.
☞ This symbol tells you what to say to end users.
DESCRIPTION
Intended use
Limitations of use
The STYLO gearmotor is designed to automate residential and apartment block swing gates.
 Any use other than that described above and installations that differ from what is set out in this technical manual are
forbidden.
This product has been designed and built by CAME S.p.A.
The full range:
001STYLO-ME - 24 V DC non-reversible external gearmotor
001STYLO-RME - 24 V DC reversible external gearmotor
Mandatory accessories for STYLO-RME:
001LOCK81 - Single-cylinder blocking electro-lock
001LOCK82 - Double-cylinder blocking electro-lock
Model STYLO ME - STYLO RME
Gate leaf width (m) 1.80 1.20 0.80
Gate leaf weight (kg) 100 125 150
Max gate leaf opening (°) 120 (with 001STYLO-BS arm) 135 (with 001STYLO-BD arm)
T

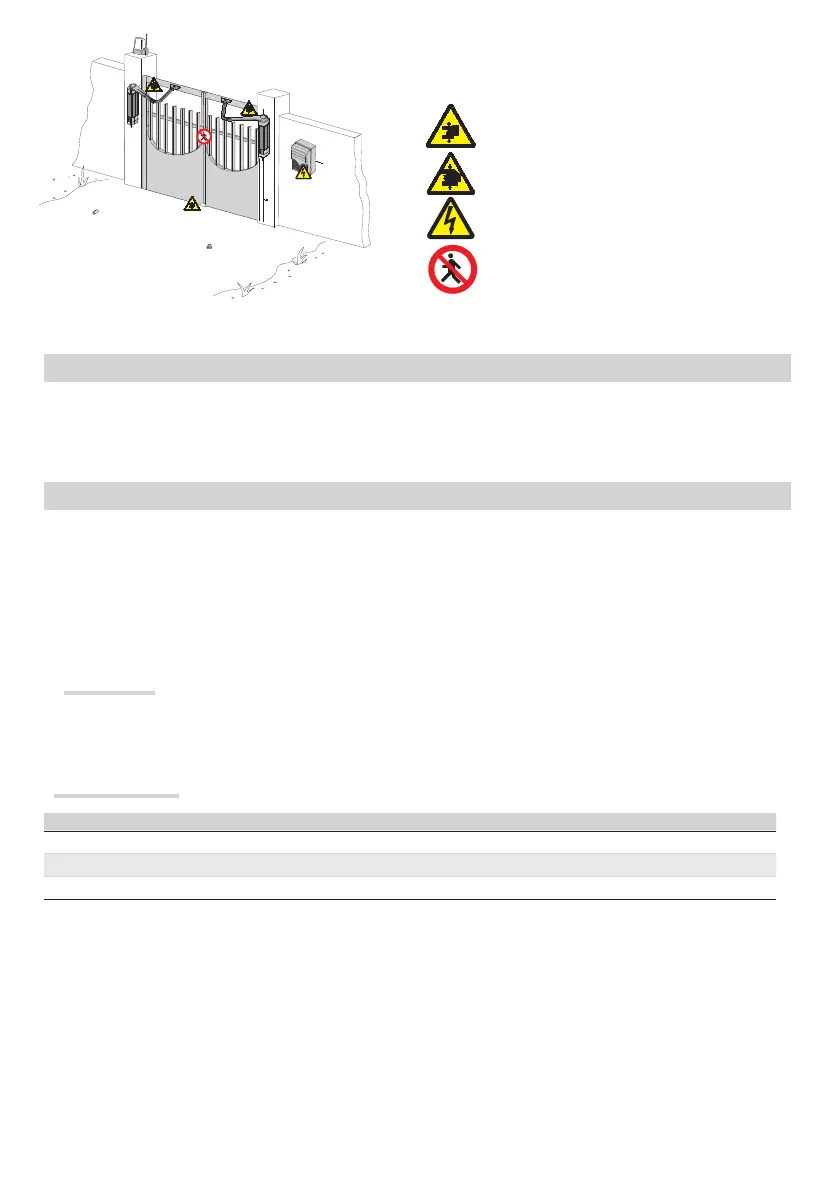

HE MEASUREMENTS, UNLESS OTHERWISE STATED, ARE IN MILLIMETERS.
Danger of hand crushing
Danger! High voltage.
No transiting while the barrier is moving
Danger of foot crushing
For swing gates, installing an electric lock is always recommended. This is to ensure the leaves close reliably and to protect the
gearmotor parts. It is also recommended for irreversible gearmotors – and is mandatory where the leaves are more than 2.5m in
length. For reversible gearmotors, electric locks are required to ensure the leaves close. The installer is responsible for installing an
electric lock, taking into account the size and type of leaf (e.g. panelled) and the installation area (e.g. windy location).

CAME STYLO Specifications

General

Brand	CAME
Model	STYLO
Category	Gate Opener
Language	English
