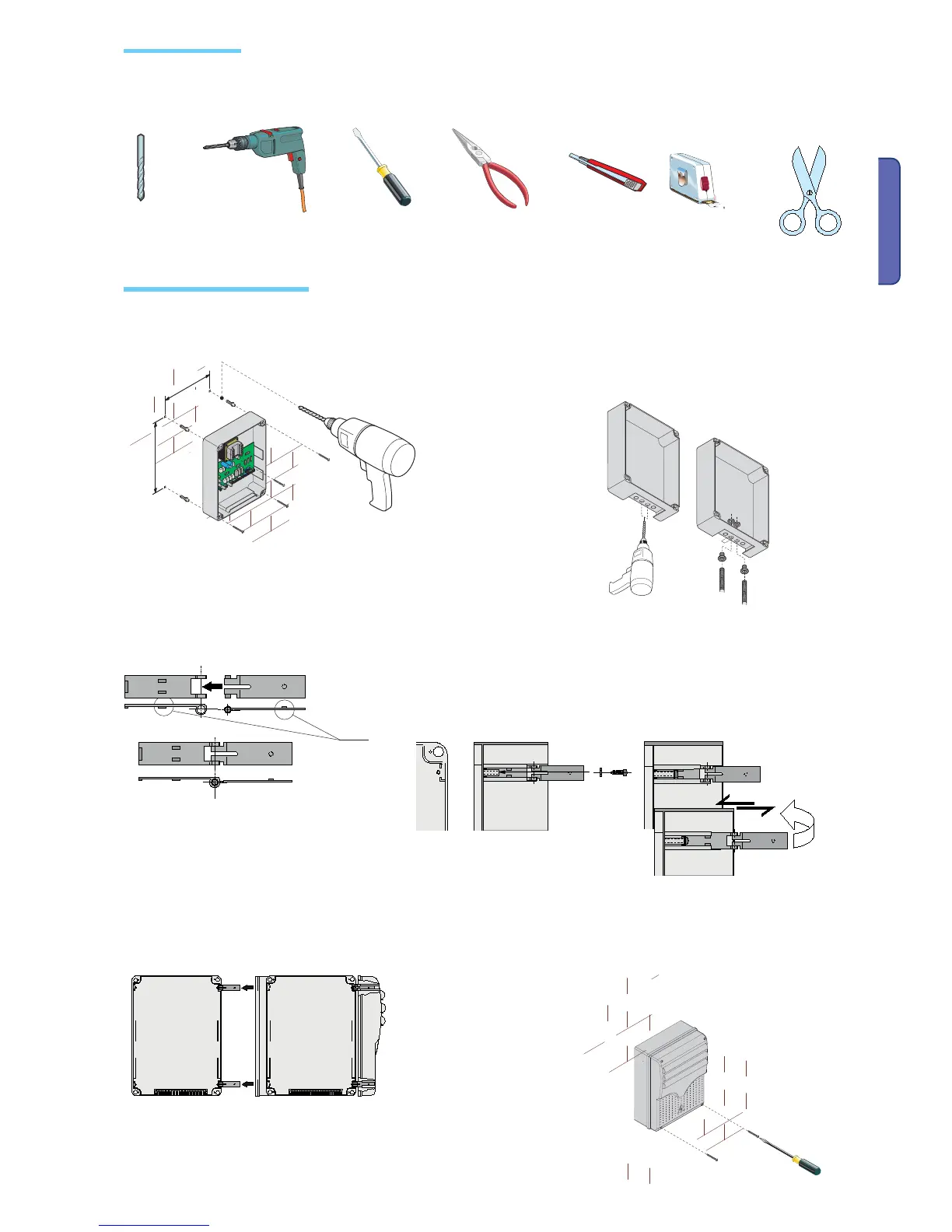

1) Secure the base of the panel to a protected area; we
suggest using cross slot Phillips head bolts of max. 6
mm in diameter.
2) Perforate the pre-punched holes and insert the cable
glands with the corrugated tubing for the electrical cables to
travel through.
N.B.: diameter of the pre-punched holes: 20 mm.
3) Assemble the pressure hinges.
4) Insert the hinges into the box (either on the right or left side, as you
prefer) and secure them using the supplied nuts and bolts.
Slide the hinges
so they can rotate.
Make sure you have all of the tools and materials you will need to proceed with the installation in total safety, according to current
rules and regulations.
Here are some examples.
6) After any calibrations and adjustments, secure the
cover using the supplied screws.
5) Snap the hinge covers into place.
Tools and equipment
Anchoring and mounting the box
