RX TX
./ # .#
RX TX
P. 8 - Manual code: 319V21EN Vers. 3 04/2017 © CAME cancelli automatici S.p.A. - The data and information in this manual are subject to change at any time without prior notice required by Came Cancelli Automatici S.p.A.
ENGLISH

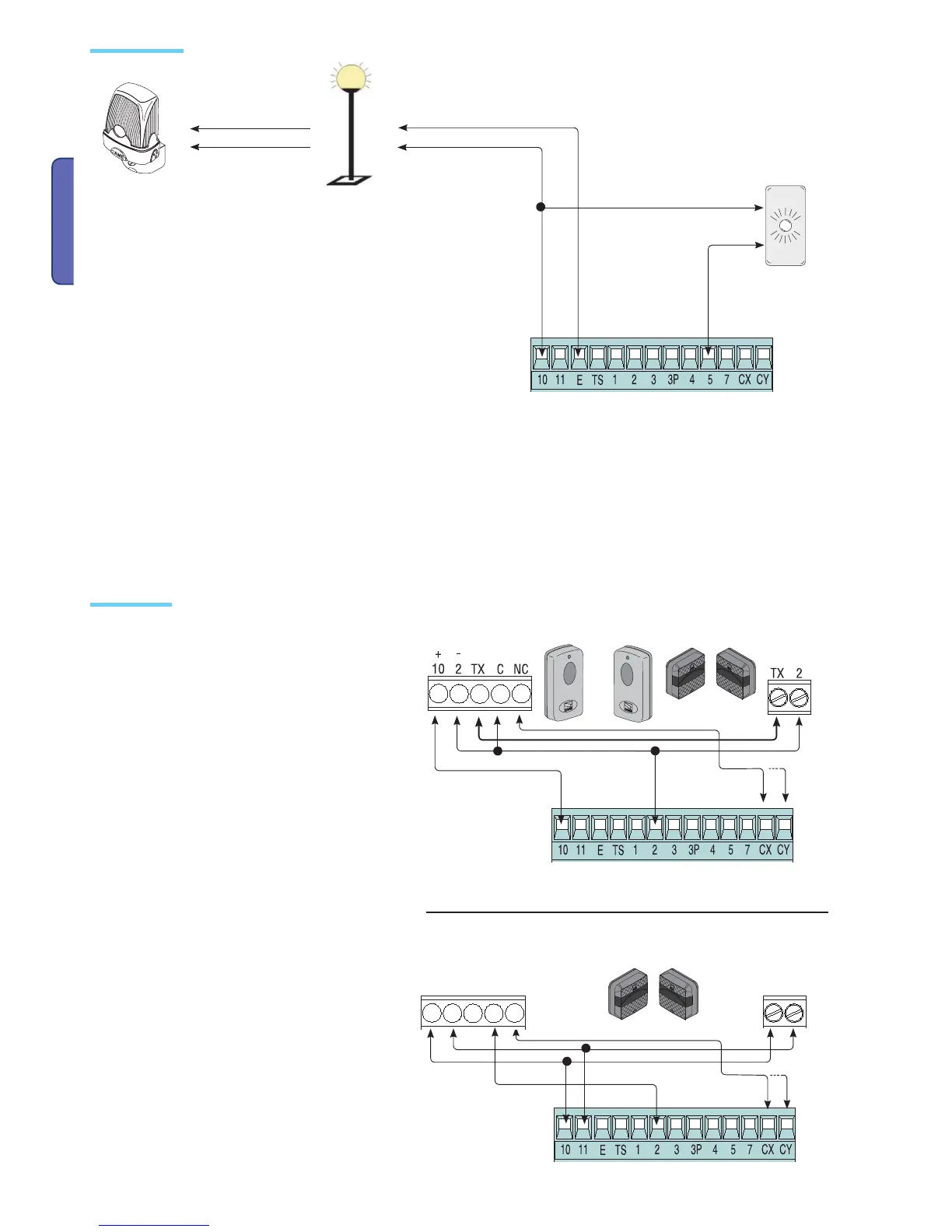

Confi gure either (N.C.) contacts CX or CY , input for EN
12978 compliant safety devices such as photocells.
See CX (F2 Function) or CY(F3 Function) input functions
in:
- C1 «re-open during closing phase», when the gate
leaf is closing, opening the contact triggers the inver-
sion of the direction of movement until the gate leaf is
fully open.
- C2 «re-close during opening phase», when the gate
leaf is opening, if the contact is opened it triggers an
inversion of the direction until gate leaf is fully closed;
- C3 «partial stop», halts moving gate leaves and
causes them to automatically close (if this functions has
been selected);
- C4 «stand-by obstacle», stops the moving gate leaves
causing them to start moving again once obstacle is
removed.
N.B. : if CX and CY contacts are unused they need
to be deactivated during programming.
DIR
photocells
Safety devices
Courtesy or cycle light (contact rated up to:
24V – 25 W max.) – auxiliary connection of
an outdoor lamp that can be freely positio-
ned, for additional lighting of the driveway.
Cycle light: It stays on from the moment the
gate begins opening until it is fully closed
(including the automatic closing time).
Courtesy light: Stays on for a fixed time
period (see function “F25”).
Open gate indicator-light (So-
cket rating: 24 V – 3 W max.). It
turns on when the gate is open.
It turns off when the gate is
closed (see function “F10”).
Flashing light (socket
rating: 24 V DC - 25 W
max.) – It flashes during
opening and closing
phases of leaf.
Warning devices
DELTA-S
photocells
DELTA
photocells
