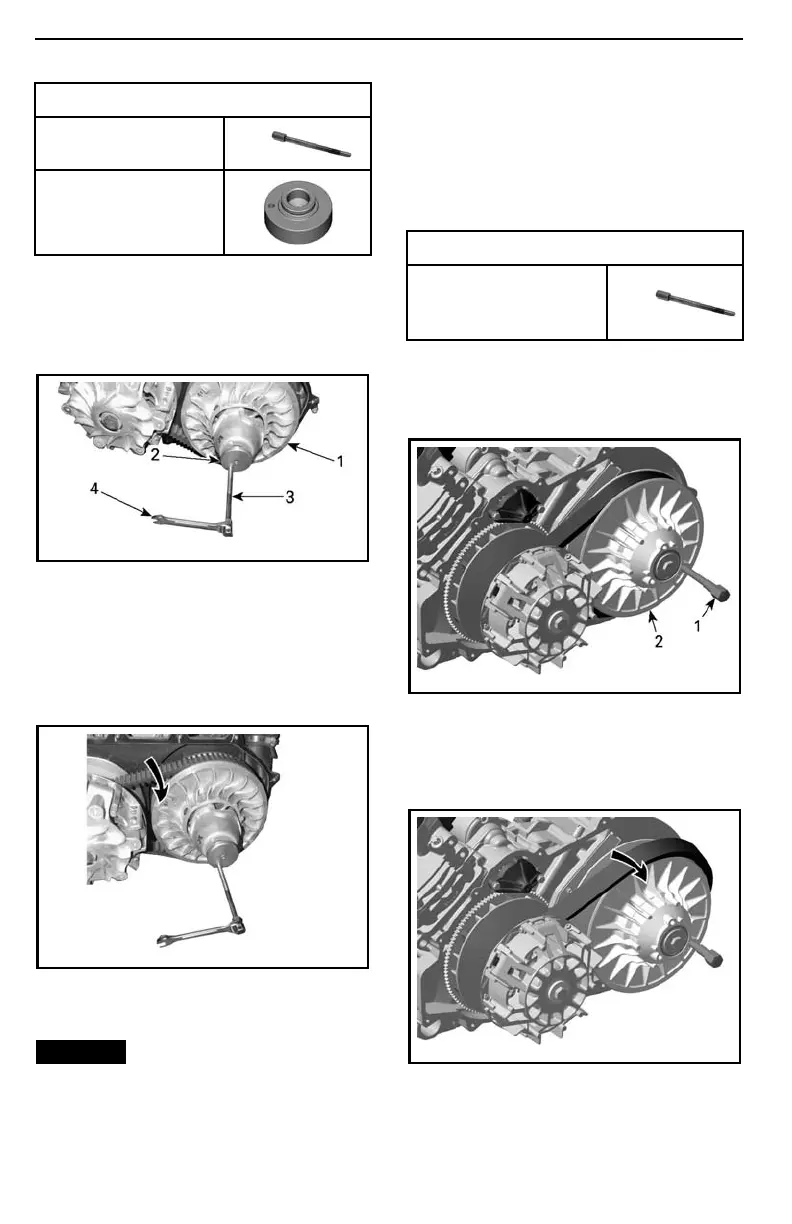

MAINTENANCE PROCEDURES
REQUIRED TOOLS
Puller/Locking tool
(P/N 52 9 000 072 )
Adaptor
(P/N 708 200 686)
Insert adaptor in threaded hole of
driven pulley then screw tool in the
threaded hole of a daptor and tighten to
open the pulley.
tmo2016-010-093_a
TYPICAL
1. Fixed sheave of driven pulley
2. Adapt o r
3. Puller/locking tool
4. Wrench
To remove belt, slip the belt over th e
top edg e of fixed sh eave, as shown.
tmo2016-010-094_a
TYPICAL
Drive Belt Removal (HD5)
NOTICE
In case of a drive belt fail-
ure, the CVT, cover and air outlet
must be cleaned.
Please refer to
TIPS FOR MAXI MIZ-
ING DRIVE BELT DURABILITY
in
BA-
SIC PROCEDURES
section for some
IMPORTANT information.
Remove
CVT COVER
.
Open driven pu lle y.
REQUIRED TOOL
PULLER/LOCKING
TOOL (P/N 529
036 098)
Screw tool in the threaded hole of
driven pulley and tighten to open the
pulley.
vmr2015-022-005_a
1. Puller/locking tool
2. Fixed sheave of driven pulley
To remove belt, slip the belt over th e
top edg e of fixed sh eave, as shown.
vmr2015-022-006_a
118
