9.3.2.6 Enumeration
With the enumeration widget you have the possibility to display numbers in text. So, you can display
error codes in plain text. For example, a "1" received via the Can Bus could be shown on the display
as "No errors deposited". A "2" received via the bus, on the other hand, could mean "engine
malfunction – check engine". A gear display can also be realized via this. For the corresponding
representation, a text must be assigned to each possible number.
Like all other widgets, you can adjust the position and size of the widget via x coord, y coord, x size
and y size. You can adjust the size of the displayed plain text via the font function. Here you can set
font sizes from 0-9, where 0 is the smallest and 9 is the largest. As with other widgets before, you can
set the font color via colour. In the following illustration, the enumeration widget is used to display
the states of the EGT alarm.

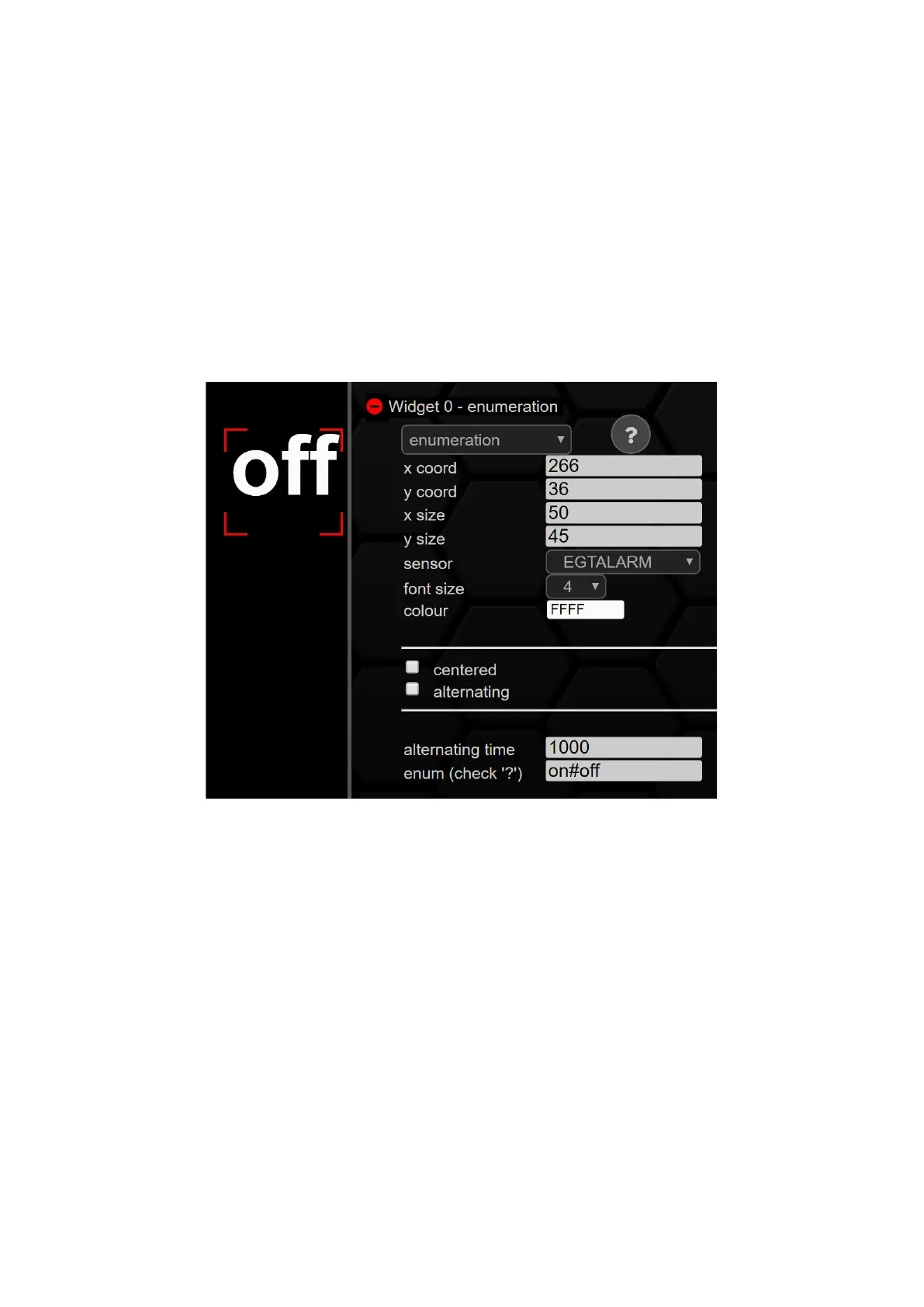

Figure 37: Configuration enumeration
The status is displayed right aligned by default, if the check mark is set at centered, the text is
displayed centered. The alternating function switches between the individual plain texts if several are
active at the same time. Alternating time determines the time to switch in milliseconds. In the enum
field, the corresponding plain texts can be entered with a hash as a separator. If no value is to be
displayed as an enumeration, a space must be set (State1# #State3).
