CAN CHECKED MFD28 Gen2 User Manual

Rev 1.0
57
9.3.2.19 rectangle
The rectangle, like the status rectangle, is adjustable in size, position and color (gradient). It is not
assignable to any sensor, so you can use it as a construction element for your pages. Due to the
variable size and position, this widget allows you to draw fine lines to spatially separate your ads. You
can also use it to create backgrounds for other ads. In the figure below, the rectangle was used to
sketch the maximum deflection of the vertical bar above.

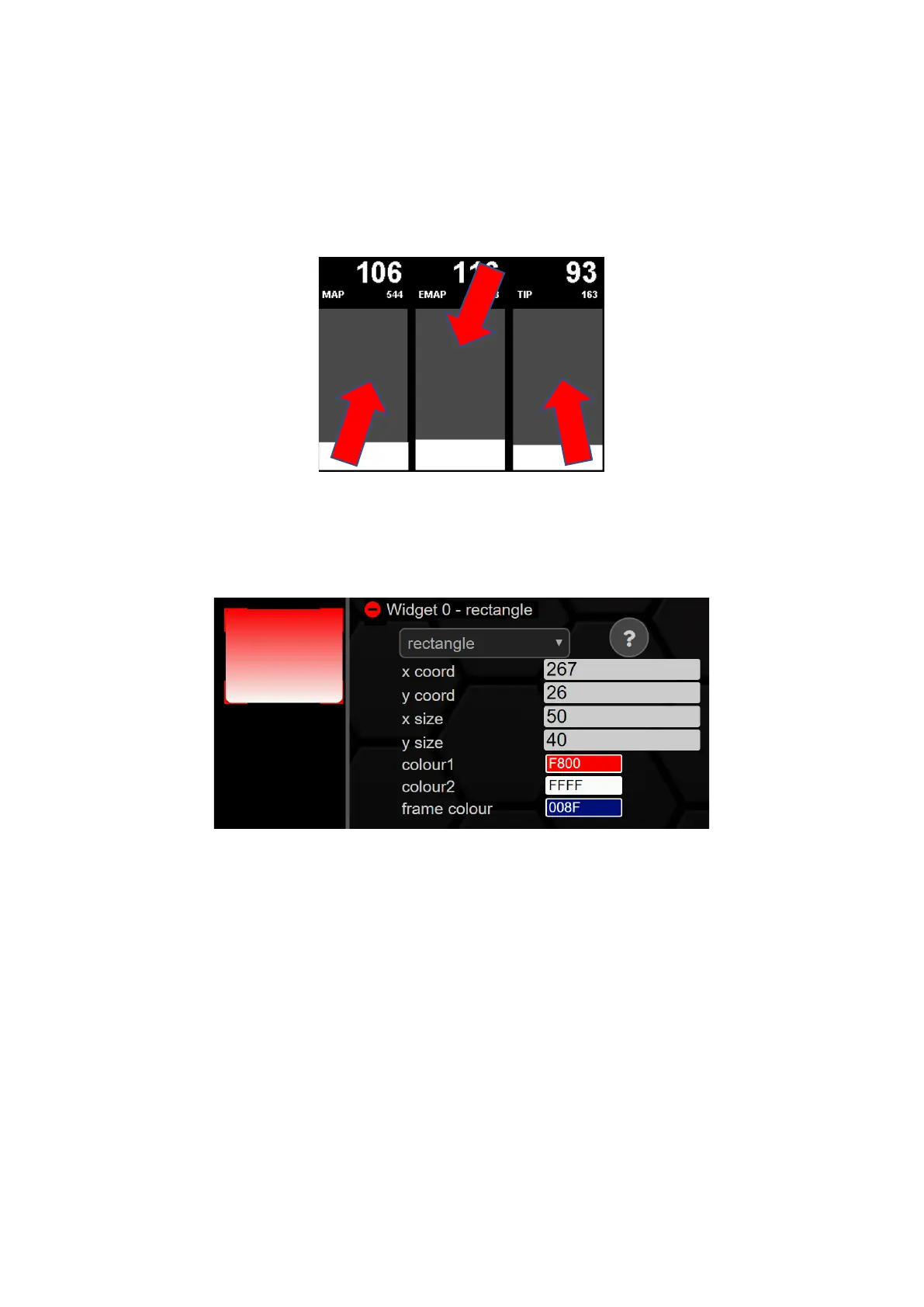

Figure 61: rectangle as background for the vertical bar
You can adjust this widget in position (x/y coord) and size (x/y size). Furthermore, you can use the
color wheel to color the rectangle, provide it with a gradient and determine the color of the frame
color.
Figure 62: Configuration rectangle
