9.3.2.8 sensor value
With the sensor value widget, you can display a sensor value as a simple number. The number of
decimal places is specified by the TRI/TRX file0

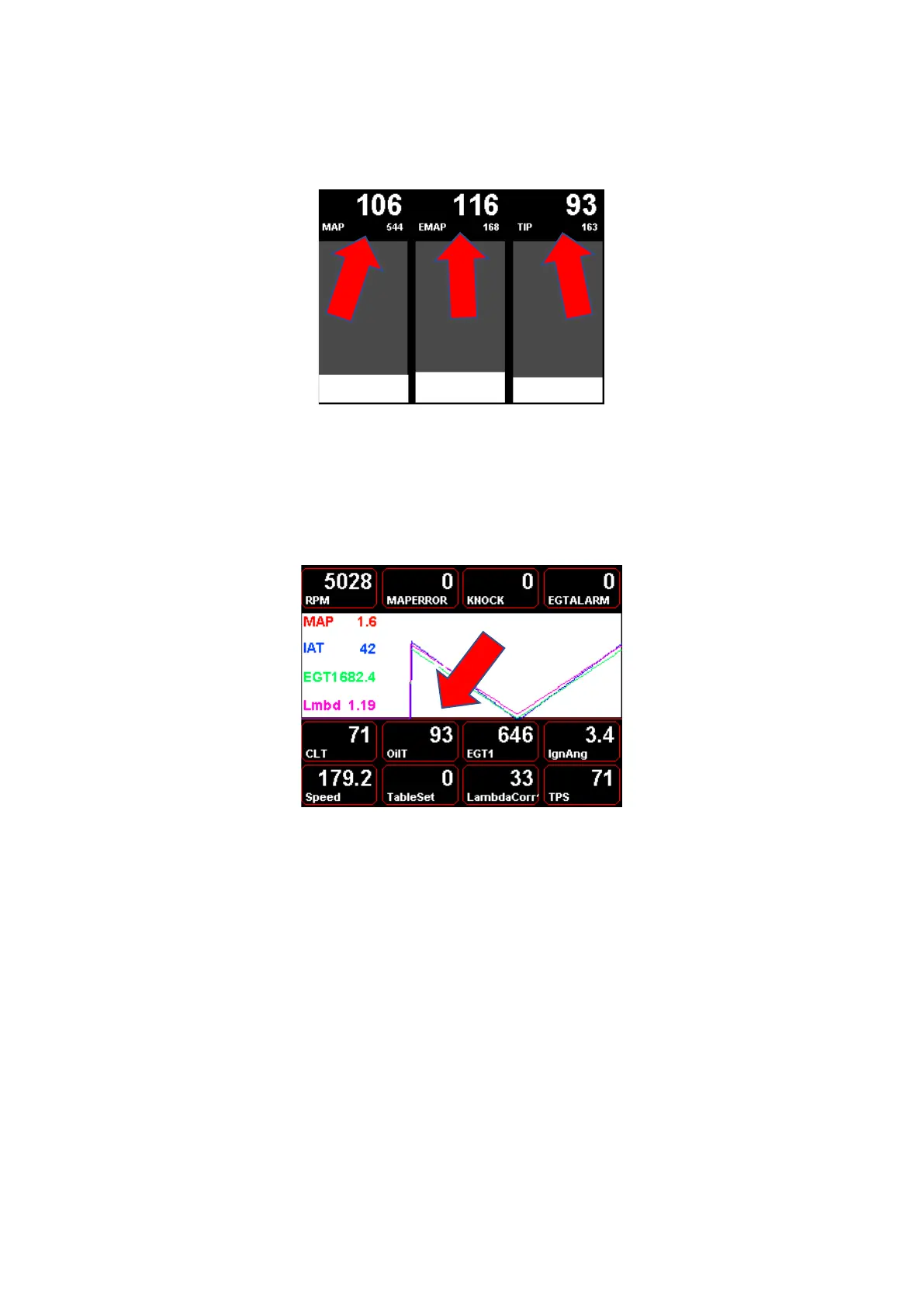

Figure 40: Display view for comparing pressures using the triple sensor value widget
If you like a frame around the widget better, you can also activate it and adjust its color. A
representation of the optics can be found below.
Exceeding the max value (red background) or falling below the min value (blue background) can also
be activated individually for the widget.
Figure 41: Display view of the sensor value widget with frame
You can adjust the numerical value in font, position, font colour, bg colour and frame colour. As with
the YT diagram, the background becomes transparent if the three colors have the same color.
The functions low warn colour and high warn colour refer to the min and max values from the
TRI/TRX file if the min or max value from the TRI/TRX file is below or exceeded, the entire box (x/y
size) of the sensor value colors in the color you selected.
