9.3.2.20 text field
With the text field widget, you can design your pages even better and create your own words or
sensor names on your pages. The text fields can be changed in position and size and the size and
color of the font is variable. No special characters may be used.
The text field can be configured as usual in position (x/y coord) and size (x/y size). A maximum of 32
characters is allowed per text field. Several text fields can be created per page.
In the example below, the background of the widget has been colored blue with the color wheel (bg
colour) and the color of the font (font colour) has been changed. As with the other widgets, the
background of text field becomes transparent if bg and font have the same color. Font size can be
used to adjust the size of the font. By default, the font is left-aligned within the field, if the
corresponding hooks are set, it can also be centered or right-aligned.

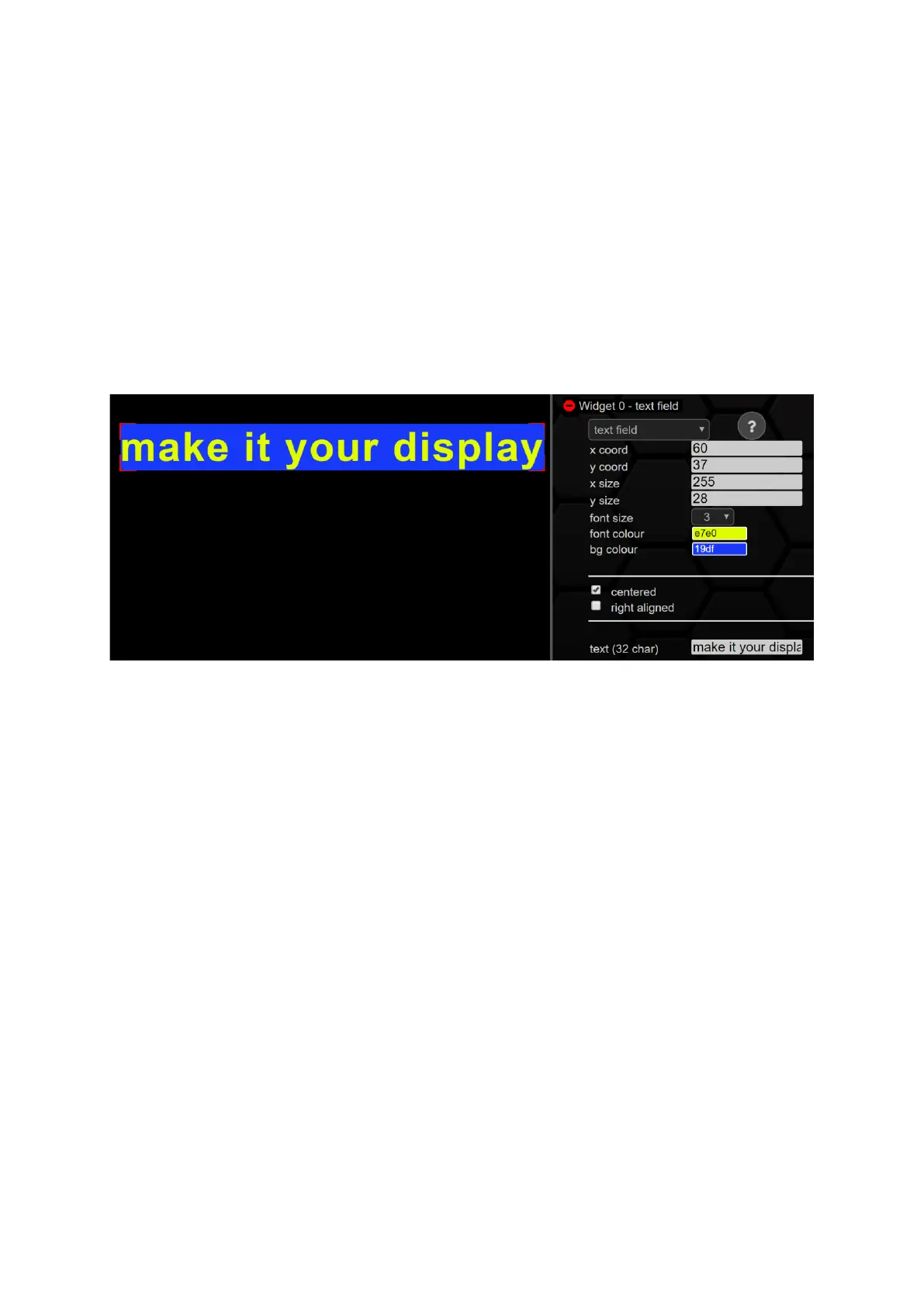

Figure 63: Configuration text field
