9.3.2.10 G-meter
The G-meter is a widget known from motorsport. The sphere shows you your longitudinal and lateral
accelerations (unit: G). In addition, the maximum lateral and longitudinal accelerations achieved can
also be displayed. Ideal for the next trackday to find the ideal line, just to improve your lap times or
verify your aeromods.

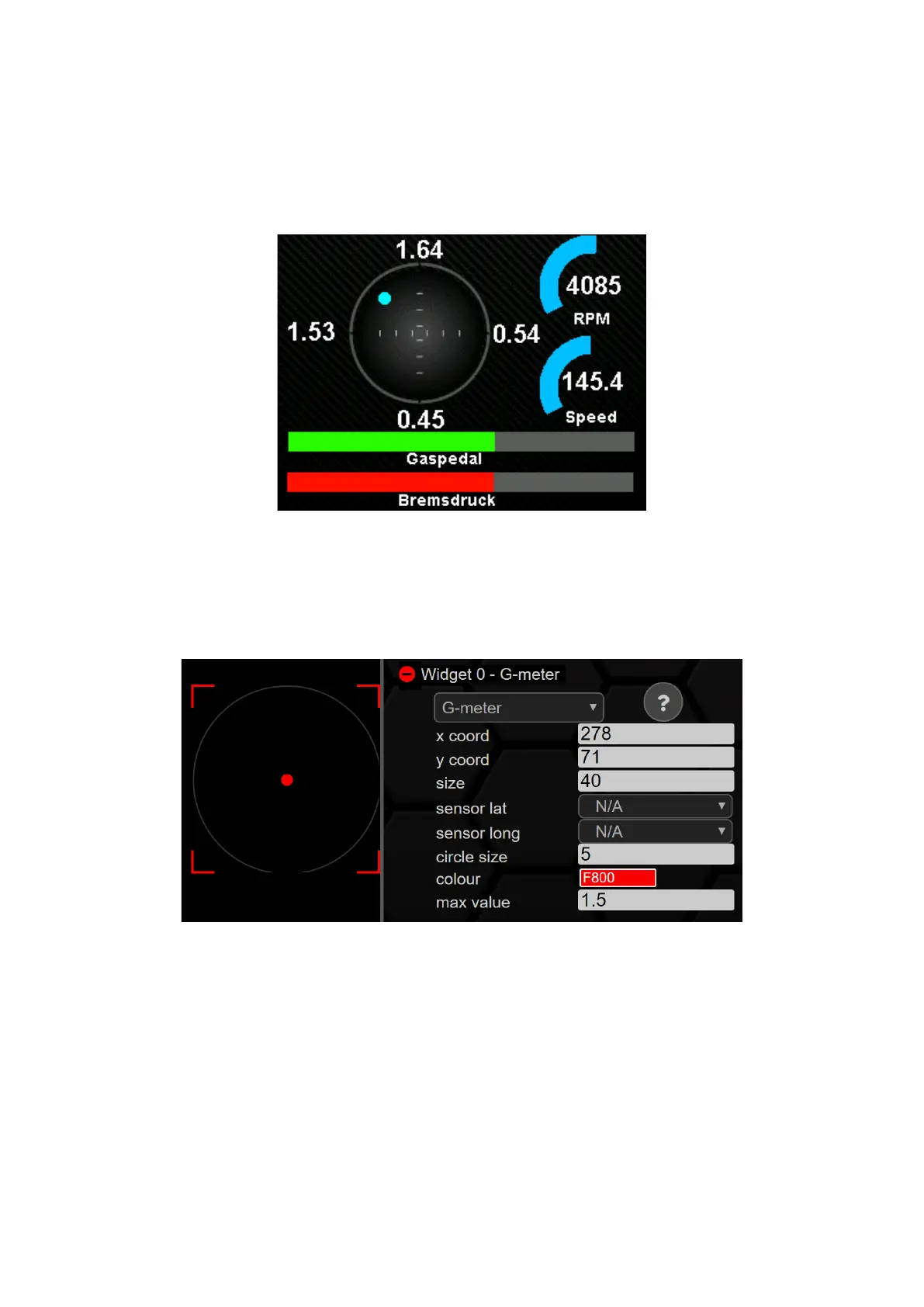

Figure 45: G-meter as predefined page
If your TRI/TRX file has the sensors for lateral and longitudinal acceleration, you can use the Gmeter.
With this widget you can display the acceleration/deceleration in the four spatial dimensions. The
widget can be changed in size and position (x/y size). In addition, the size (circle size) and color
(colour) of the point as well as the maximum value (max value) of the acceleration can be adjusted.
Figure 46: Configuration G-meter
