CAN CHECKED MFD28 Gen2 User Manual

Rev 1.0
67

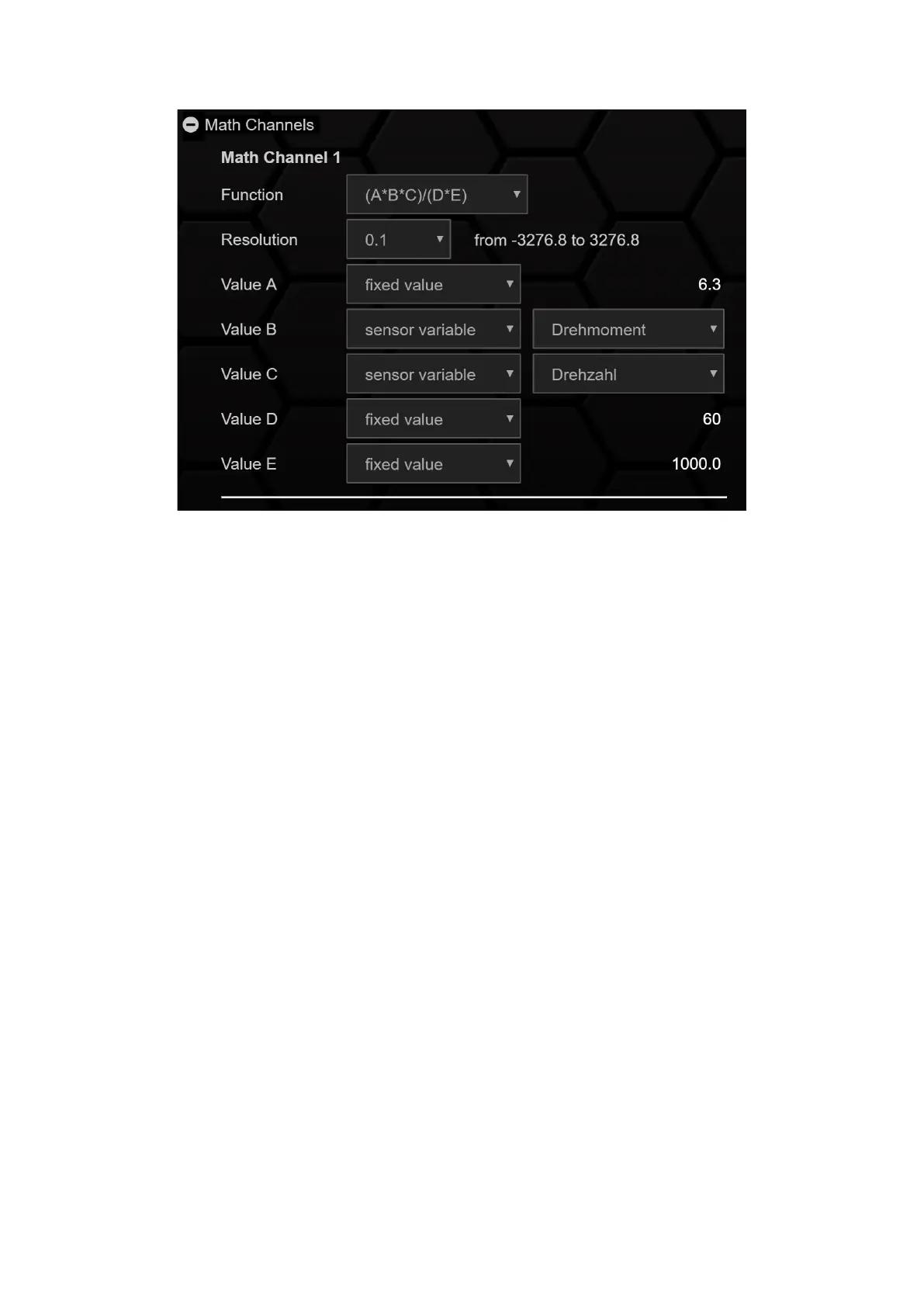

Figure 77: Math Channel
One decimal place is sufficient as a resolution here. Accordingly, a resolution of 0.1 is chosen. As in
the TRI Editor, the decimal separator is a period and not a comma!
From the drop-down menu, select the most suitable calculation template, assign the variable and
fixed values and click on the write to display button to transfer the newly created Math Channel to
your data display. In order to use the Math Channel as output, it must be created as an internal
sensor in the TRI editor.
9.5.10 Boost/PWM Control
In this menu the paid item Boost/PWM Control Addon can be configured. Although this function can
also be configured in DSS without purchasing a license, it only becomes active when the license key is
entered on the data display.
The (PWM) output can be controlled via the previously created User Table (Assign Usertable). The
frequency (Output Frequency) and the PWM signal (PMW output) can be defined. Furthermore, the
output can be inverted with the invert function.
