9.3.2.17 performance meter
You can use the form meter to test improvements to your vehicle on closed test tracks. The form
meter is active and measures as soon as you are on this page. The following (best) times are stored:
• 0-100
• 0-200
• 100-200
ATTENTION: The speed is determined by the rolling circumference of the tires of your vehicle and is
very accurate not GPS-based. A correction due to slope / gradient and tailwind or headwind does not
take place.
A representation of the form meter can be found in the figure below.

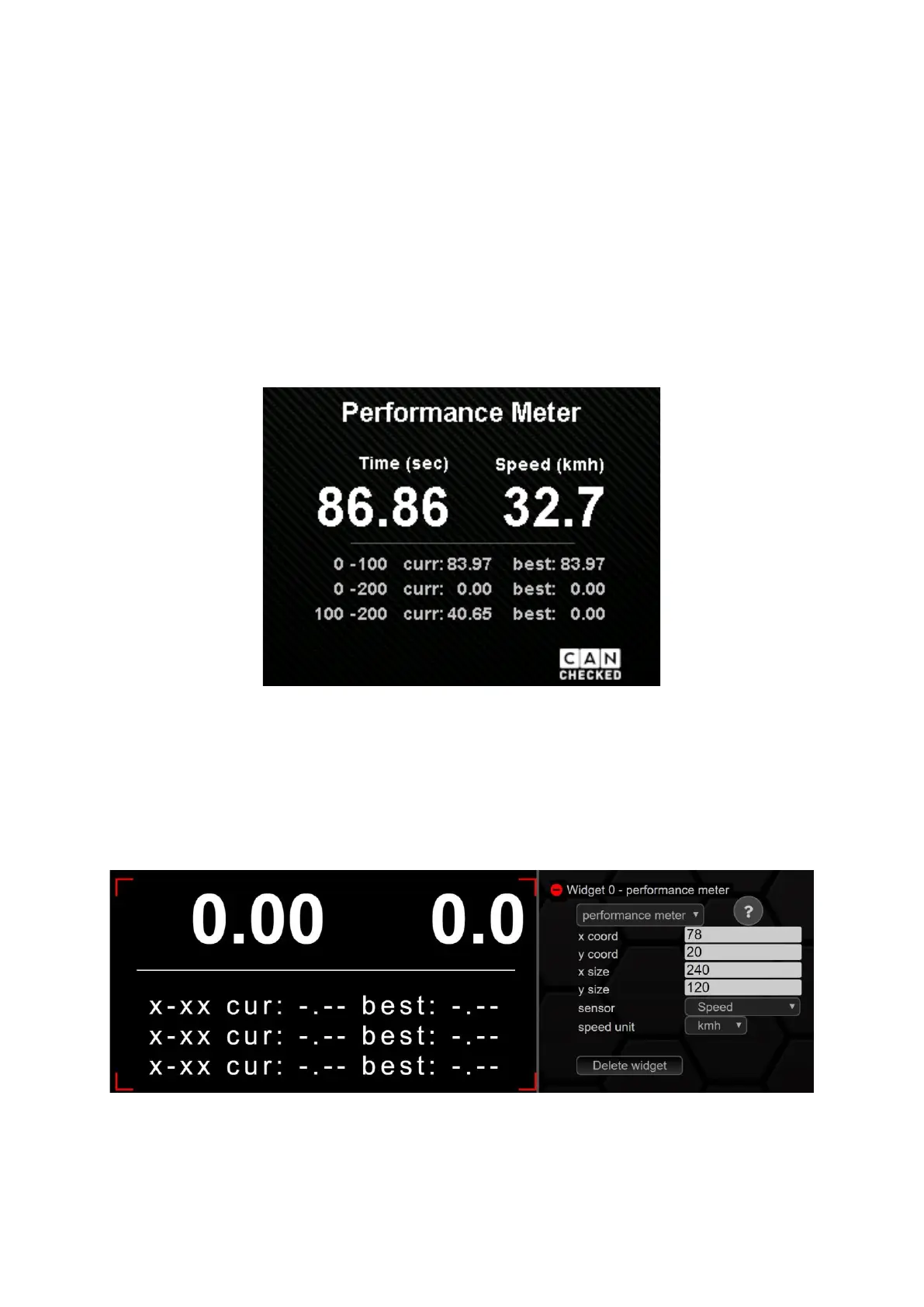

Figure 58: Display view of the performance meter
Like the other widgets, the performance meter is also customizable in size (x/y size) and position (x/y
coord). However, the size should not fall below a minimum size of 240x120 to ensure proper
representation.
Analogous to the other widgets, the corresponding sensor (in this case Speed) must also be assigned
here, and the units must be defined.
Figure 59: Configuration performance meter
