Rev 1.0

9.2 TRI Day

In the TRI Editor, all sensors of your data display can be found after the import. In addition to the

sensors that come as can messages on your display, you can also create and parameterize the four

analog inputs here.

Attention: When the display is fully set, the position of the sensors in the TRI/TRX file should not be

changed by deleting or moving, as this refers to the position of the sensors in the sensor init and on

the pages.

9.2.1 Handling

Below the tab overview you will find the buttons of the TRI Editor. The button is divided into five

sections.

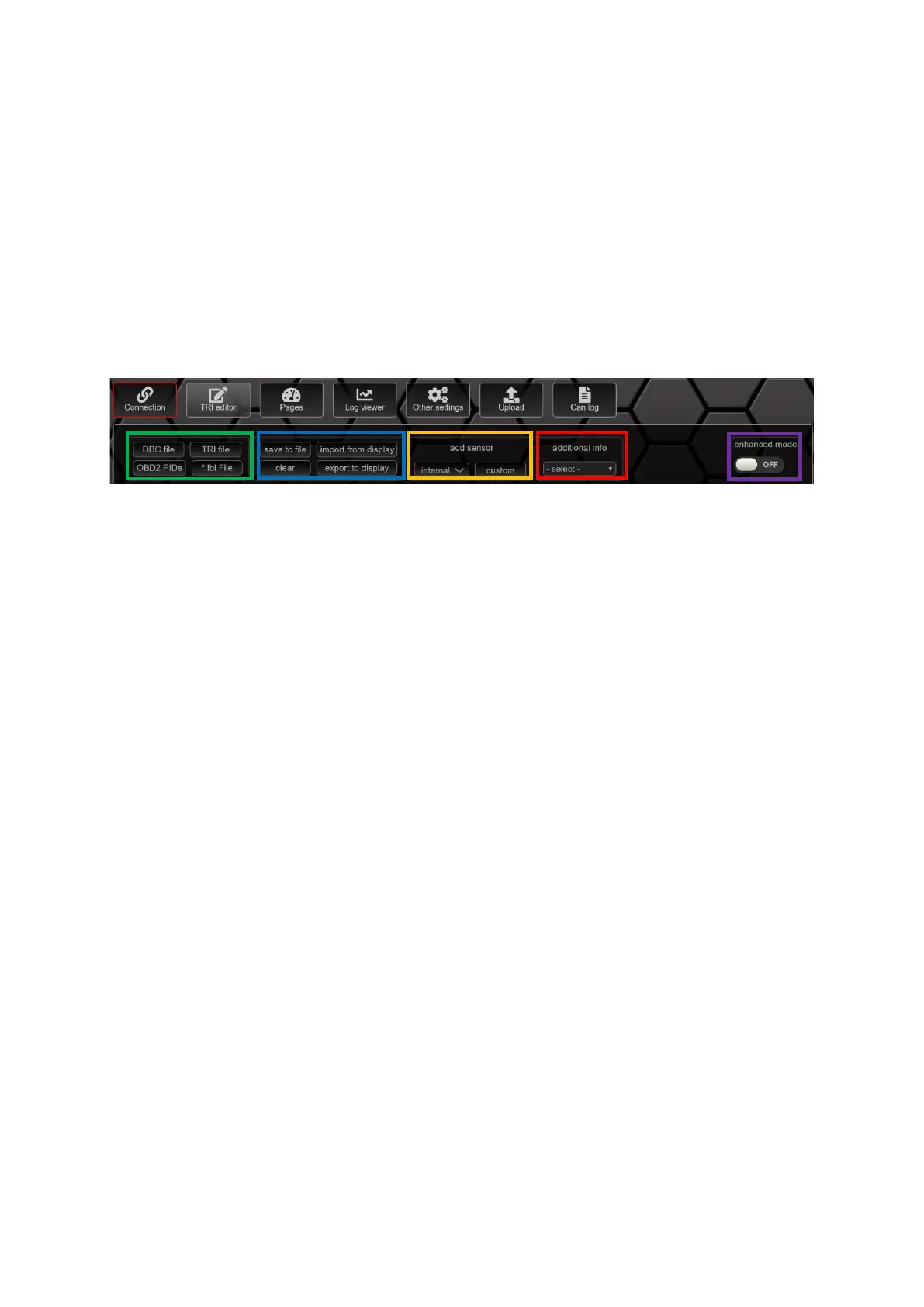

Figure 23: Buttons in the TRI editor

In the first area, you can import sensors from different data formats into the editor. Possible formats

are:

• DBC Files

• TRI Files

• OBD2 PIDs

• *.lbl Files

In the second area you will find the function buttons for saving the TRI file currently loaded in the TRI

Editor, the command to delete the sensors from the TRI Editor as well as the buttons for importing

and exporting the TRI file from or to your data display.

The third area can be used to add internal and custom sensors. The internal sensors include:

• AIN1

• AIN2

• AIN3

• AIN4

• AIN5 (only for MFD15 Gen2)

• AIN6 (only for MFD15 Gen2)

• displayVolt

• displayTemp

• PWMoutDuty

• GearCalc

• FreqIn1

• MathChannel1

• MathChannel2

• MathChannel3

• MathChannel4

• MathChannel5

• MathChannel6
