CAN CHECKED MFD28 Gen2 User Manual

Rev 1.0
70
10 AIN Setup (analog inputs)
Your display has 4 analog inputs with 10bit resolution (0-1023).
Already successfully tested and installed sensors as well as their characteristic curves and connection
diagrams can be found under www.canchecked.de/help/analoge-eingaenge-gen2/.

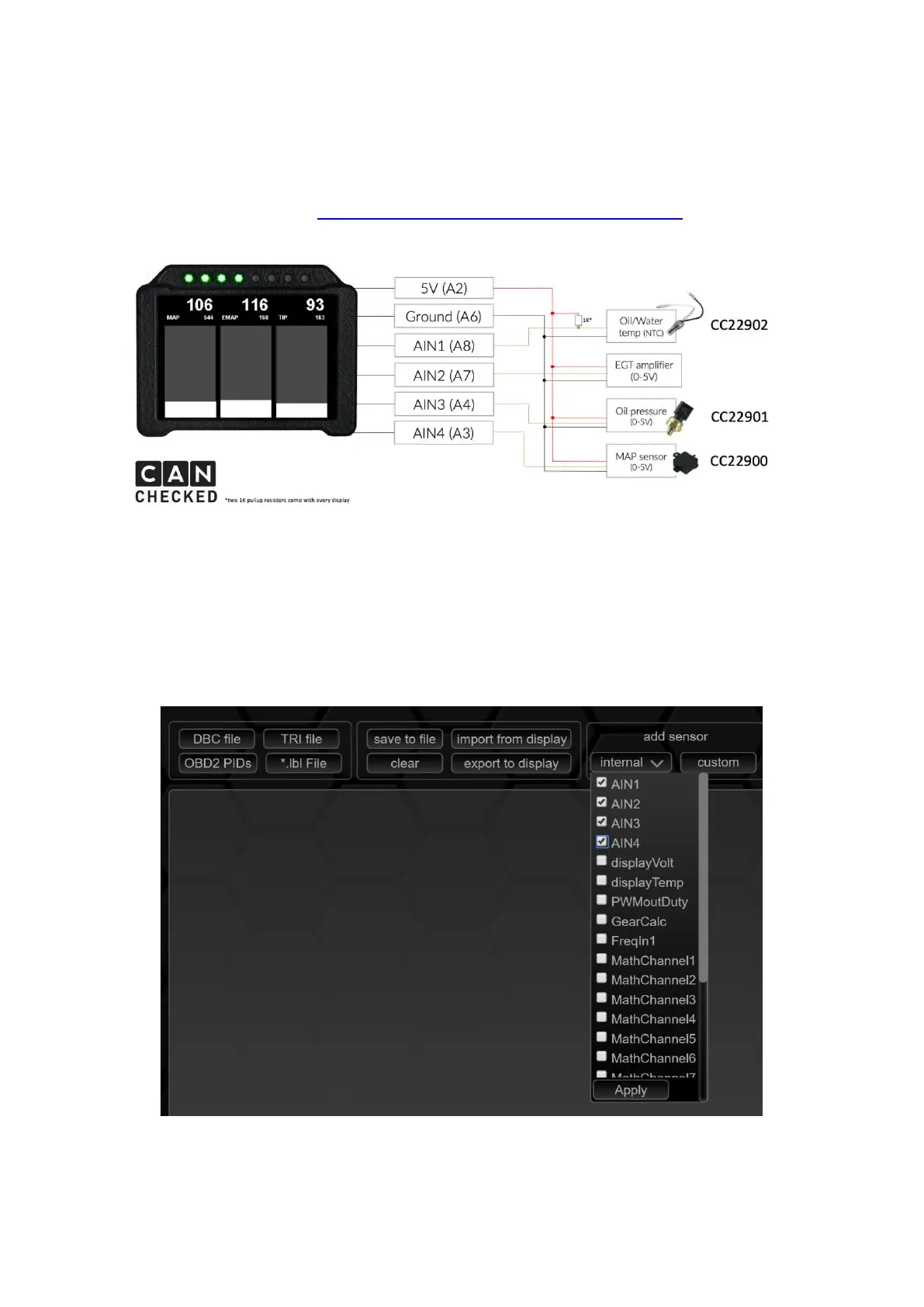

Figure 81: Connecting the AINs
The analog inputs are also set up via the DSS. If your TRI/TRX file does not yet have a sensor for an
analog input, you can add it to your TRI/TRX file as described in chapter 9.2 via the add sensor-
internal button by selecting the corresponding AIN(s), scrolling down and clicking on Apply button.
Now you have to activate the enhanced mode in the upper right corner (see chapter 9.2.2) and can
then configure the sensor by clicking on the corresponding AIN. You can change the name, adjust the
attenuation, choose the type of mapper and of course activate the analog input.
Figure 82Adding AINs
The mapper can be set to three different options:
