Canon imagePROGRAF iPF605 - Installing the Roll Feed Unit

Handling rolls
Installing the Roll Feed Unit
Important
• Always make sure the printer is of f before attaching the Roll Feed Unit .

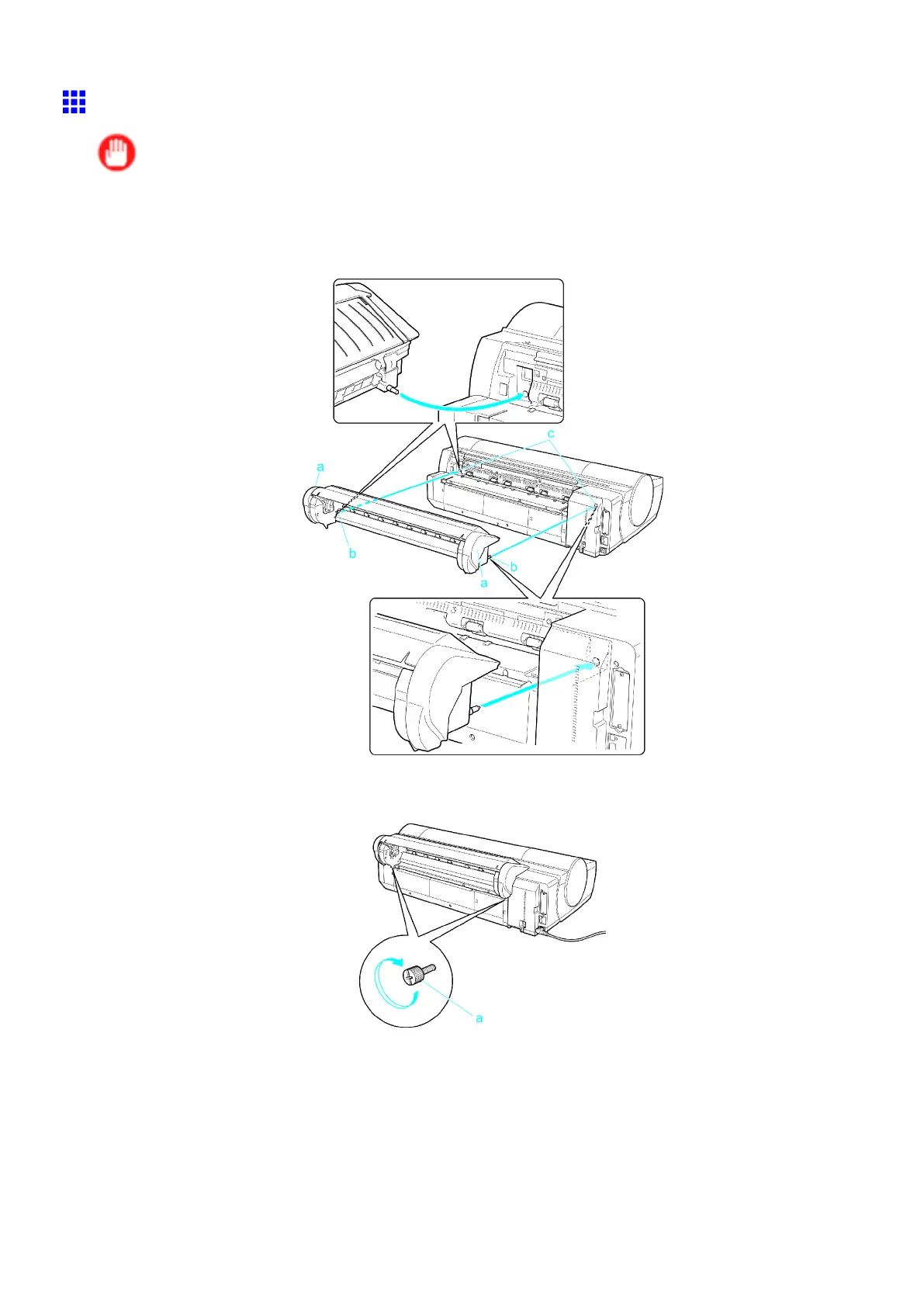

1. Holding the Roll Feed Unit by the Carrying Handles (a), insert the two pins of the Roll Feed Unit
(b) into the each hole on the back of the printer (c).
2. Use a coin or screwdriver to tighten the two screws on the back of the Roll Feed Unit (a)
to secure it to the printer .
140 Handling Paper
