Printer parts
Printer Parts
Printer parts

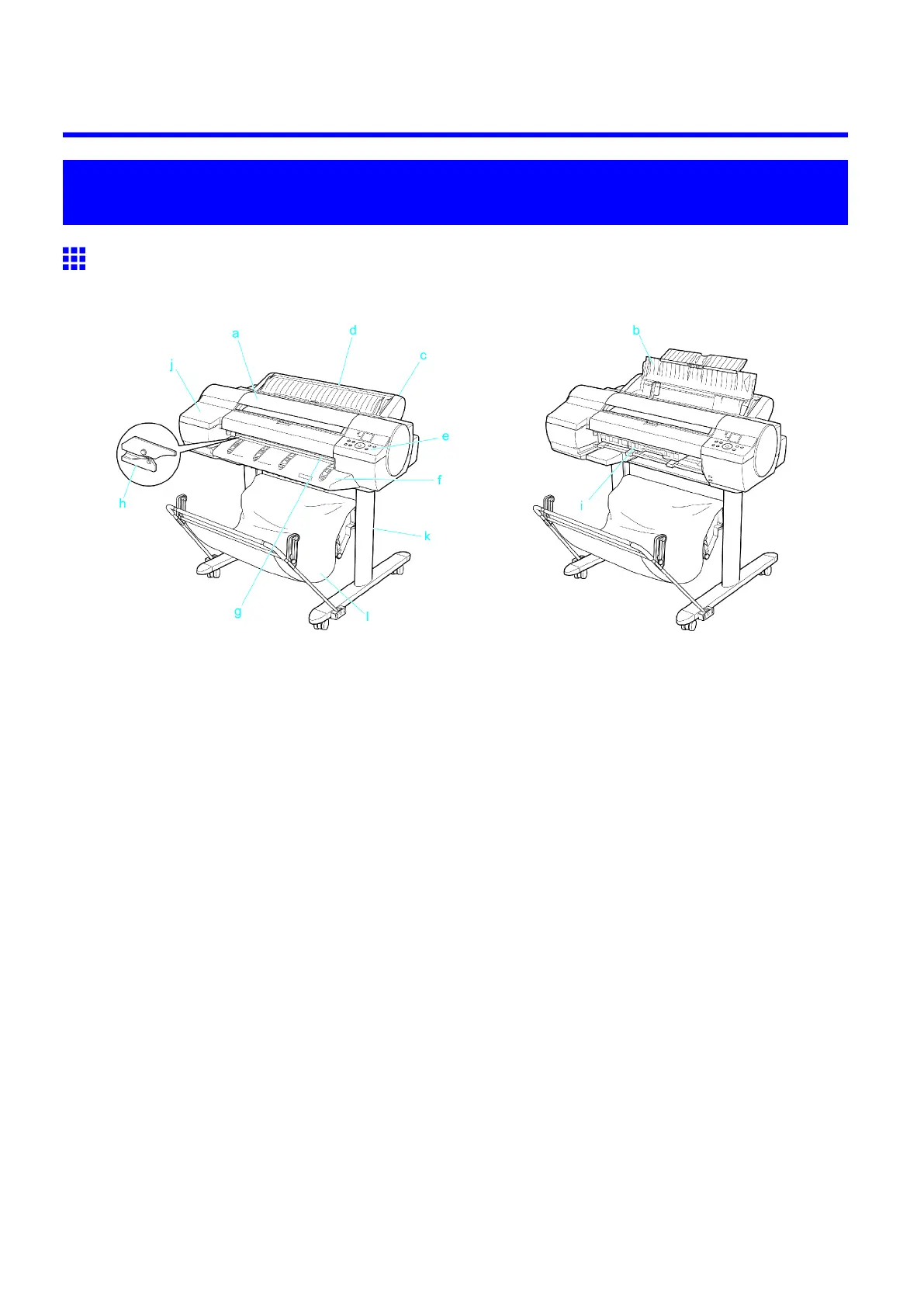

Front
Standard
When the Ejection Guide is removed
a. T op Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer , as
needed. ( → P .16)
b. Paper T ray Cover
Open this cover to load sheets in the T op Paper Feed Slot . ( → P .17)
c. Roll Feed Unit
Load rolls in this unit. Y ou can also load sheets in this unit manually .
d. Roll Feed Unit Cover
Open this cover to load rolls. ( → P .18)
e. Control Panel
Use this panel to operate the printer and check the printer status. ( → P .21)
f. Ejection Guide
Supports paper as it is ejected to prevent it from rising.
g. Output T ray ( Front Paper Feed Slot )
All printed documents are ejected to the output tray . Also, use this slot when loading heavyweight
paper . ( → P .17)
h. Cutter Unit
A round-bladed cutter for automatic cutting of roll paper . The cutter is retracted inside when not cutting.
i. Maintenance Cartridge
Absorbs excess ink.
Printer Parts 13

Canon imagePROGRAF iPF605 Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Interface	USB 2.0, Ethernet
Type	Large Format Printer
RAM Installed (Max)	256 MB
Ink Colors	Cyan, Magenta, Yellow, Black, Matte Black
Ink Droplet Size	4 picoliters
Operating Systems	Windows, Mac OS
Media Thickness	0.07 mm to 0.8 mm
Media Types	Plain Paper, Coated Paper, Proofing Paper
