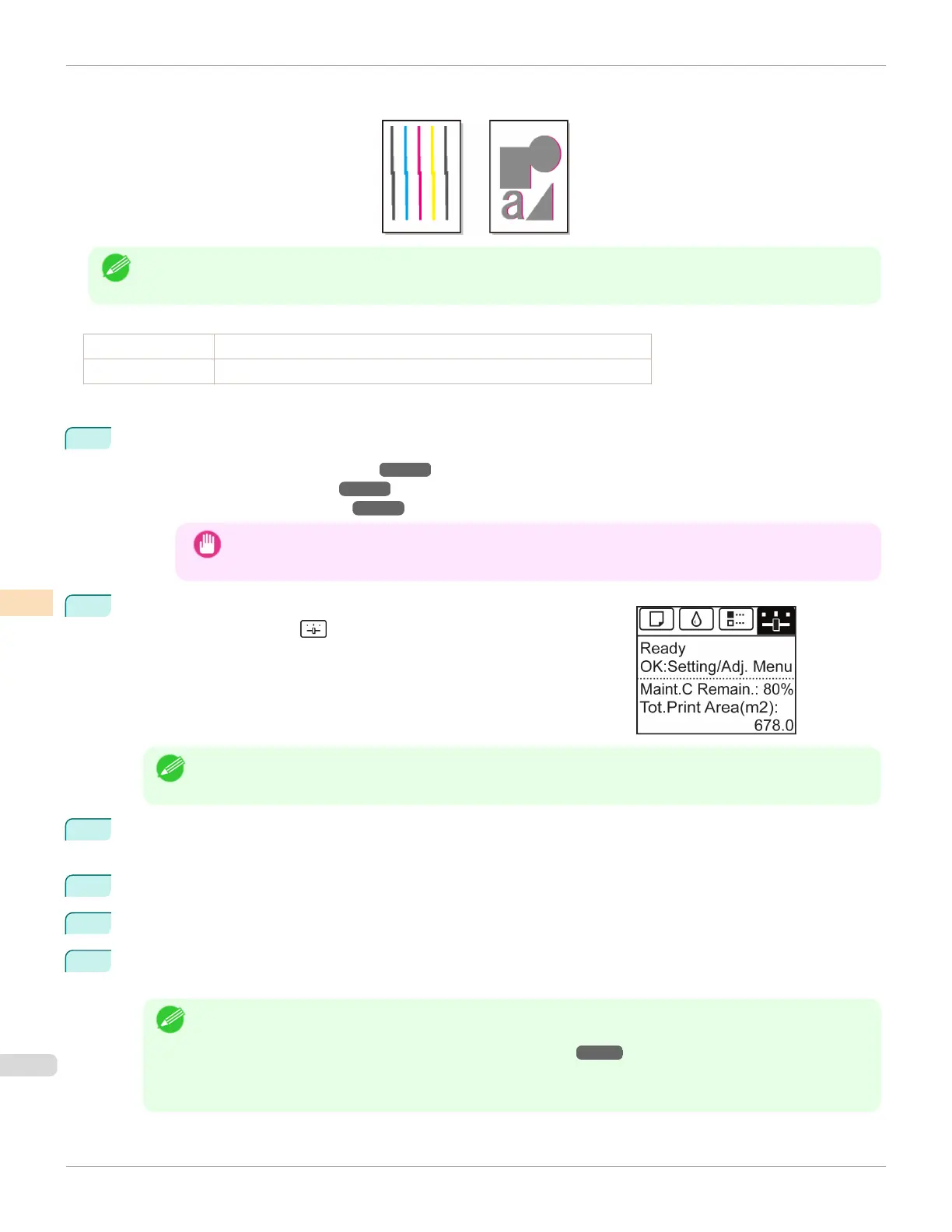

Canon imagePROGRAF iPF680 User Manual

However, when printing on special paper, or if printing is not improved after Standard, try Manual.
Manual adjustment requires you to examine the printed test pattern and enter an adjustment value.
Note
• We recommend using the type of paper you use most often for adjustment.
Items to Prepare
When Using Rolls An unused roll at least 254.0 mm (10.00 in) wide
When Using Sheets Two sheets of unused paper, A4/Letter size (or one sheet when using A2)
Perform adjustment as follows.
1
Load paper.
• Attaching the Roll Holder to Rolls ➔ P.370
• Loading Rolls in the Printer ➔ P.373
• Loading Sheets in the Printer ➔ P.392
Important
• Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
2
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to se-
lect the Settings/Adj. tab ( ).
Note
• If the Tab Selection screen is not displayed, press the Menu button.
3 Press the OK button.
The Set./Adj. Menu is displayed.
4
Press ▲ or ▼ to select Adjust Printer, and then press the OK button.
5
Press ▲ or ▼ to select Head Posi. Adj., and then press the OK button.
6
Press ▲ or ▼ to select Manual, and then press the OK button.
A test pattern is printed for adjustment.
Note
• Manual may be unavailable in some cases, even if it is displayed in the menu.
If so, execute Standard once.
(See "Automatic Adjustment to Straighten Lines and Colors.") ➔ P.524
• If you printed on cut sheets, follow the instructions on the Display Screen and use another sheet of the same
type of paper.
Manual Adjustment to Straighten Lines and Colors iPF680
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
526
