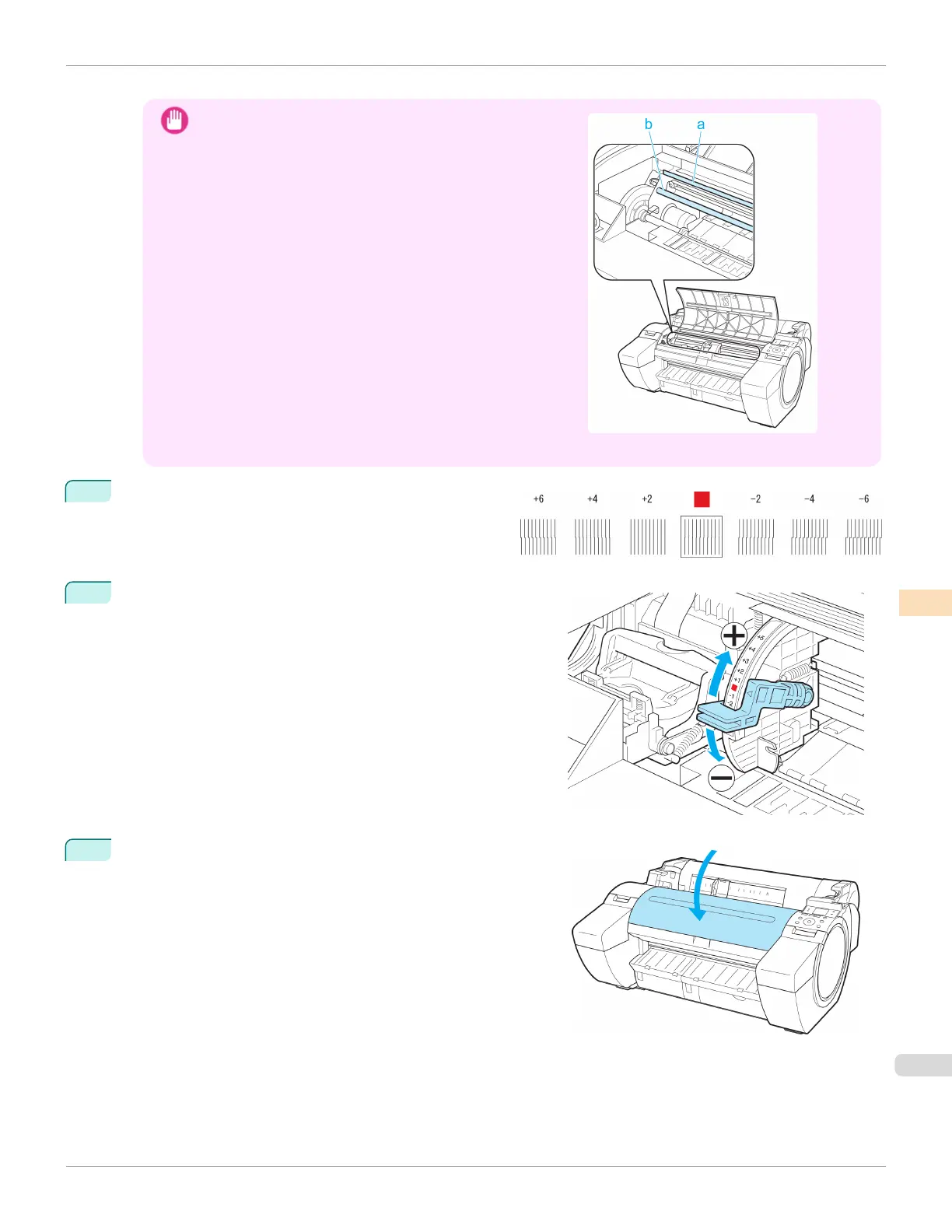

Canon imagePROGRAF iPF680 User Manual

A test pattern is printed for adjustment.
Important
•
Do not touch the Linear Scale (a) or Carriage Shaft (b).
Touching these parts may damage them.
• If you accidentally move the Carriage, you will hear a warning tone. In this case, close the Top Cover.
8
Examine the test pattern for adjustment. Determine the
straightest set of lines.
9
Open the Top Cover and move the Angle Adjustment Lever to
match the number (or the square) of the straightest set of lines.
If no single set of lines is perfectly straight, move the Angle Ad-
justment Lever to a position between the numbers (or between
the number and the square) of the two sets of lines that are
least misaligned.
10
Close the Top Cover.
The Printhead is now straight, and adjustment is complete.
iPF680 Adjusting Line Misalignment
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
529

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
