Chapter 7
7-30

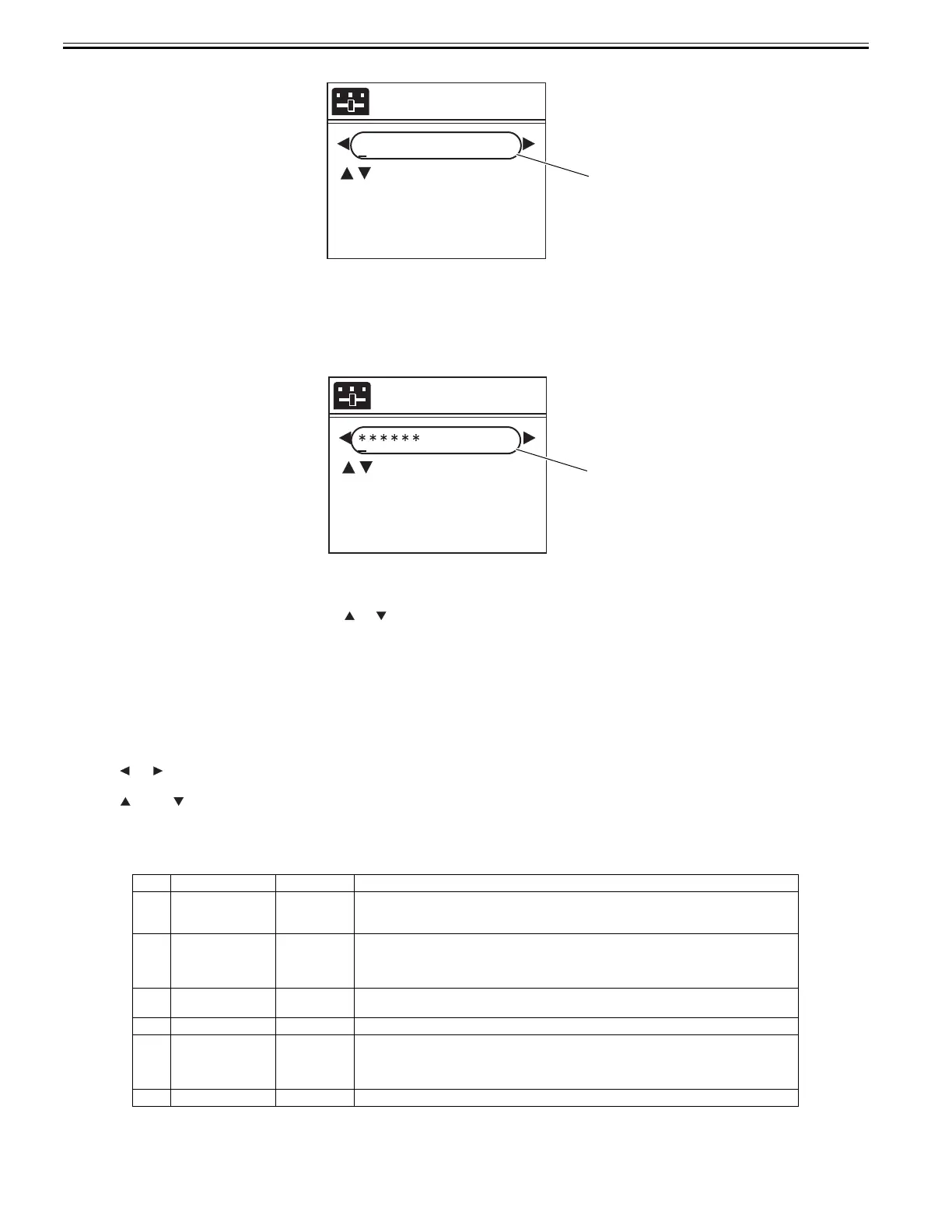

(3) How to enter user name
F-7-27
- It is the same as the entering method of proxy server address.
(4) How to enter password
F-7-28
- If a password has already been set, when you press the or key at any cursor position, all the "*" will disappear and the first letter will be entered as the first
character.
- Entered characters are visible until you press OK key. Once entering into the menu again, they will be changed to "*".
- Other information is the same as the entering method of proxy server address.
3.2 e-RDS settings
1) Enter the service mode.
- Turn off the printer power.
- Turn on the power while pressing the [Load] key and [Navigate] key.
* Keep pressing the above keys until "Initializing" is displayed.
- "S" appears at the top right of the display.
- Press the or key to choose the [Set./Adj. Menu]and press the [OK] key.
* "SERVICE MODE" appears in the menu list and the MESSAGE LED flashes.
- Press the key or key to choose "SERVICE MODE" and press the [OK] key.
2) Set the following e-RDS setting items No.1-4.
(If the result of the communication test (COM-TEST) is "NG", execute setting items No.5-6 to solve the problem.)
[1] Entry filed (24 one-byte characters)
[1] Entry filed (24 one-byte characters)
No. Item Type Description
1 E-RDS SWITCH 2 bytes OFF : Disable/ ON : Enable e-Maintenance/ imageWARE Remote system to send device information,
meter data, and error statuses to the UGW.
Default value is OFF (not in use)
2 UGW-ADDRESS 129 bytes
(NULL
included, SJIS
not allowed)
The UGW address by default : https://a01---.
The complete address is not provided in this document for security reason.
3 UGW-PORT 4 bytes The UGW Port Number by default : 443
Validation : 1-65535
4 COM-TEST To perform Communication test with UGW and set "OK!"/ "NG!" as the result.
5 COM-LOG Detailed communication data log
Switches to display time when error occurred, error code, and error data up to now.
Max 30 loggings retained.
Max 128 characters (not containing NULL) for Error information.
6 ERDS-DAT Initialize e-RDS setting data
Proxy User
User Name Canon
[a]
: S e l e c t
S t o p : D e l e t e
N a v i : a -> A -> 1
[ O K : S e t ]
[1]
Proxy Password
[a]
: S e l e c t
S t o p : D e l e t e
N a v i : a -> A -> 1
[ OK : S e t ]
[1]
