Handling rolls

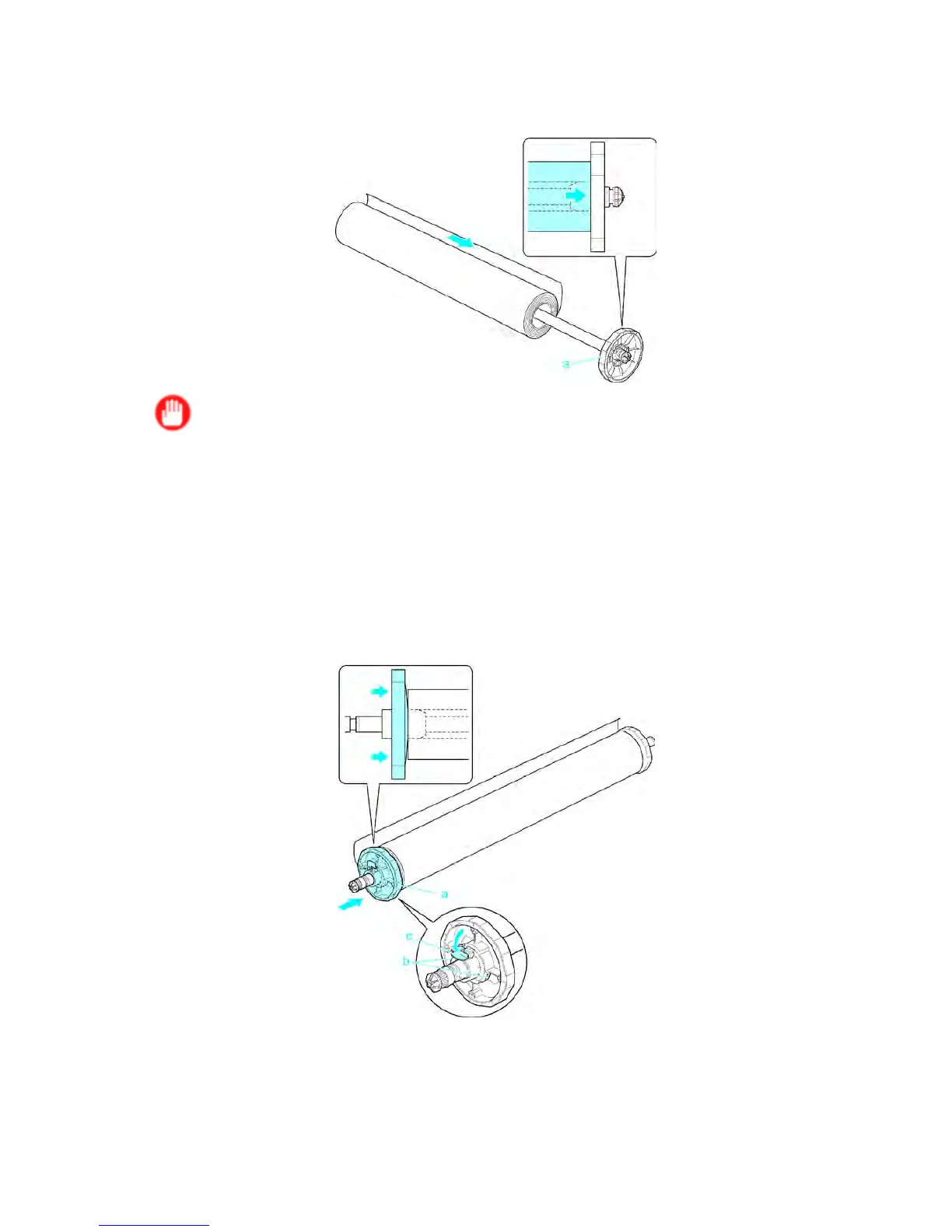

2. With the edge of the roll paper facing forward as shown, insert the roll in the Roll Holder from the
left. Insert the roll rmly until it touches the ange (a) of the Roll Holder .
Important
• Insert the roll rmly so that there is no gap between the roll and the ange of the Roll Holder . If
there is a gap, it may cause feeding problems.
• Set the roll on a table or other at surface so that it does not roll or fall. Rolls are heavy , and dropping
a roll may cause injury .
• When setting a roll, be careful to avoid hitting the roll holder ange hard with the roll. This may
damage the Roll Holder .
3. Insert the Holder Stopper from the left in the Roll Holder as shown. Holding it at the position
shown (b), push it rmly in until the ange (a) of the Holder Stopper touches the roll. Lock the
Holder Stopper lever (c) by pushing it down toward the shaft side.
178 Handling Paper
