Printer parts

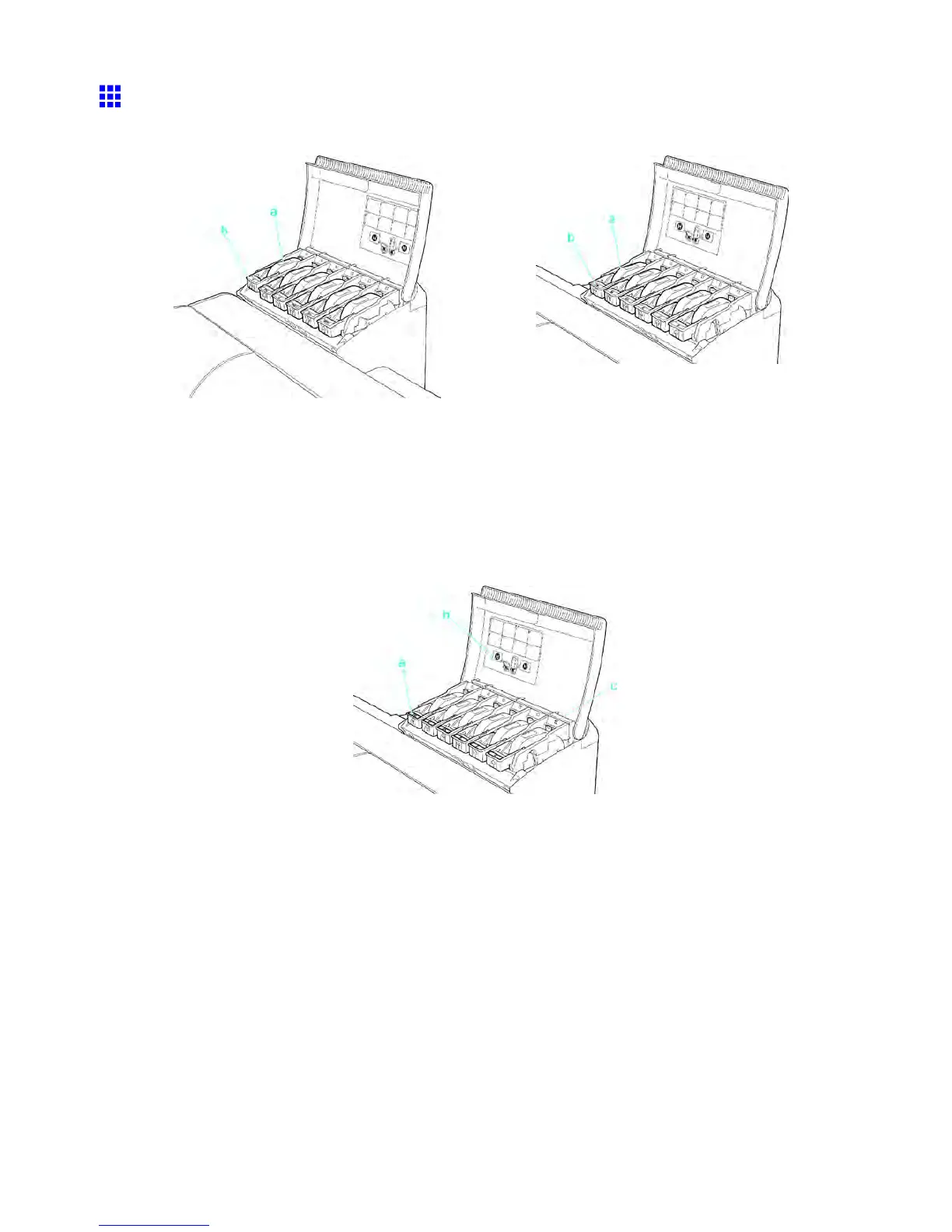

Ink T ank Cover (Inside)
Left Side
Right Side
Note: The gure shows the printer as loaded with 700 ml (23.7 oz) Ink T ank .
a. Ink T ank
Cartridges of ink in each color .
b. Ink T ank Lock Lever
A lever that locks the Ink T ank in place and protects it. Lift and press down the lever when replacing an
Ink T ank . T o open it, lift the stopper of the lever until it stops, and then push it down toward the front.
T o close it, push it down until it clicks into place.
a. Ink Color Label
Load an Ink T ank that matches the color and name on this label.
12 Printer Parts
