Printer parts

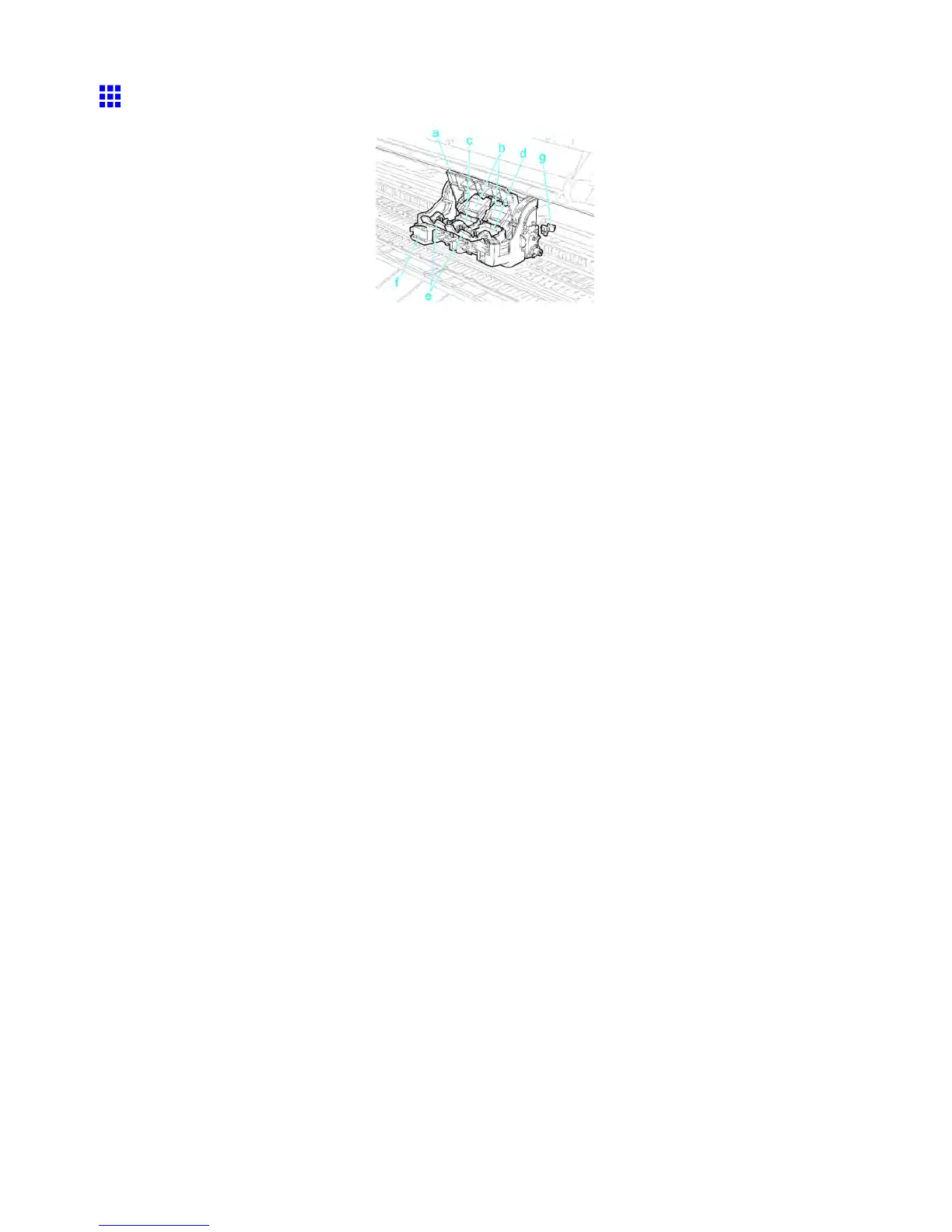

Carriage
a. Carriage Cover
Protects the Carriage .
b. Printhead Fixer Cover
Holds the Printhead in place.
c. Printhead L
Equipped with ink nozzles. Printheads serve a key role in printing.
d. Printhead R
Equipped with ink nozzles. Printheads serve a key role in printing.
e. Printhead Fixer Lever
Locks the Printhead Fixer Cover .
f. Cutter Unit
A round-bladed cutter for automatic paper cutting. The cutter blade is retracted inside when not
cutting.
g. Shaft Cleaner
Prevents the Carriage Shaft from becoming dirty .
