Media take-up unit

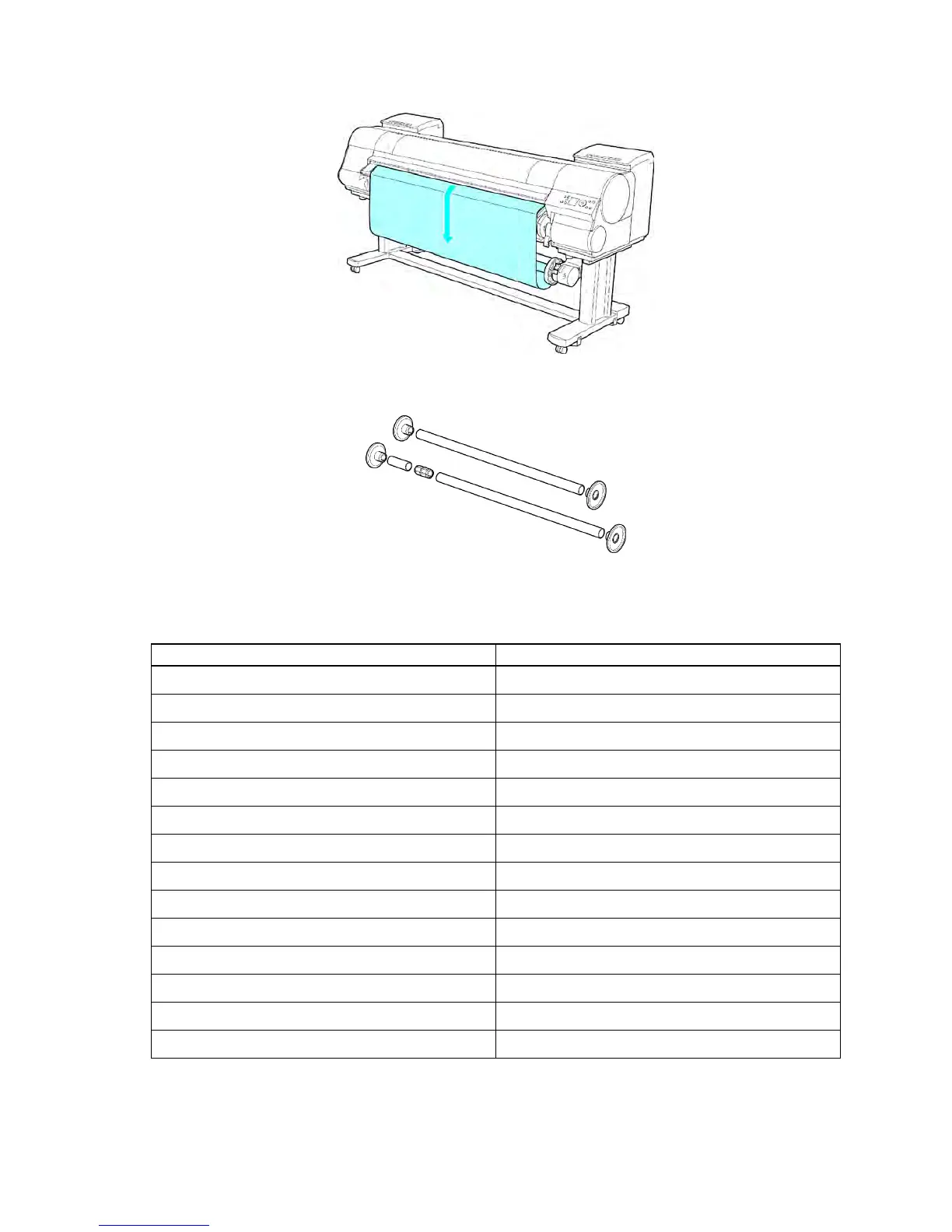

14. Y ou can unwind rolls by holding down ▼ on the Control Panel.
15. Use a combination of W eight Roll , W eight Joint , and W eight Flange that matches the roll type
and width.
The following list identies W eight Roll and W eight Flange you can use. Color Label is applied
to each W eight Roll .
W eight Roll
Roll W idth
W eight Roll to Use
B2 Width: 515.0 mm (20.3 in) “D”
B1 Width: 728.0 mm (28.7 in) “A” + “E”
B0 Width: 1,030.0 mm (40.6 in) “A” + “G”
A1 Width: 594.0 mm (23.4 in) “E”
A0 Width: 841.0 mm (33.1 in) “B” + “E”
431.8 mm (17 in) “C”
609.6 mm (24 in) “E”
762.0 mm (30 in) “B” + “D”
914.4 mm (36 in) “G”
1,066.8 mm (42 in) “C” + “E”
1,1 17.6 mm (44 in) “D” + “E”
1,270.0 mm (50 in) “D” + “F”
1,371.6 mm (54 in) “E” + “F”
1,524.0 mm (60 in) “E” + “G”
234 Handling Paper
