Parts Replacement and Cleaning > List of Parts > List of Clutches
Parts Replacement and Cleaning > List of Parts > List of Clutches
List of Clutches
CL1
CL2
CL3

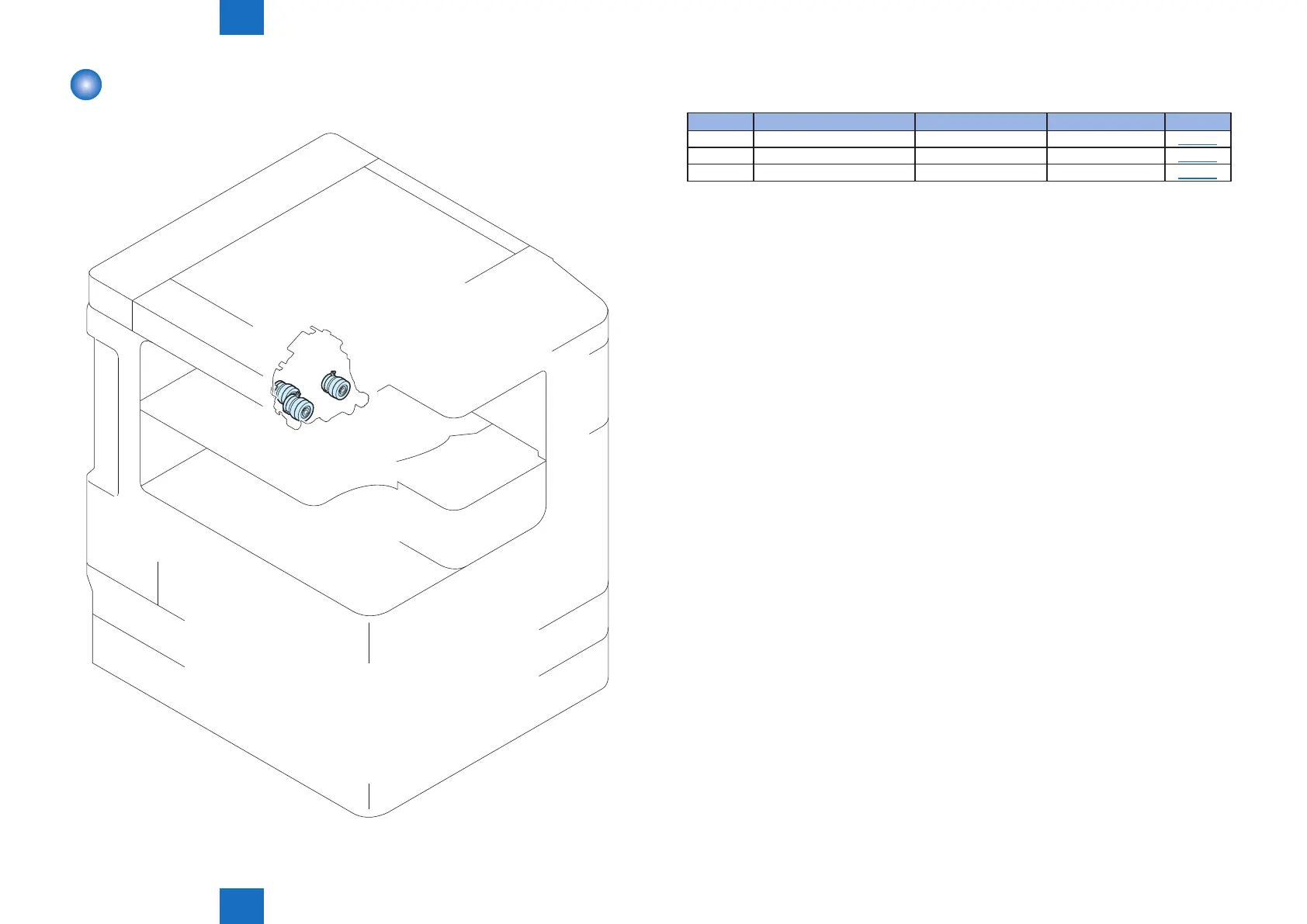

F-4-1
1
Symbol
Part name
Main unit
Part number
Reference
CL1
Registration Clutch
-
FK2-9154
p. 4-62
CL2
Manual Feed Pickup Clutch
-
FK2-9154
p. 4-62
CL3
Developing Cylinder Clutch
-
FK2-9154
p. 4-62
T
-4-10
119
121
