Product Overview > Name of Parts > Cross Sectional View
Product Overview > Name of Parts > Cross Sectional View

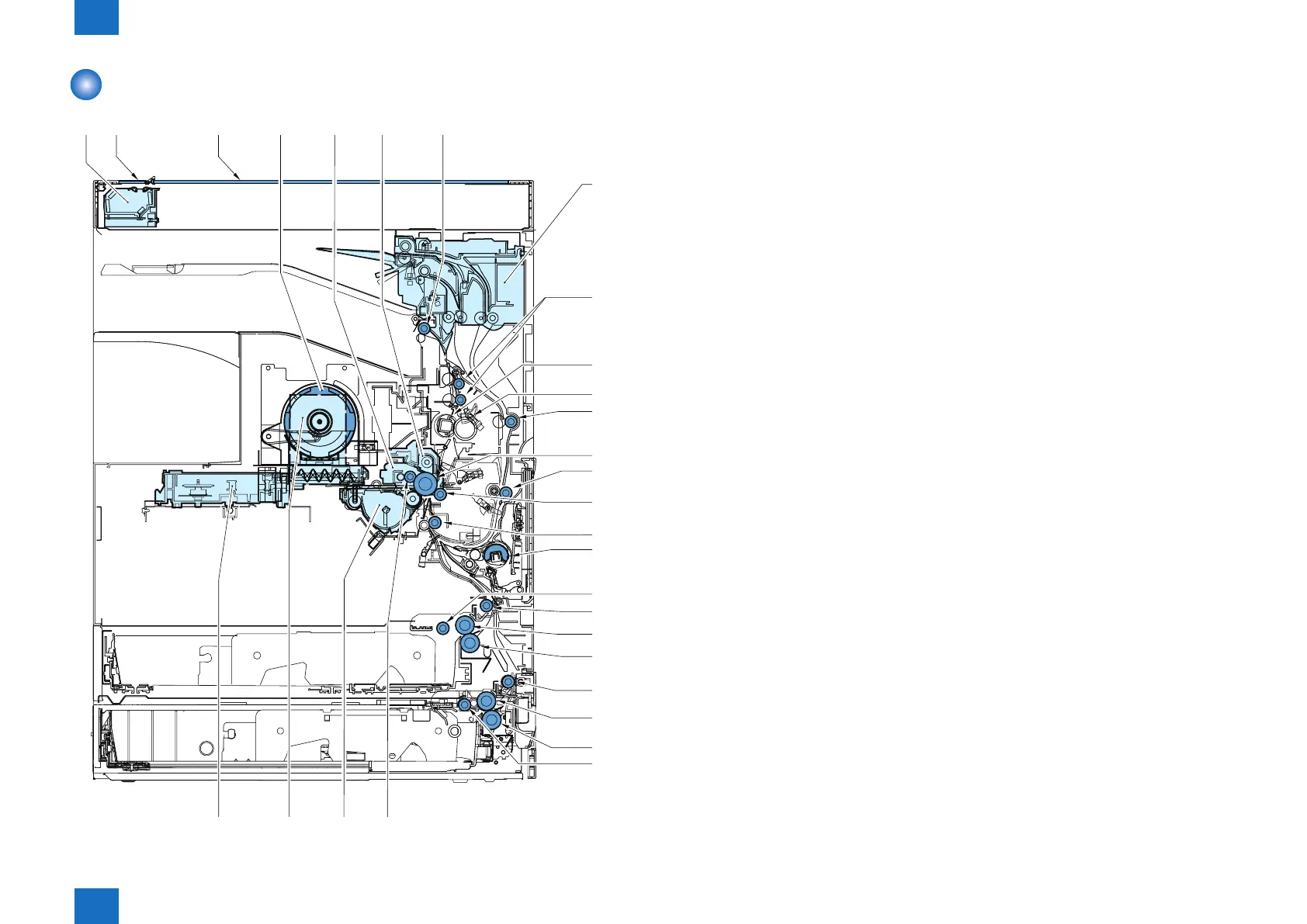

Cross Sectional View
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[1] [2] [3] [4] [5] [6] [7]
[29] [28] [27] [26]
F-1-7
[1] CCD unit [16] Registration roller
[2] ADF reading glass [17] Manual feed pickup
roller
[3] Platen glass [18] Pickup roller (cassette
1)
[4] Toner bottle [19] Vertical path roller 1
[5] Drum unit [20] Feed roller (cassette 1)
[6] Drum cleaning unit [21] Separation roller
(cassette 1)
[7] Delivery roller [22] Vertical path roller 2
[8] 2 way unit [23] Feed roller (cassette 2)
[9] Fixing outlet roller [24] Separation roller
(cassette 2)
[10] Fixing lm unit [25] Pickup roller (cassette
2)
[11] Pressure roller [26] Primary charging roller
[12] Duplex feed roller 1 [27] Developing unit
[13] Photosensitive drum [28] Sub hopper
[14] Duplex feed roller 2 [29] Laser scanner unit
[15] Transfer roller
