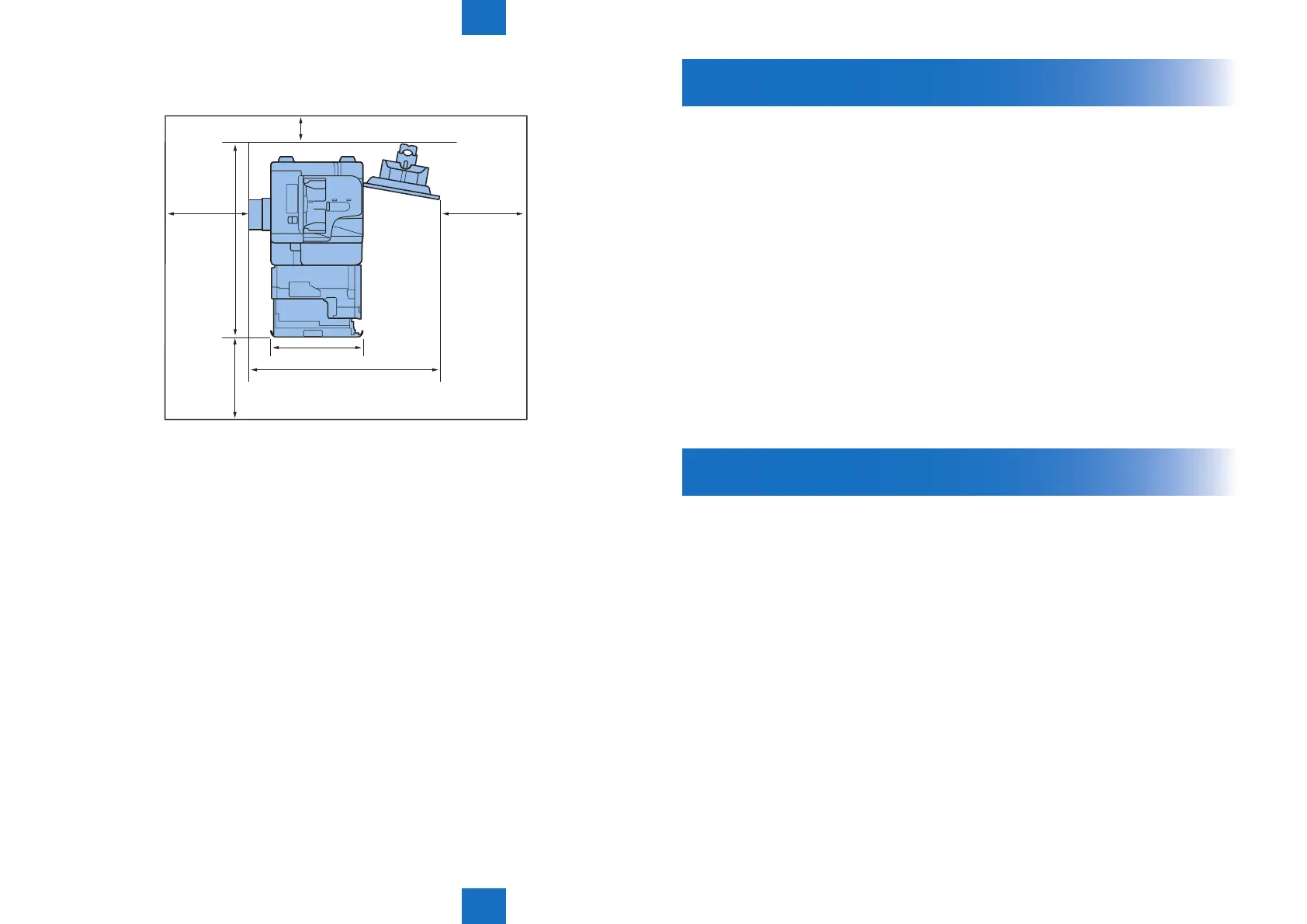

The width of the machine without an inner îš¿nisher is 1,079 mm.
100mm or more
500mm
or more
500mm
or more
500mm
or more
1341mm
565mm
1372mm
7) Install the machine in a well-ventilated place. Do not install the machine close to the
ventilation duct of the room.
F-9-3
Points to Make Before Installation
Be sure to go through the following before starting the work.
1) Imaging faults can result due to dew condensation that occurs when the machine is moved
from a cold place to a warm place. Leave the unpacked machine as it is for at least two
hours before installing it.
(Dew condensation: When a metallic object is brought from a low-temperature place to a
high-temperature place, water vapor around it is cooled abruptly and consequently water
drops stick to the surface of the metallic object.)
2) The maximum weight of the machine is approx. 78.8 kg (double-cassette model supplied
with a DADF). Accordingly, two or more persons are required to lift the machine. Be sure to
keep the machine in a horizontal position when lifting it.
3) This product was designed considering the potential connection to the Norwegian IT power
distribution system.
Option Installation Sequence
When installing the options for this machine, keep the following in mind:
1) When installing the Card Reader-E1, Document Tray-J1, and USB Application 3-Port
Interface Kit-A1 together, be sure to install the USB Application 3-Port Interface Kit-A1 îš¿rst.
2) When installing the Inner Finisher-B1 and 2 Way Unit-B1 together, be sure to install the 2
Way Unit-B1 îš¿rst.
3) When installing the Inner Finisher-B1 and Drum Heater-C1 together, be sure to install the
Drum Heater-C1 îš¿rst.
4) iR2530/2525/2520 with 250-sheet cassette 1
When installing the Inner Finisher-B1 and the Cassette Heater Unit-37 for cassette 1
together, be sure to install the Cassette Heater Unit-37 îš¿rst.
