Parts Replacement and Cleaning > PCB > Removing the Cassette 1 Pickup Motor (M3) > Replacement Procedure
Parts Replacement and Cleaning > PCB > Removing the Cassette 1 Pickup Motor (M3) > Replacement Procedure

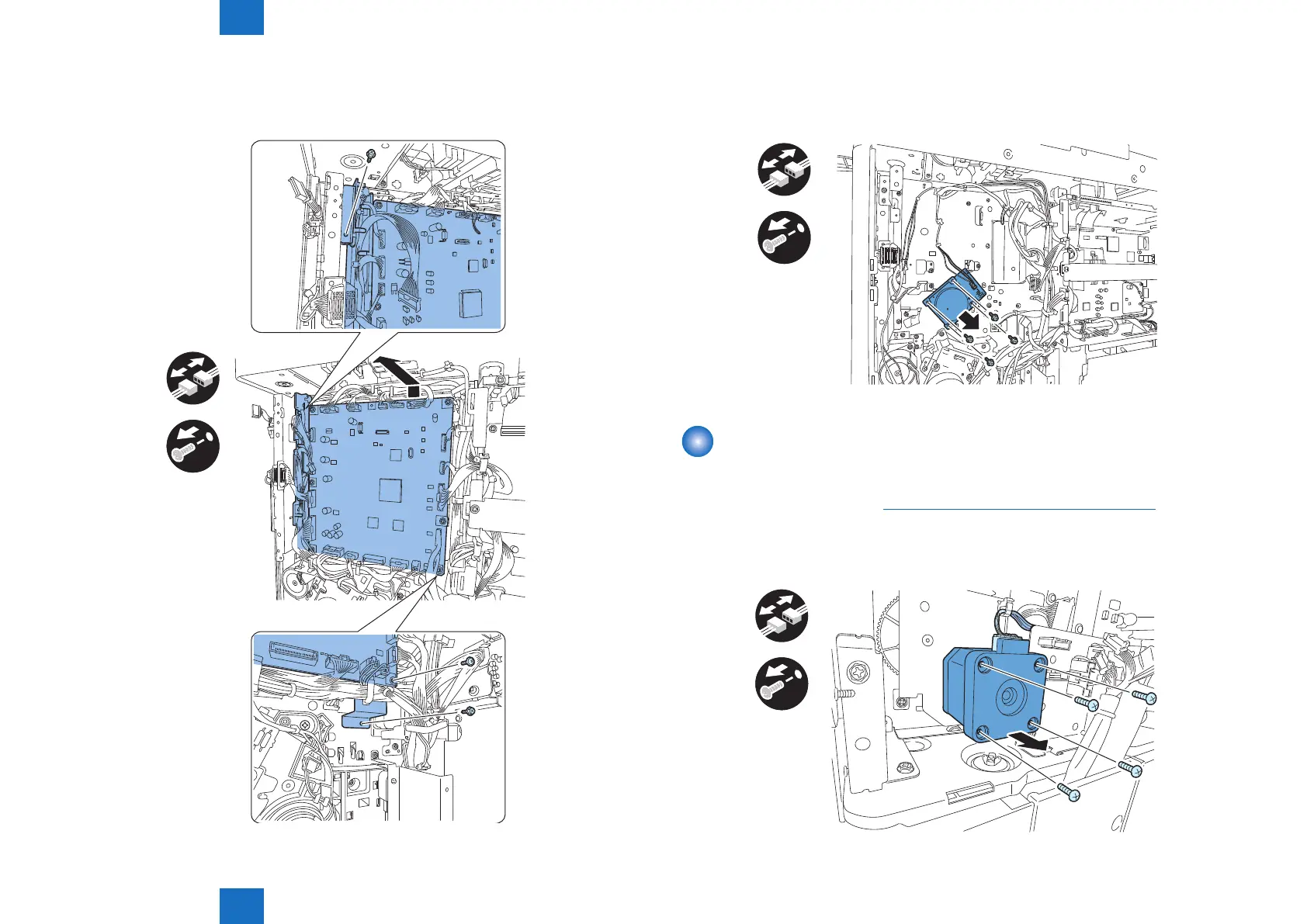

5) Disconnect all connectors on the DC controller PCB.
6) Remove the DC controller PCB assembly.
- 3 screws
x3
F-4-111
7) Remove the xing motor.
- 1 connector
- 4 screws
x1
x4
Removing the Cassette 1 Pickup Motor (M3)
■
Replacement Procedure
1) Remove the lower rear cover.(“Removing the Lower Rear Cover”(page 4-22).)
2) Remove the cassette 1 pickup motorr.
- 1 connector
- 4 screws
x1
x4
F-4-112
F-4-113
To Next Page
