Parts Replacement and Cleaning > PCB > Removing the No.1 Delivery Motor (M9) > Replacement Procedure
Parts Replacement and Cleaning > PCB > Removing the No.1 Delivery Motor (M9) > Replacement Procedure
Removing the No.1 Delivery Motor (M9)
■
Replacement Procedure
1) Remove the inside base cover.(“Removing the Inside Base Cover”(page 4-17).)
2) Remove the toner supply cover.(“Removing the Toner Supply Cover”(page 4-19).)
3) Remove the support cover (left).(“Removing the Support Cover”(page 4-14).)

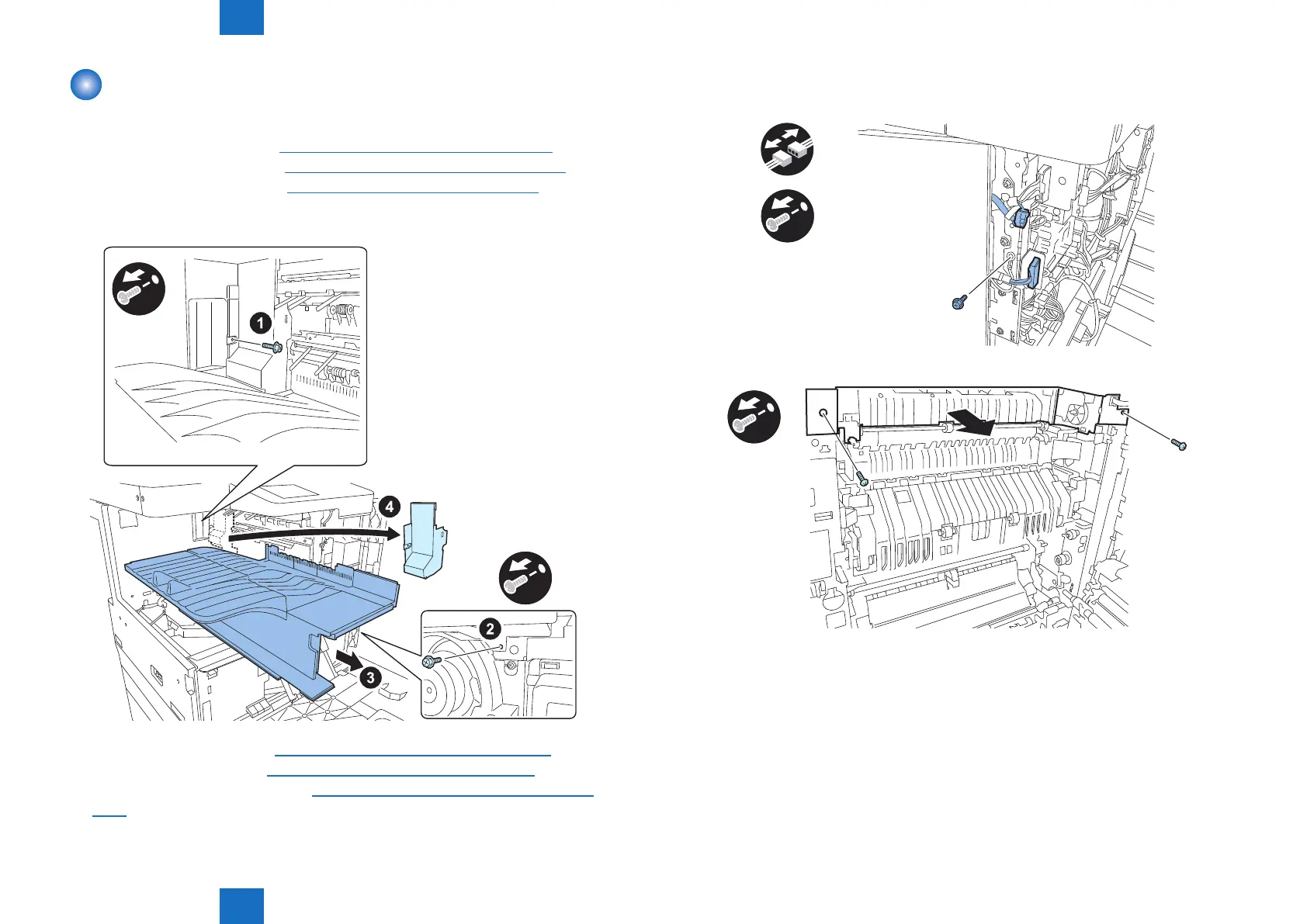

4) Remove the delivery tray and inner right cover.
- 2 screws
x1
x1
5) Remove the rear cover (right).(“Removing the Rear Cover (Right)”(page 4-21).)
6) Remove the rear cover (left).(“Removing the Rear Cover (Left)”(page 4-22).)
7) Remove the right cover (upper rear).(“Removing the Rear Right Cover (Upper)”(page
4-22).)
F-4-121
8) Remove the No.2 deleivery unit.
- 2 connectors
x1
x2
- 2 screws
x2
F-4-122
F-4-123
To Next Page
