Disassembly/Assembly > Controller System > Removing the Multi-purpose Solenoid
Disassembly/Assembly > Controller System > Removing the Multi-purpose Solenoid
Removing the Cassette Pickup Solenoid
Preparations
1) Remove Right Cover.(Refer to page 3-9)
Procedure

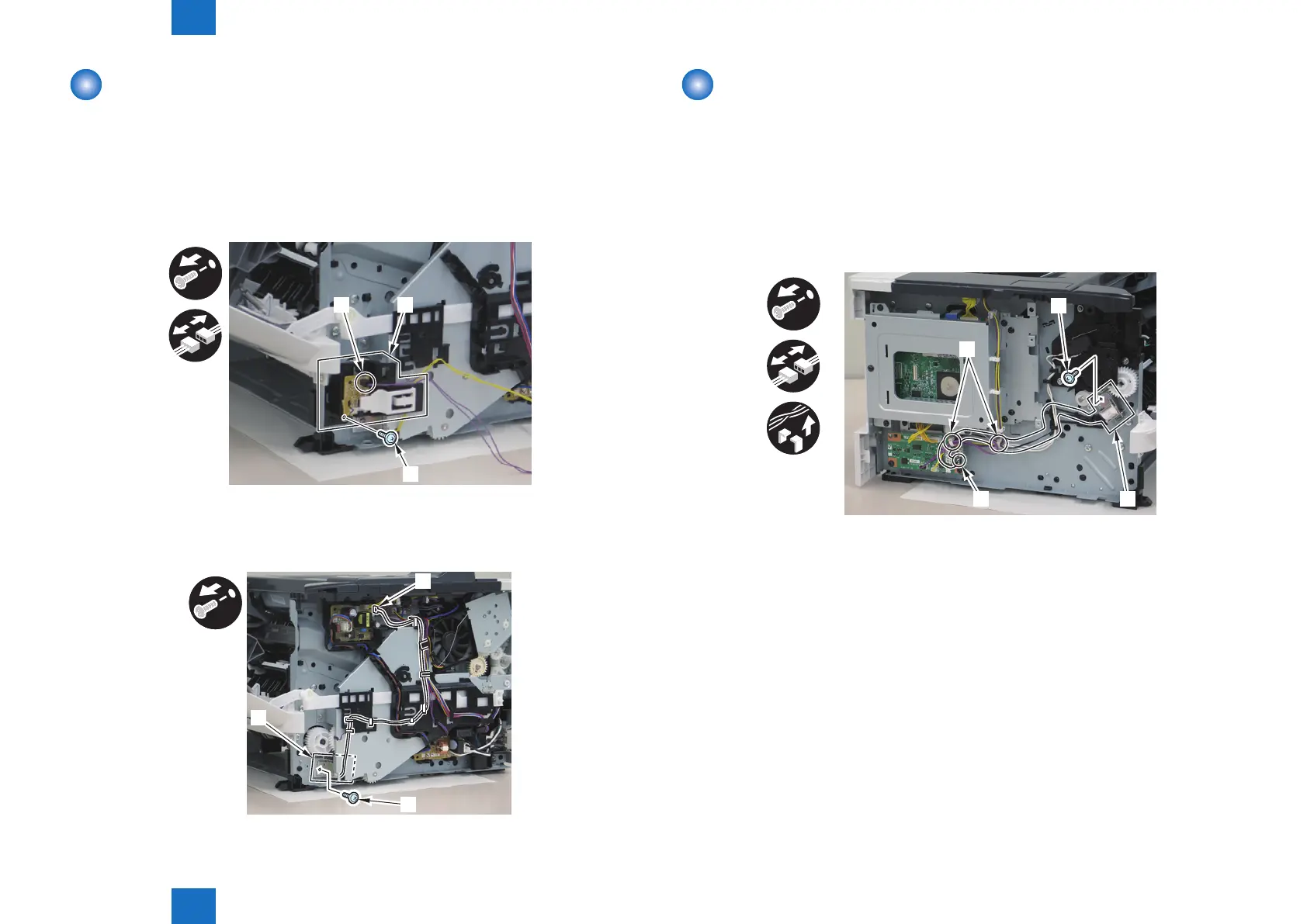

1) Remove main switch unit [1].
• 1 Screw [2]
• 1 Connector [3]
[1]
[2]
[3]
2) Remove Cassette Pickup Solenoid [1].
• 1 Screw [2]
• 1 Connector [3]
[1]
[2]
[3]
F-3-38
F-3-39
Removing the Multi-purpose Solenoid
Preparations
1) Remove Left Cover.(Refer to page 3-9)
Procedure
1) Remove Multi-purpose Solenoid [1].
• 1 Screw [2]
• 1 Connector [3]
• 2 Wire Saddle [4]
x2
[4]
[2]
[1][3]
F-3-40
