Disassembly/Assembly > Controller System > Removing the Main Controller Board > Actions before Replacement (LBP6670 only)
Disassembly/Assembly > Controller System > Removing the Main Controller Board > Actions before Replacement (LBP6670 only)
Procedure (LBP6670)

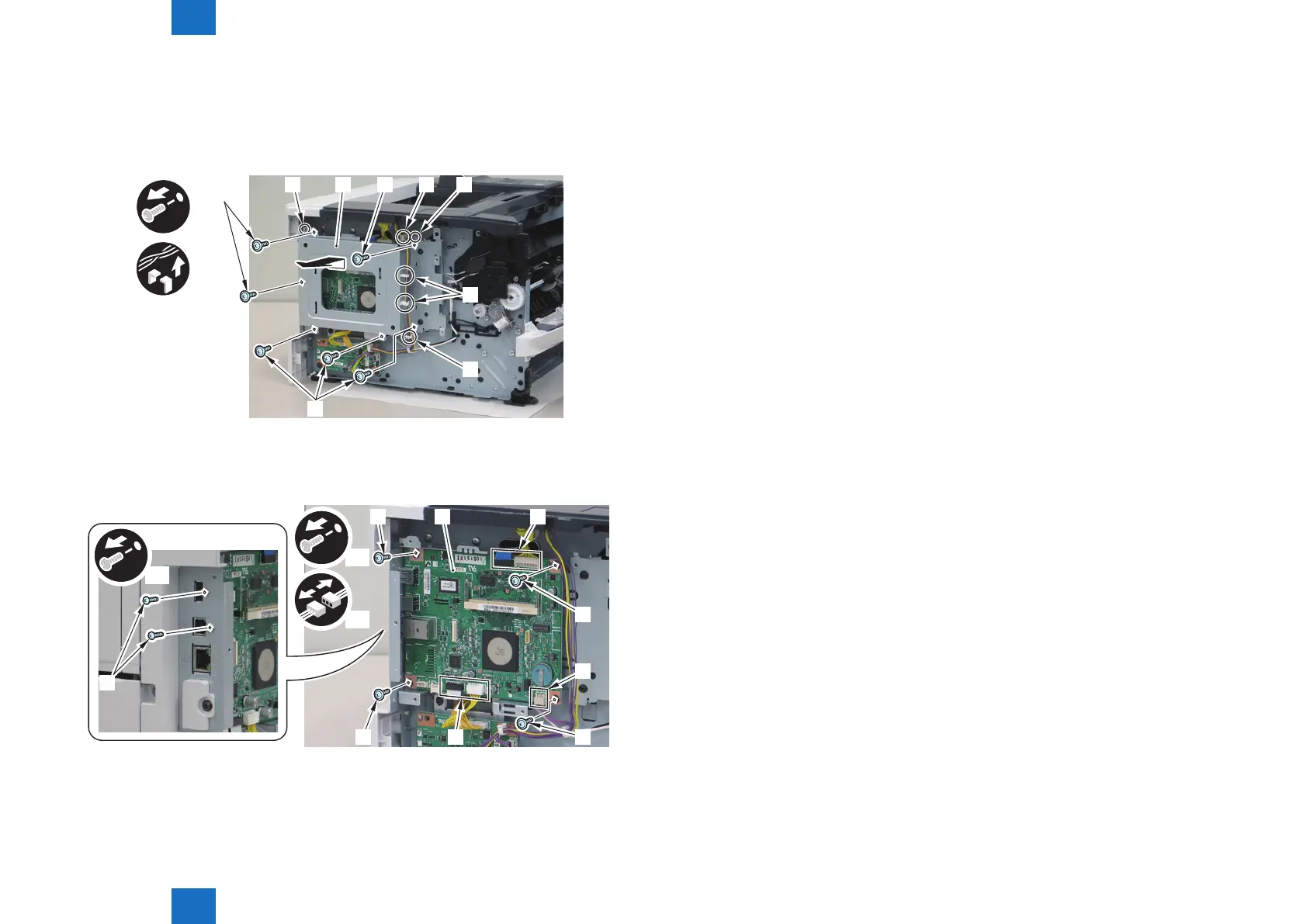

1) Remove Controller Cover [1].
• 2 Flat cable [2]
• 2 Connector [3]
• 4 Screw [4]
x6
x4
[1] [2]
[2]
[3]
[4]
[4]
[4][5] [5]
2) Remove Main Controller Board [1].
• 5 Connectors [2]
• 4 Screws [3]
• 2 Screws [4]
x4
x2
[1] [2]
[2]
[3]
[3]
[3][3]
[4]
x5
[2]
F-3-15
F-3-16
■
Actions before Replacement (LBP6670 only)
1) Turn ON the power, and Operate according to the instruction on the screen since the initial
installation mode isactivated. (Setting the date/time, executing the auto gradation adjustment)
2) Entering the device serial number of the equipment because ####000000 is already
entered in SN MAIN after replacing the PCB.
3) Execute Utility > Common Status Print, and check the serial number.
4) Back up data of the Main Controller PCB to the USB memory.
Select Setup Menu>SERVICE MODE>FUNCTION GR.>ECONF>EXPORT>ALL>Yes
