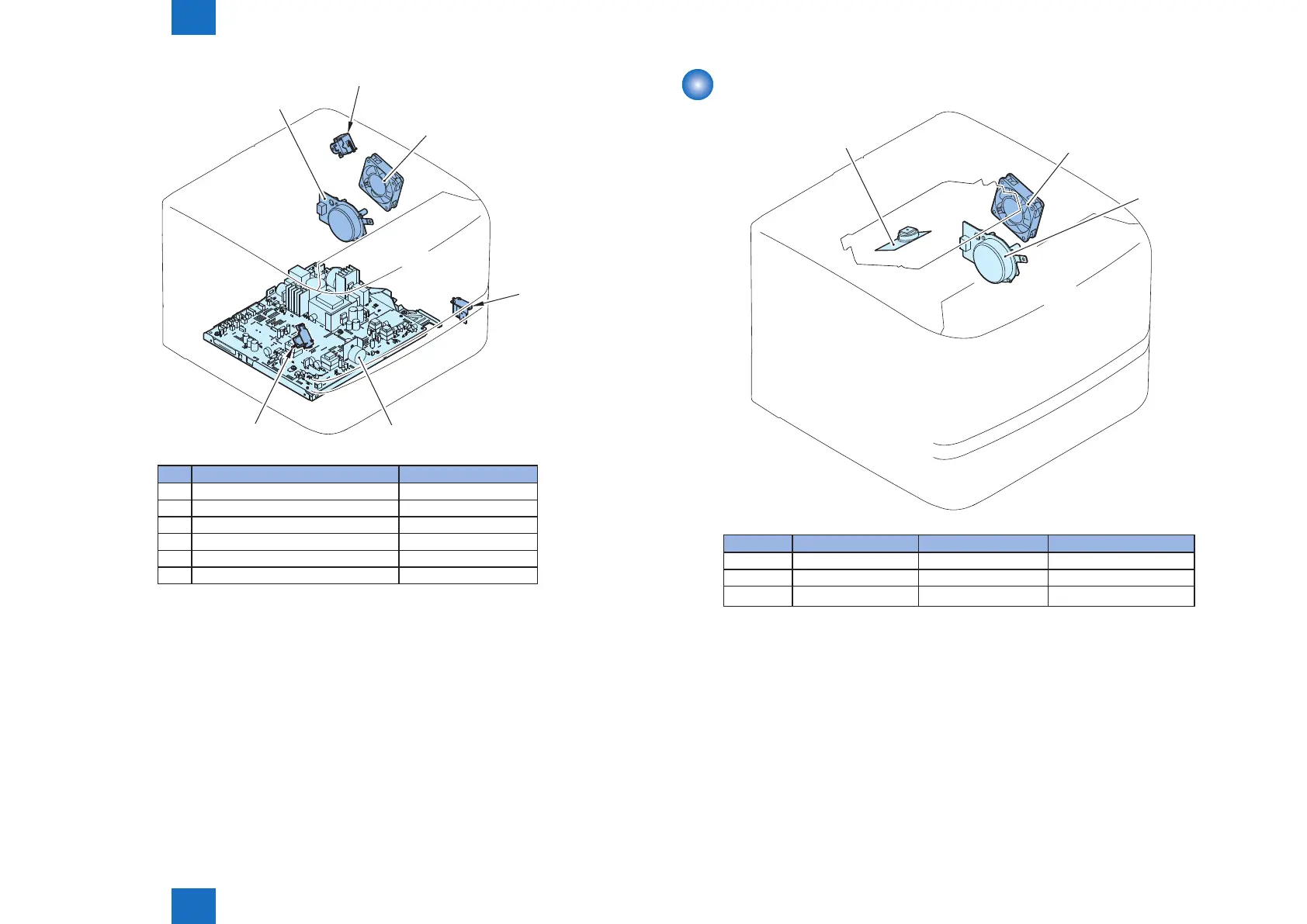

Disassembly/Assembly > List Of Parts > Motor
Disassembly/Assembly > List Of Parts > Motor
[1]
[2]
[3]
[4]
[5]
[6]
No. Name Reference
[1] Main Motor (Refer to page 3-19)
[2] Duplex Reversal Solenoid (Refer to page 3-23)
[3] Main Fan (Refer to page 3-19)
[4] Cassette Pickup Solenoid (Refer to page 3-22)
[5] Engine Controller Board (Refer to page 3-16)
[6] Multi-purpose Solenoid (Refer to page 3-22)
F-3-2
T-3-3
Motor
M2
M1
FM1
No. Name Main Units Reference
M1 Main Motor - (Refer to page 3-19)
M2 Scanner Motor Laser Scanner Unit (Refer to page 3-24)
FM1 Main Fan - (Refer to page 3-19)
F-3-3
T-3-4
