Maintenance and Inspection > Cleaning > Cleaning at Service Visit
Maintenance and Inspection > Cleaning > Cleaning at Service Visit
Periodically Replaced Parts
Periodically Replaced Parts
• Periodic replacement parts are not required in this printer.
Consumable Parts
Durables Replaced by the Service Person
• Consumable parts are not required in this printer.
Periodical Service
Periodical Service
• No periodic services are required to this printer.
Cleaning
Cleaning at Service Visit
Follow the procedure blow when cleaning the printer during service visit.
Component Cleaning Method
Pickup Roller / Sepalation Pad Wipe With A Lint-free Cloth.
Registration Roller / Registration
Arm Unit
Wipe With A Lint-Free Cloth.
Transfer Guide Unit Wipe With A Soft and Dry Flannel Cloth.
Media Feed Belt / Media Feed
Guide Unit
Wipe With A Lint-Free Cloth.
Fixing Inlet Guide Wipe With Alcohol Dampened Flannel Cloth.
Do not clean the following components:
• Photosensitive drum
• Transfer roller
T-4-1

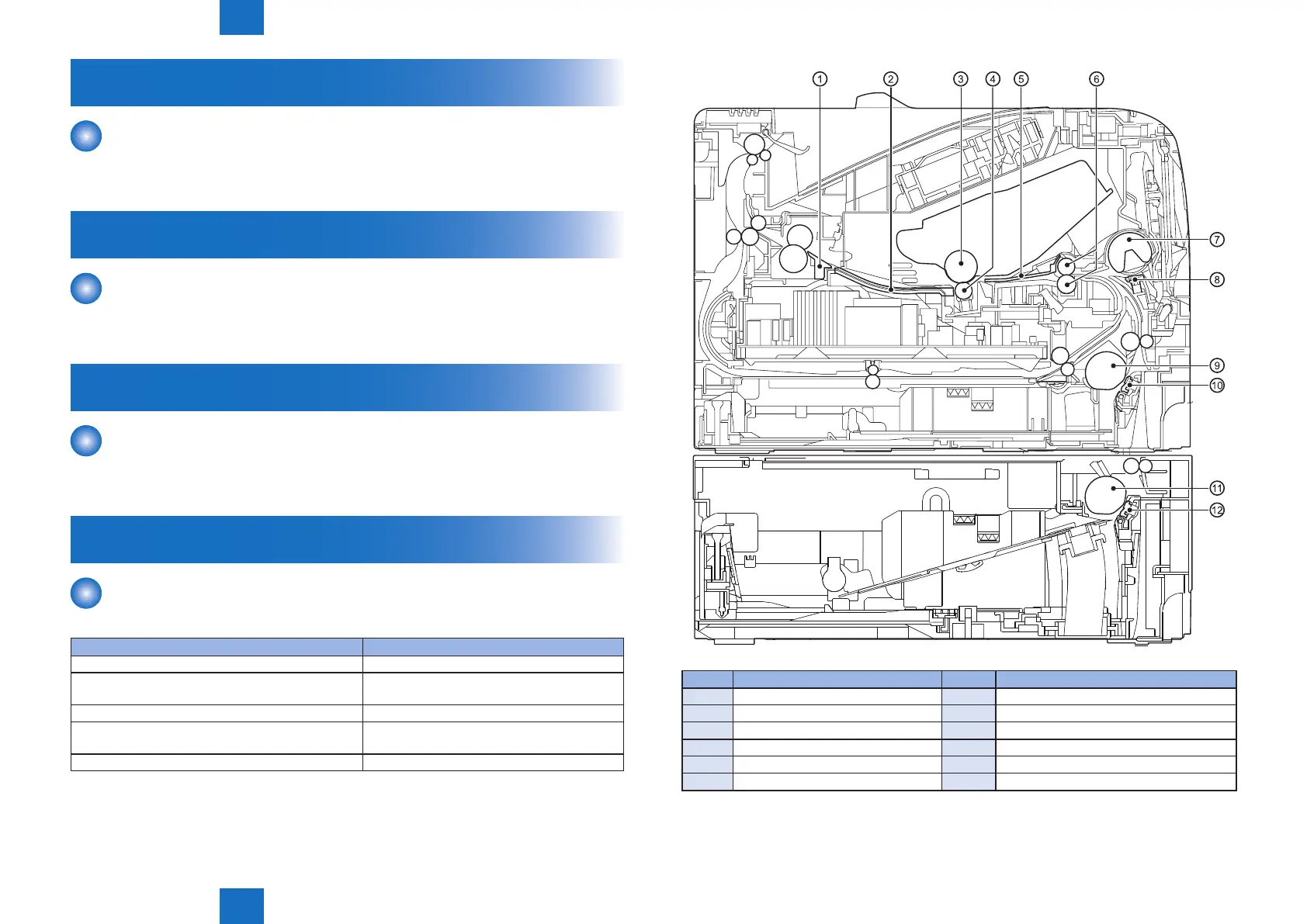

No. Name No. Name
[1] Fixing Inlet Guide [7] Multi-purpose Tray Pickup Roller
[2] Media Feed Guide [8] Multi-purpose Tray Separation Pad
[3] Photosensitive Drum [9] Cassette Pickup Roller
[4] Transfer Roller [10] Cassette Separation Pad
[5] Transfer Guide Unit [11] PF Pickup Roller
[6] Registration Roller Unit [12] PF Separation Pad
F-4-1
T-4-2
