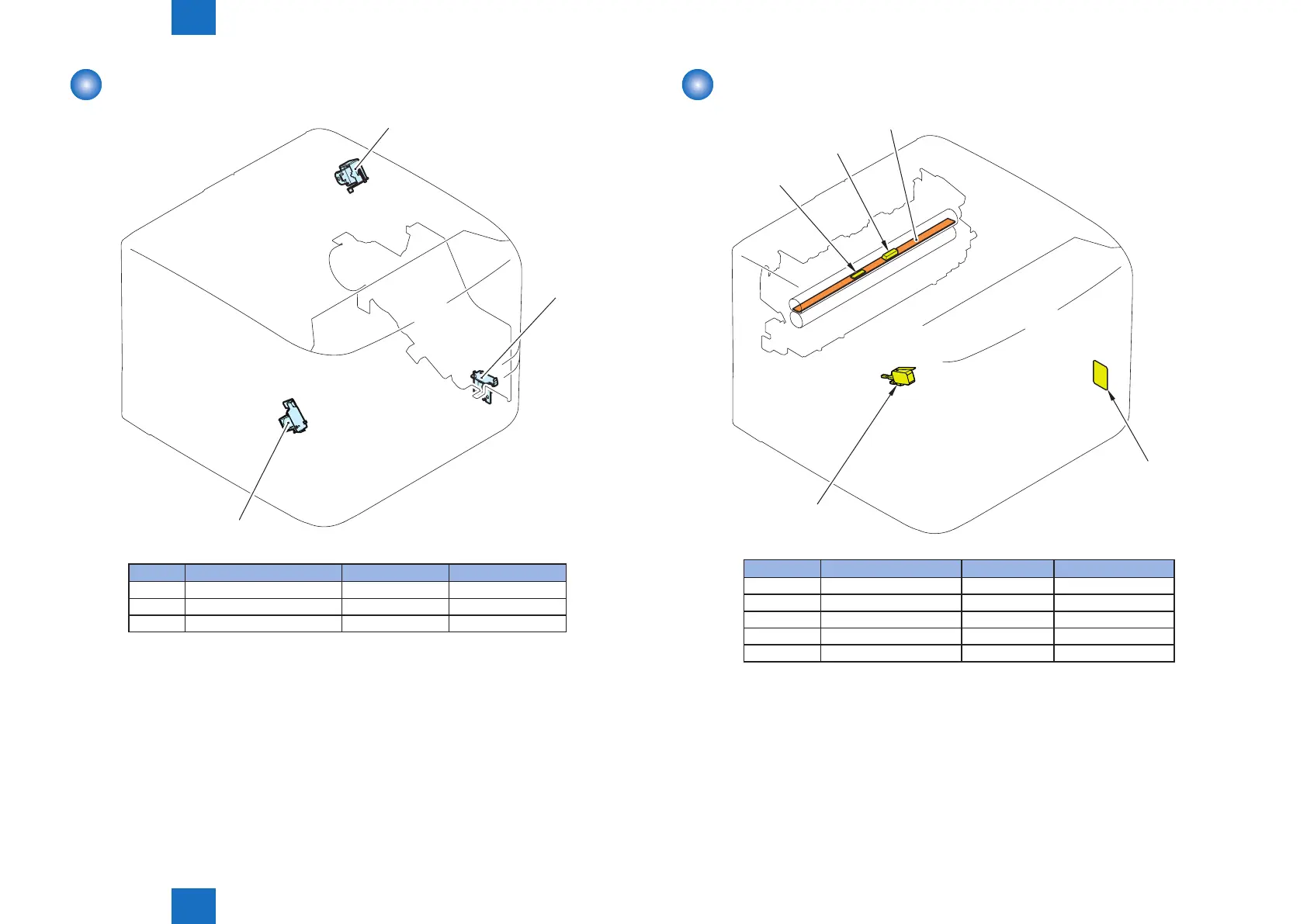

Disassembly/Assembly > List Of Parts > Heater / Thermo Switch / Thermistor / Switch
Disassembly/Assembly > List Of Parts > Heater / Thermo Switch / Thermistor / Switch
Solenoid
SL3
SL2
SL1
No. Name Main Units Reference
SL1 Multi-purpose Solenoid - (Refer to page 3-22)
SL2 Cassette Pickup Solenoid Main Drive Unit (Refer to page 3-22)
SL3 Duplex Reversal Solenoid - (Refer to page 3-23)
F-3-4
T-3-5
Heater / Thermo Switch / Thermistor / Switch
H1
TP1
TH1
SW301
SW1001
No. Name Main Units Reference
H1 Fixing Heater Fixing Unit -
TP1 Fixing Thermo Switch Fixing Unit -
TH1 Fixing Thermistor Fixing Unit -
SW1001 Power Switch - -
SW301 Door Switch - -
F-3-5
T-3-6

Canon LBP6670dn Series Specifications

General

Print Technology	Laser
Maximum Resolution	Up to 1200 x 1200 dpi
Duty Cycle	Up to 50, 000 pages per month
Media Types	Plain paper, Heavy Paper, Transparency, Label, Envelope
Duplex Printing	Yes
Network Ready	Yes
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB
Control Panel	5-line LCD
Category	All-in-One Printer
Paper Input (Standard)	250 sheets
Paper Output	150 sheets (face down)
Media Sizes	A4, A5, B5, Legal, Letter, Executive, Envelope
Media Weights	Cassette: 60 to 120 g/m², Multi-purpose tray: 60 to 163 g/m²
Interface Type	USB 2.0
Dimensions (W x D x H)	400 mm x 376 mm x 289 mm
Print Speed (Black)	Up to 35 ppm (A4)
