4. Set the Long Lifter Wire on front side of the Large Pulley. Set the Short Lifter Wire on rear side of it.
CAUTION:

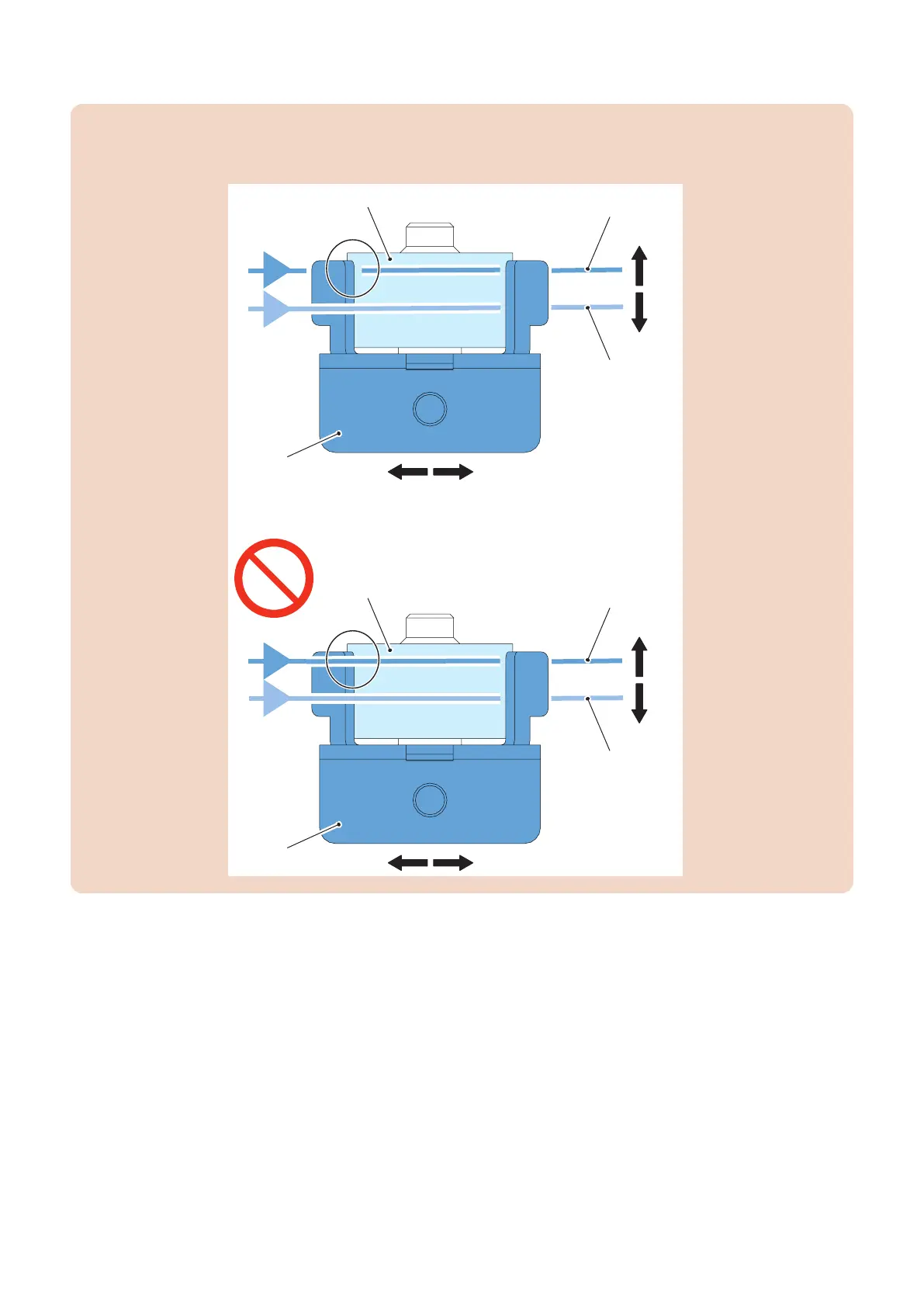

The Lifter Wire may be disconnected by wrong assembling. Put the Short Lifter Wire between the roller and the fixing plate
from the left side.
Long Lifter Wire
Short Lifter Wire
Roller
Fixing Plate
RightLeft
Front
Rear
Long Lifter Wire
Short Lifter Wire
Roller
Fixing Plate
RightLeft
Front
Rear
