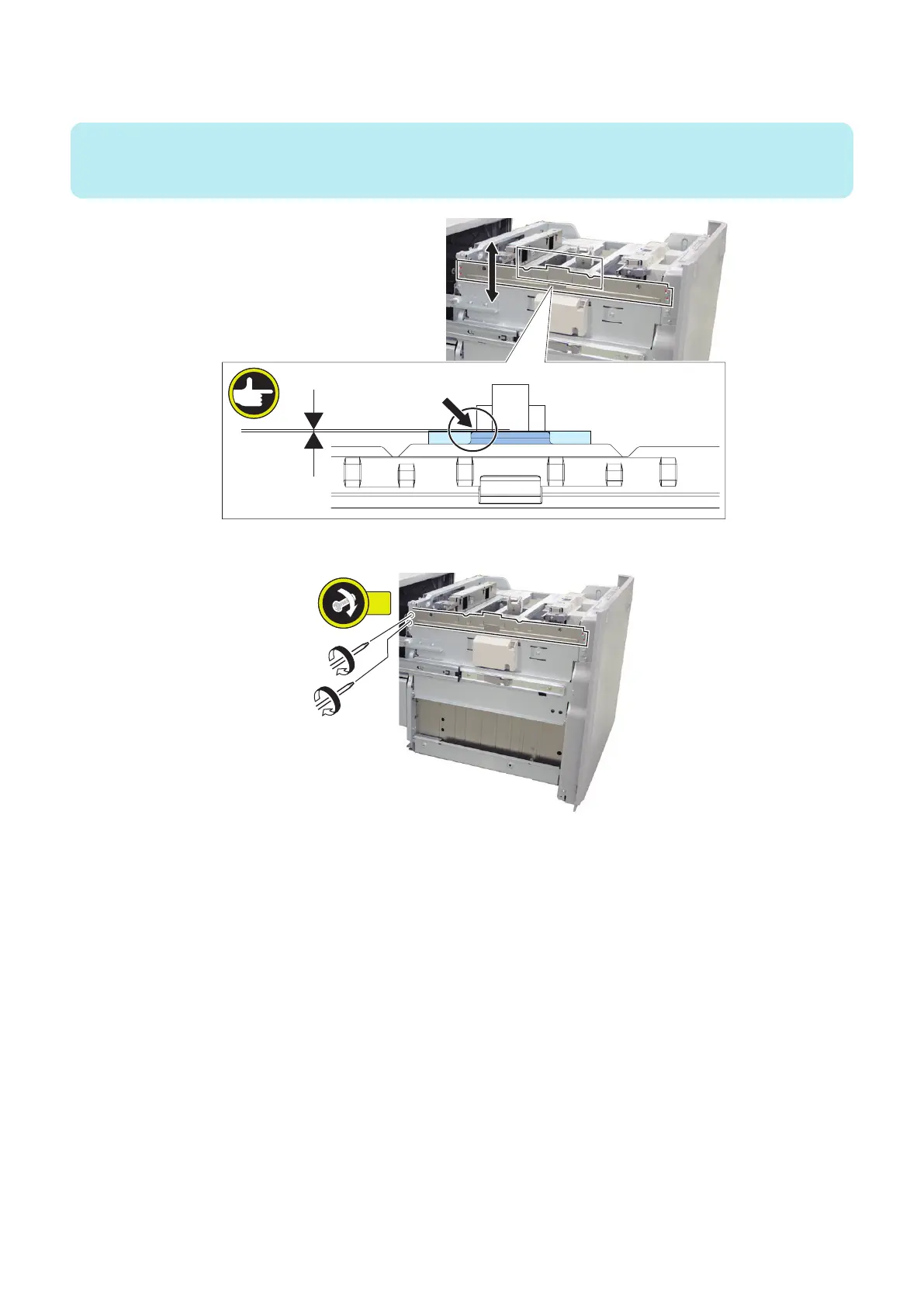

8. Slide up or down the left side of the Pre-Separation Plate to adjust the position between the Pre-Separation Plate
and the Lifter Plate within L=+/-0.5 mm.
NOTE:
• Check the position scale on the left edge of the Pre-Separation Plate to record the adjusted value.
• Check that plain paper passes smoothly.
L=+/-0.5mm
9. Fasten the 2 screws on the left loosened at procedure 7.
2x
