If this LED is on...
Status is...
Power
The i-Vu® Open Link has power
Link
The i-Vu® Open Link is connected to the Ethernet
LAN
The Ethernet port is transmitting or receiving data
100
The connection speed is 100 Mbps. If LED is not lit, the connection speed is 10
Mbps.
S2 Tx
The i-Vu® Open Link is transmitting data on the Port S2 network
S2 Rx
The i-Vu® Open Link is receiving data from the Port S2 network
Archive Valid
The i-Vu® Open Link's memory backup is valid
S1 (BACnet) Tx
The i-Vu® Open Link is transmitting data to the MS/TP (Open) network
S1 (BACnet) Rx
The i-Vu® Open Link is receiving data to the Open network
Brownout
Low-level incoming power
Battery low
The battery is low
To get the serial number
If you need the i-Vu® Open Link's serial number when troubleshooting, the number is on:
• a sticker on the back of the main controller board

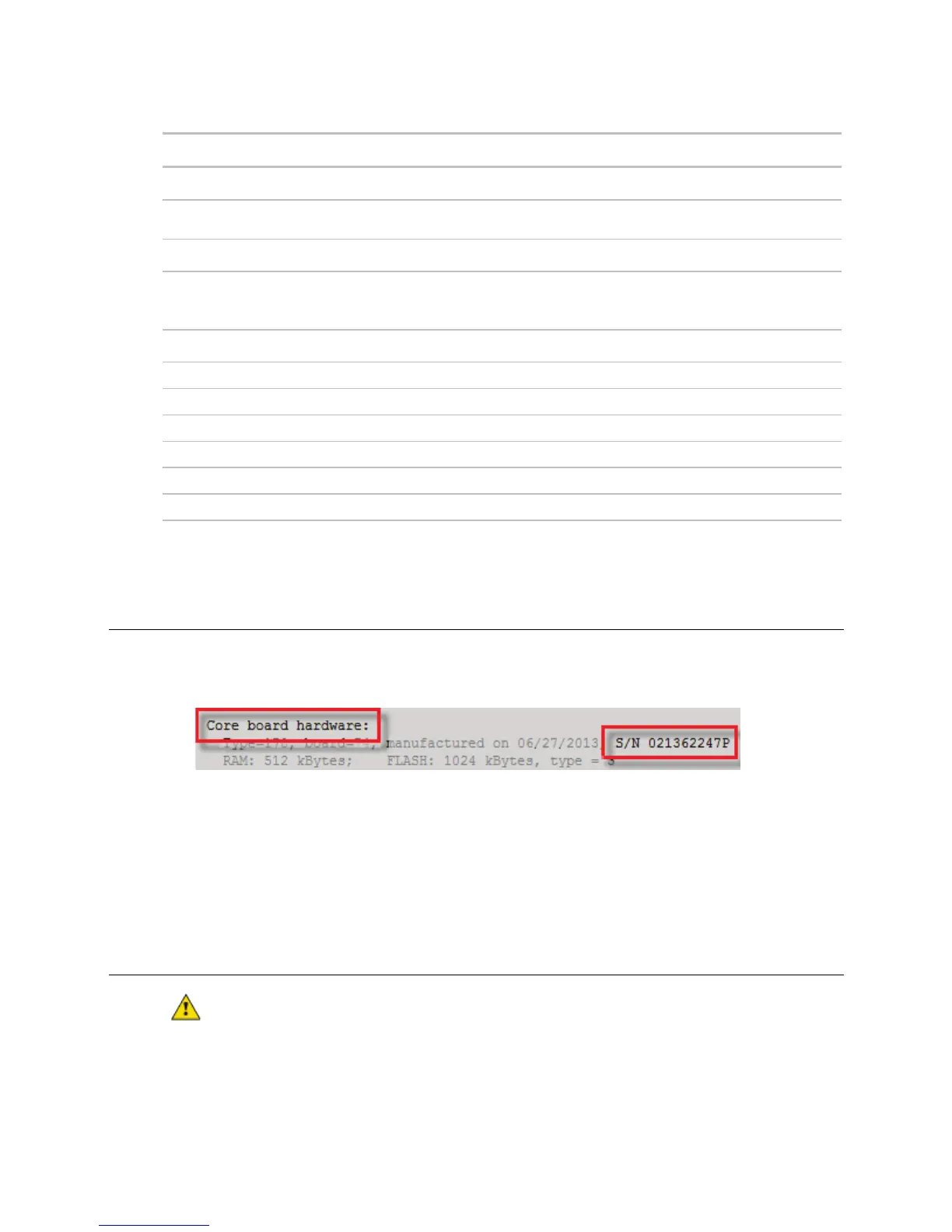

• a Module Status report (Modstat) under Core (or Main) board hardware
To obtain a modstat in the i-Vu® or Field Assistant interface:
1 Select the i-Vu® Open Link in the navigation tree.
2 Right-click and select Module Status.
To restore factory defaults
CAUTION This erases all archived information and user-configuration settings. You will have to reconfigure
all custom settings. It is recommended to restore the factory defaults only under the guidance of Carrier Control
Systems Support.
