Protection
Incoming power and network connections are protected by non
-replaceable internal
solid-state polyswitches that reset themselves when the condition that causes a fault
returns to normal.
The power and networ
k connections are also protected against transient excess
voltage/surge events lasting no more than 10 msec.
Status indicators
LED status indicators for Port S1 and S2 communication, Ethernet Port E1
communication, and low battery status. Seven segment status display for running,
error, power status, archive valid, and brownout.
Environmental operating
range
-20 to 140°F (-29 to 60°C), 10–90% relative humidity, non-condensing
Storage temperature range
-24 to 140°F (-30 to 60°C), 0 to 90% relative humidity, non-condensing
Physical
Rugged aluminum cover, removable screw-type terminal blocks

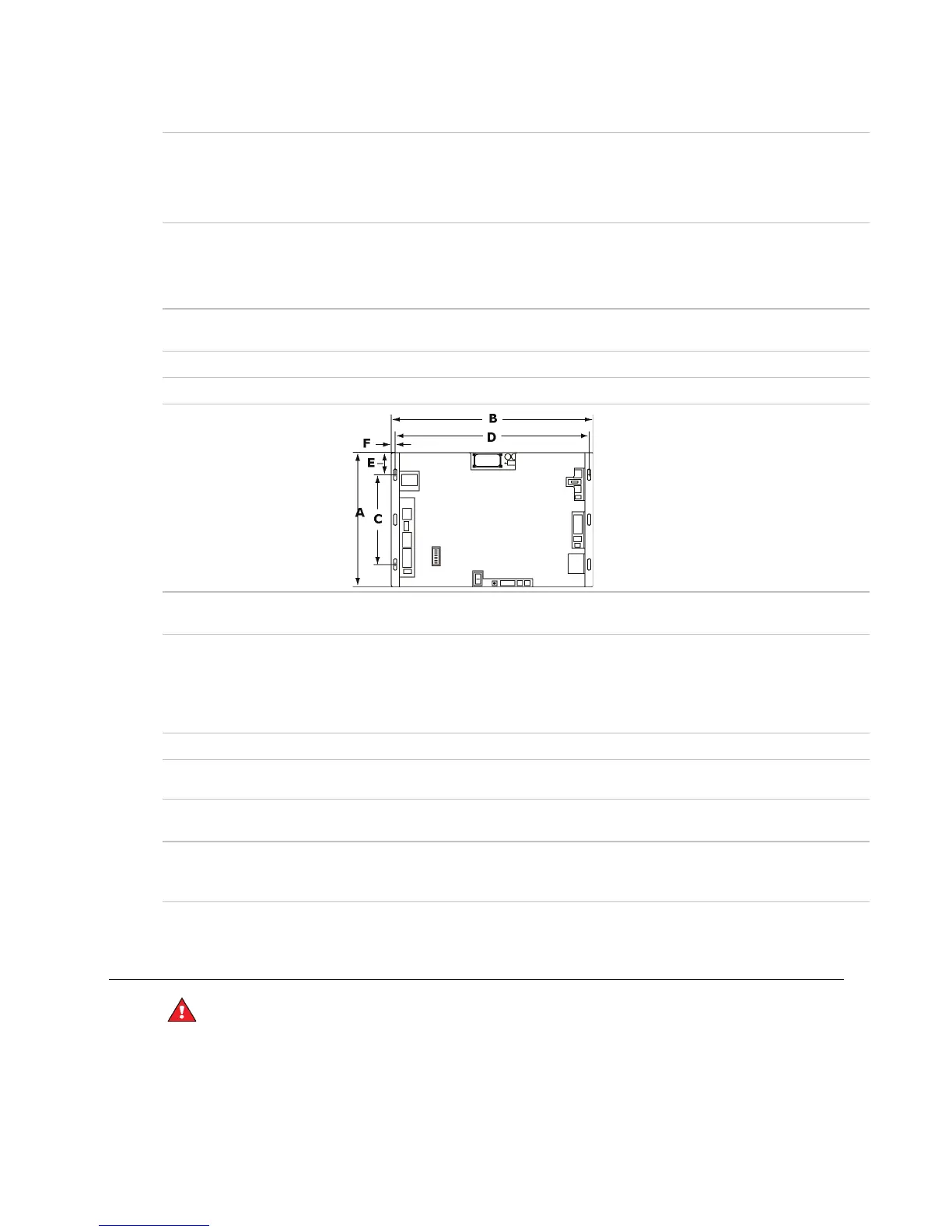

Overall dimensions
A:
B:
7-1/2 in. (19.1 cm)
11-5/16 in. (28.7 cm)
Mounting dimensions
C:
D:
E:
F:
5 in. (12.7 cm)
10-7/8 in. (27.6 cm)
1-1/4 in. (3.2 cm)
1/4 in. (.6 cm)
Mount with 6-32 by 1/2 in. mounting screws
Depth
1-1/4 in. (3.2 cm)
Weight
1.4 lbs (0.64 kg)
BACnet support
Conforms to the BACnet Building Controller (B-BC) Standard Device Profile as defined
in ANSI/ASHRAE Standard 135-2012 (BACnet) Annex L, Protocol Revision 9
Listed by
UL916 (Canadian Std C22.2 No. 205-M1983, CE, FCC Part 15 - Subpart B - Class A
Safety considerations
WARNING Disconnect electrical power to the i-Vu® Open Link before wiring it. Failure to follow this warning
could cause electrical shock, personal injury, or damage to the controller.

Carrier i-Vu Open Link Specifications

General

Brand	Carrier
Model	i-Vu Open Link
Category	Controller
Language	English
