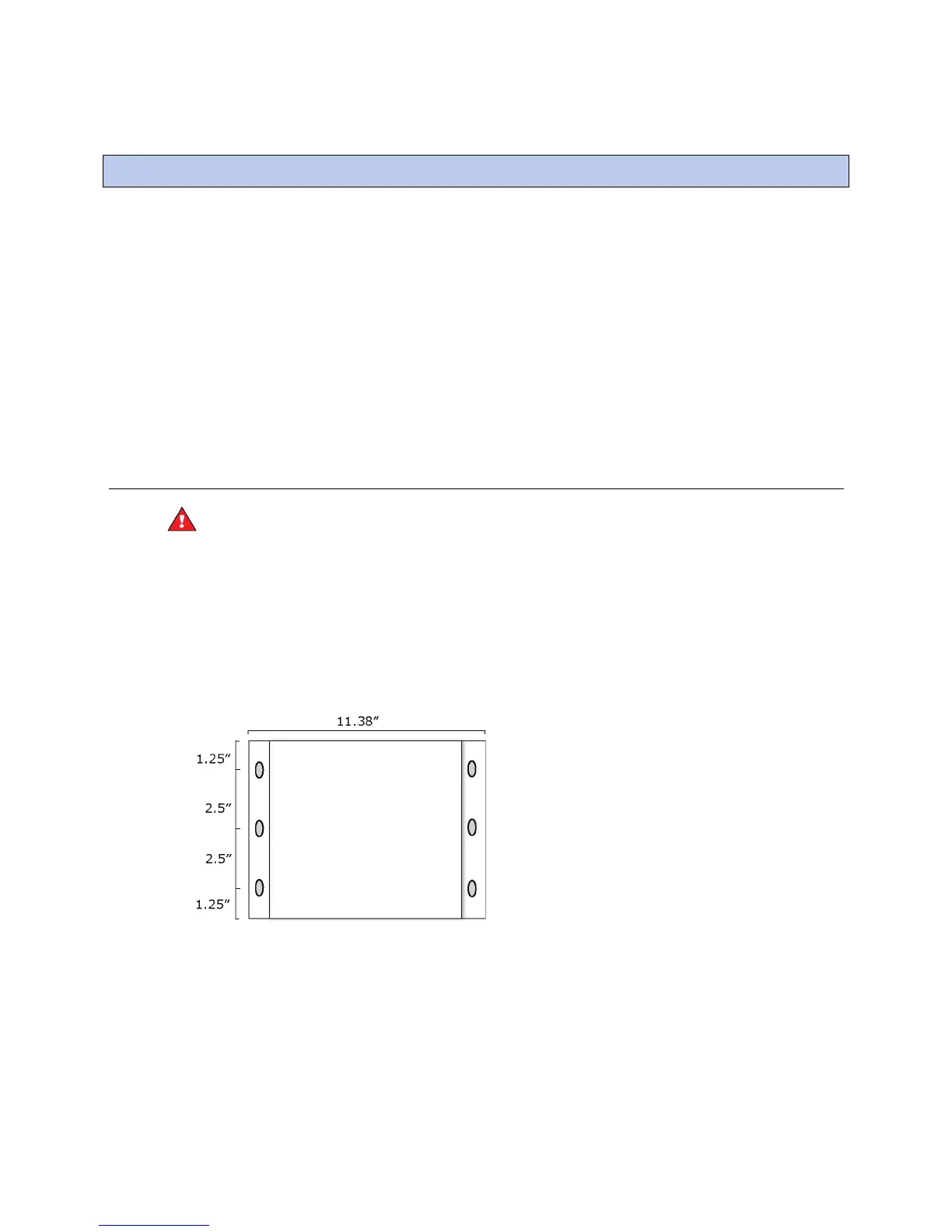

Installing the i-Vu® Open Link
i-Vu Open Link Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation and Start-up Guide All rights reserved
4
1 Mount the i-Vu® Open Link (page 4).
2 Wire for power (page 5).
3 Set the i-Vu® Open Link's address and IP address (page 5).
4 Wire for communications (page 9).
5 Communicate through the Local Access port (page 12).
6 Configure BACnet Device Instance and network number (page 15).
Mounting the i-VOpen Link
WARNING
When you handle the i-Vu® Open Link:
Do not contaminate the printed circuit board with fingerprints, moisture, or any foreign material.
Do not touch components or leads.
Handle the board by its edges.
Isolate from high voltage or electrostatic discharge.
Ensure that you are properly grounded.
Screw the i-Vu® Open Link into an enclosed panel using the mounting slots on the cover plate. Leave about 2 in.
(5 cm) on each side of the controller for wiring.
