4-OPERATINGINSTRUCTIONS
4.Operatethedippercontroltounhookthetool.
SMIL13CEX2706AB14

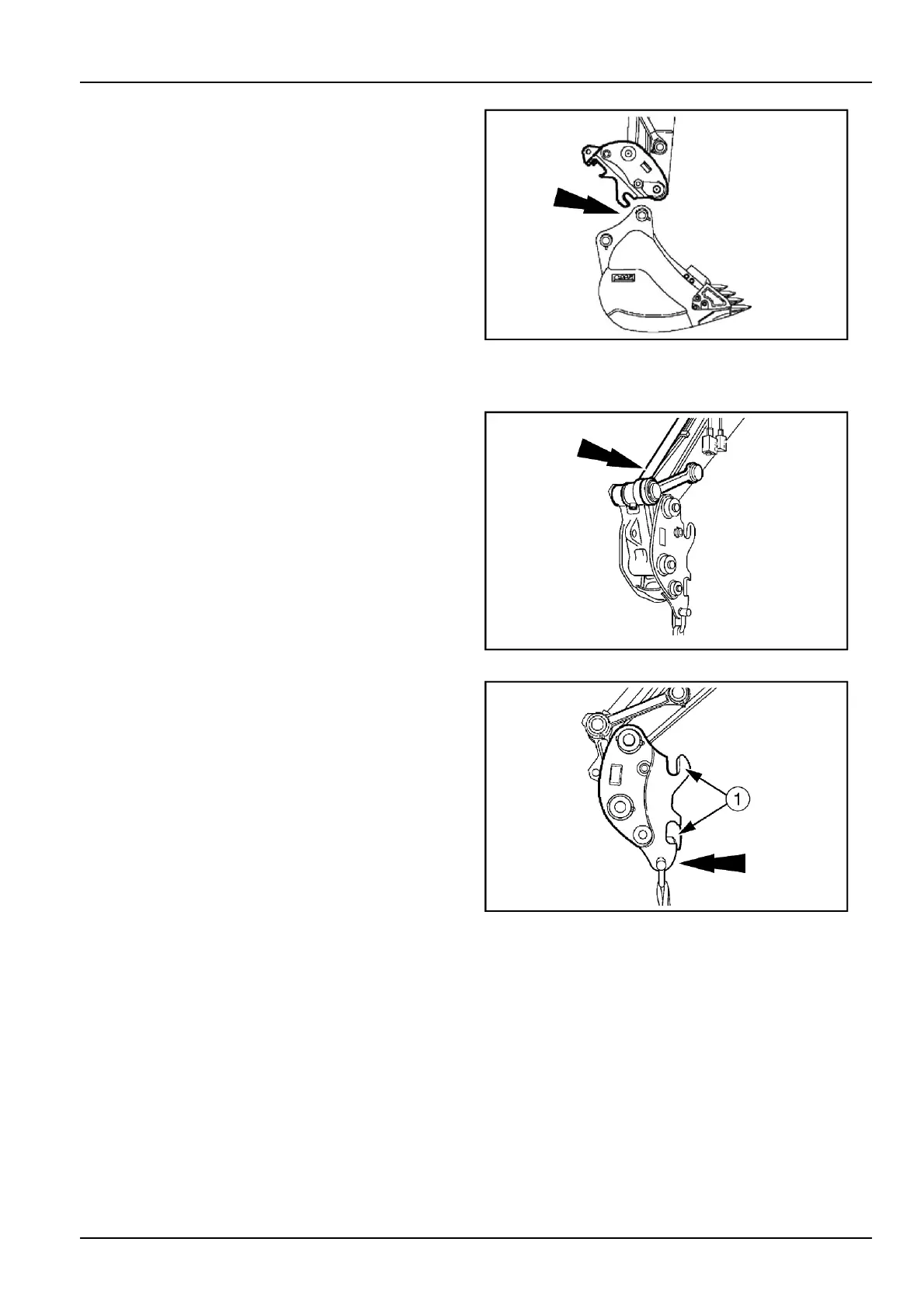

Handlingtheloadwiththequickcoupler
Theloadwiththequickcouplermustbehandledwiththe
bucketcylinderrodcompletelyextended.
NOTICE:maintainthispositionthroughouttheloadhan-
dlingoperation.
SMIL13CEX2871AB15
Thehandlingeyemustbeabletobeseenfromthecab
throughouttheloadhandlingoperation.
NOTICE:itisstrictlyforbiddentousethefrontorrear
xingpoints(1)ofthequickcouplertohandletheload.
NOTICE:thequickcouplereyecanbeusedforhandling
loadsupto10t.
SMIL13CEX2872AB16
