– 17 –

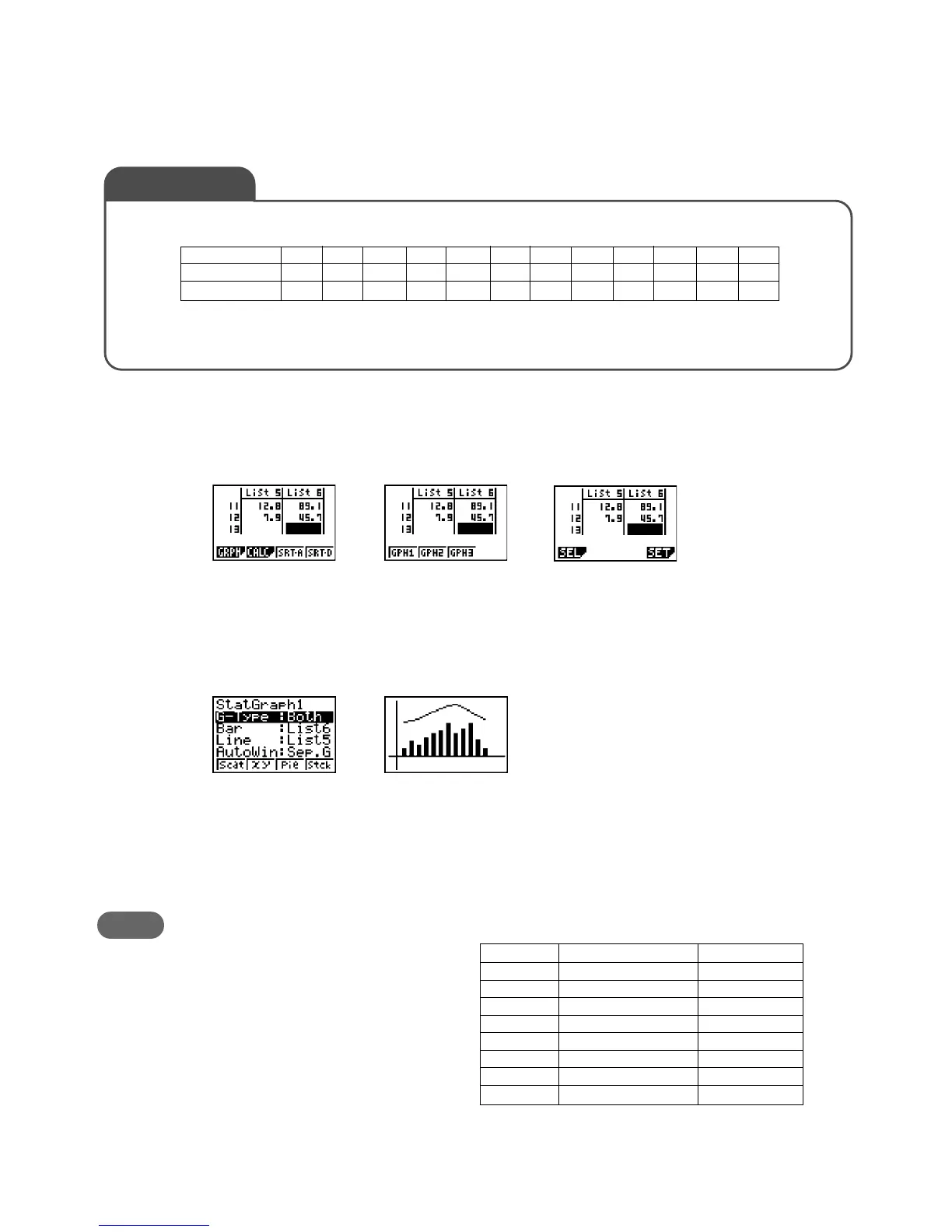

S-4 Bar Graph and Line Graph
The following shows the monthly average temperature and precipitation for Tokyo.
Use this data to draw a graph that includes a bar graph of the precipitation and a line graph
of the temperature.
Explanation When specifying the data graph type, select 3(Both).
Solution
1. Input the data into any available lists. In this exercise, we input the data into List 5 and List 6.
List 5: Temperature
List 6: Precipitation
Press
1(GRPH)
and then
[.
Press
4(SET).
[[[[
Select 3 (Both)
for G-Type.
2. Specify the data and graph.
The bar graph shows the precipitation data in List 6.
The line graph shows the temperature data in List 5.
Drill 4
The nearby table shows the volume of
PET bottles produced in Japan and
the percentage of bottle recycled
during each year. Draw a bar graph
that shows the production volume,
together with a line graph that shows
the recycle rate.
Production Volume Recycle Rate
1993 123,798 0.4
1994 150,282 0.9
1995 142,110 1.8
1996 172,902 2.9
1997 218,806 9.8
1998 281,927 16.9
1999 332,202 22.8
2000 361,944 31.8
PET Bottle Production Volume (t) and Recycle Rate (%)
Exercise 4
Tokyo JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
Temperature 5.2 6.6 8.5 14.1 18.6 21.7 25.2 27.1 23.2 17.6 12.8 7.9
Precipitation 45.1 80.4 60.4 99.5 125.0 138.0 185.2 126.1 147.5 179.8 89.1 45.7
