4. Introduction
The GridScan/Pro is a very reliable SIL 2 certified safety
light curtain. It was developed and designed to safeguard
all types of industrial doors such as sectional or high-speed
doors. The system is ideal for door openings up to 10 m
wide and can handle door closure speed of 1.6 m/s. The
opening speed is up to 3 m/s. The emitter and receiver can
be installed directly into the guide rail (blanking version)
or to the front or the back of the door (static version).
Therefore, a blanking version as well as a static version
(without door blanking) are available.
The GridScan/Pro has a selectable output of Frequency
Safety Signal (FSS) or Push-Pull, so one system can handle
all relevant outputs. Selecting the FSS output allows
operation according to EN ISO 13849-1:2015 Cat. 2
without periodic testing of the light curtain. This output is
included in the TÜV certification of the GridScan/Pro.

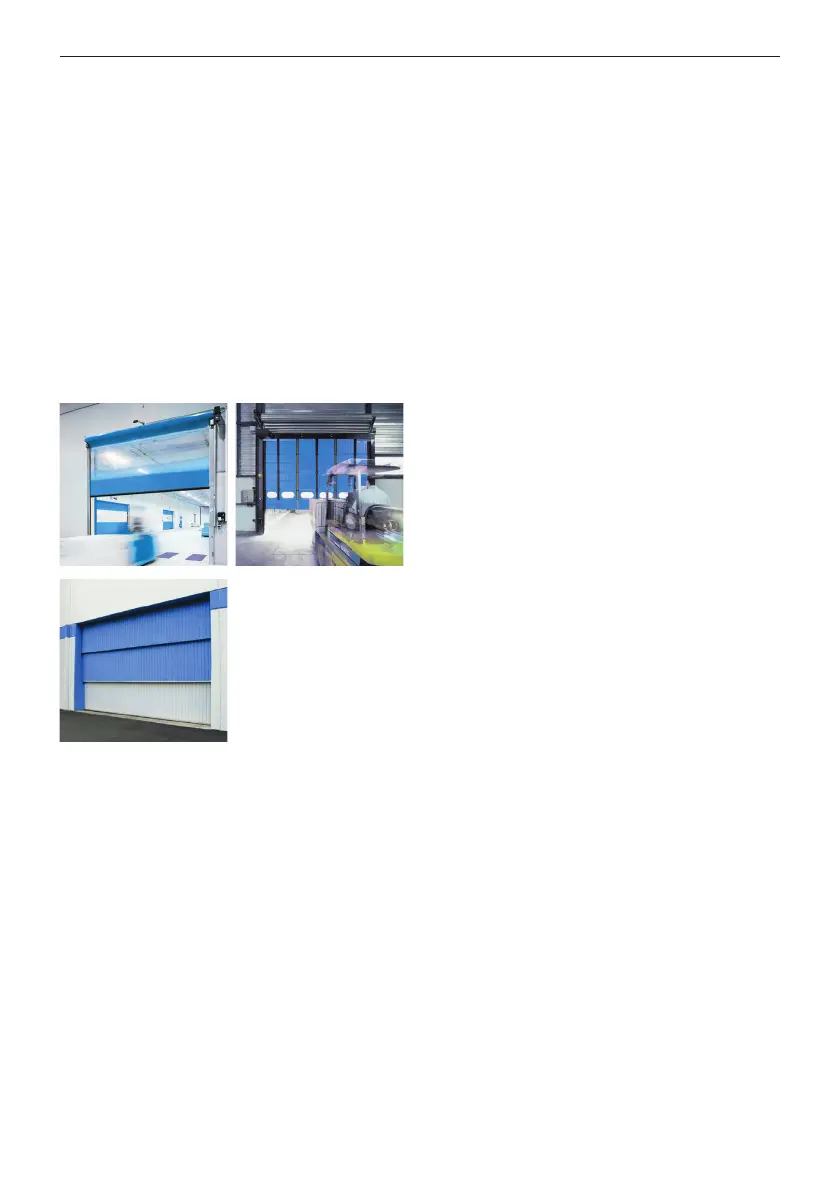

Figure 1: Typical GridScan/Pro application environments
4.1 Features of the GridScan/Pro
• TÜV – EC Type examination certified
• SIL 2 certified
• Direct integration into the door edge due to door
blanking
• Combined output with PNP/NPN (push-pull) and FSS
• Easiest alignment
• 2nd output for additional information
• Ideal for modernization projects due to FSS control
unit
• Door closing speed up to 1.6 m/s
• Fulfils SIL 2 without testing if FSS output selected
• Version with communication interface available
• Cross section only 12 mm × 14.5 mm
4.2 Types - GridScan/Pro
• Standard
The standard type features door blanking and resolution,
according to EN 12978:2009. This means there are
different resolutions between elements along the length of
the edge.
Important: The standard type is certified according to EN
ISO 13849-1:2015 and EN 12978:2009 if the door is
monitored over its full height up to 2.5 m (8.2 ft).
• ST type
The ST type has no door blanking feature. It can be used as
a Cat. 2 safety light curtain for different applications.
Important: The ST type is certified according to
EN ISO 13849-1:2015 and EN 12978:2009 if the door is
monitored over its full height up to 2.5 m (8.2 ft).
4.3 Type description
Figure 2: Type description
Example:
• GRS/Pro SY-2500-22
GridScan/Pro system, 2500 mm safety length, 22 elements
4.4 Intended use
The GridScan/Pro is designed and approved for the
mounting and use in- and outside guiding rail of industrial
doors application to protect persons according to
EN 12978:2009 and EN 12453:2017.
The GridScan/Pro can be used as a safety device according
EN 12453:2017 as E-device and fulfills the safety levels
up to SIL 2 according to EN 61508:2010 and the category
2 (cat. 2) / performance level d (PL d) according to
EN ISO 13849-1:2015.
GRS/Pro – aa – bbbb – cc, dd, ee, ff
aa : SY System
Tx Emitter
Rx Receiver
dd : - Standard type with blanking
ST Static type
bbbb : Safety length in mm
cc : Number of elements
ee : Information of output 1 (factory settings)
ff : Information of output 2 (factory settings)
