5.1 Axial alignment

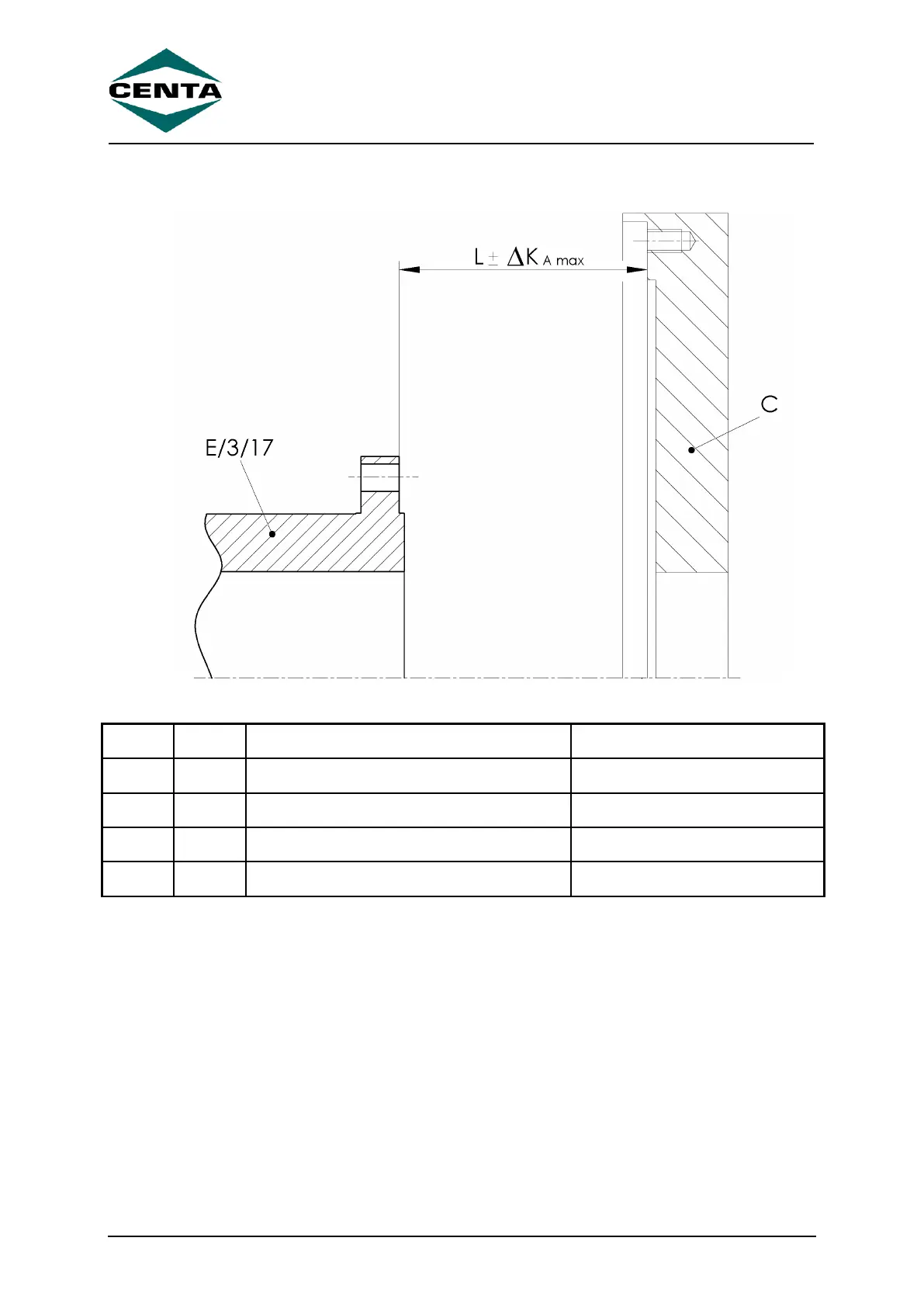

Fig. 5-1 Axial misalignment
Item
Info
Designation
Remark
3
Hub
If scope of supply
17
Adapter
If scope of supply
C
Flywheel
Customer part
E
Flange
Customer part
Determine the axial misalignment (see Fig. 5-1).
 Take installation length L from the installation drawing.
 Align the units (installation dimension = L±∆K
A max
).
Permissible axial alignment tolerance:
∆K
A max
=0.5 mm
