6.3.2 Mounting the hub with conical oil interference fit

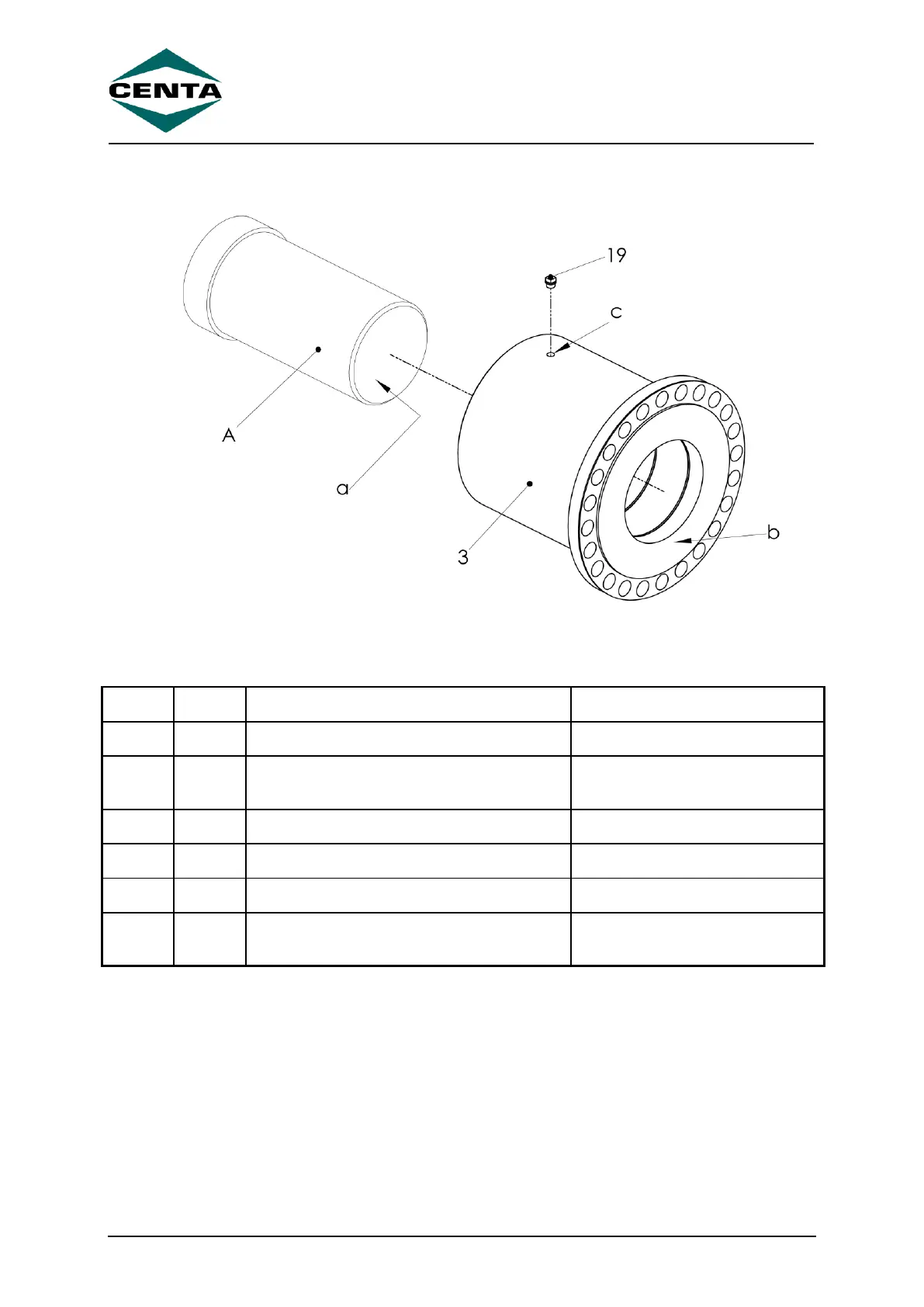

Fig. 6-3 Mounting the hub with conical oil interference fit
Item
Info
Designation
Remark
3
Hub
19
Screw plug
G¼ or G¾
see installation drawing
A
Shaft
Customer part
a
Face of shaft
b
Face of hub
c
Thread
G¼ or G¾
see installation drawing
 Lightly oil the cone of the shaft (A).
 Push the hub (3) onto the shaft (A).
 Remove the screw plug (19) from the hub (3).
