6.4 Mounting the adapter (17; if existing)

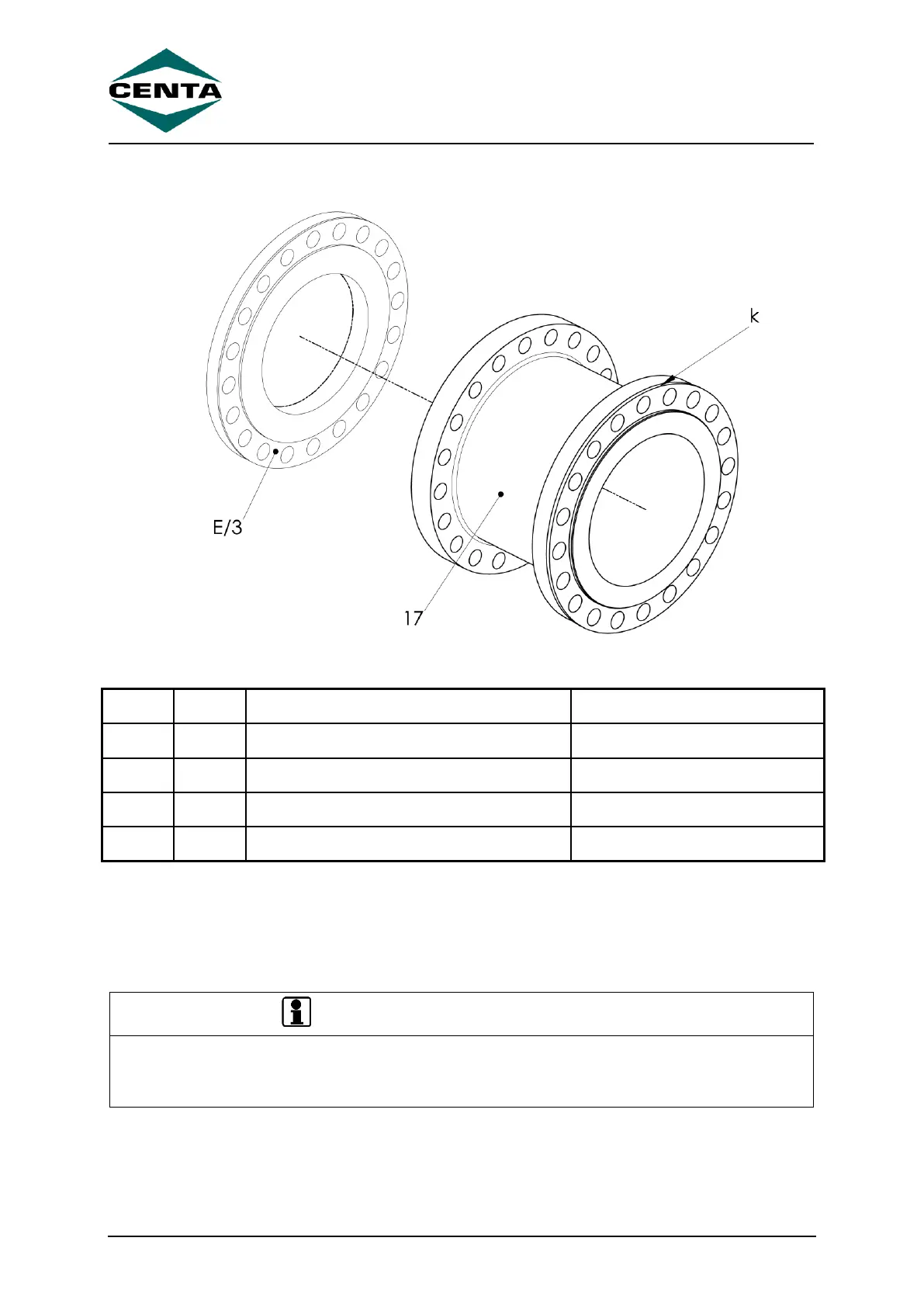

Fig. 6-4 Mounting the adapter (17; if existing)
Item
Info
Designation
Remark
3
Hub
If scope of supply
17
Adapter
E
Flange
Customer part
k
Centring
For the membrane
 Push the adapter (17) onto/into the centring of the flange/hub (E/3, see
installation drawing).
The centring (k) must be directed towards the membrane (1.2.1).
 Screw the adapter (17) to the flange/hub (E/3). The screwing can be taken
from the installation drawing.
IMPORTANT
Tightening torques for elements to connect couplings with customer parts could deviate
from CENTA data sheet D013-013.
Consider specifications on installation drawing.
6.5 Aligning the units
 Align the units to be connected (see chapter 5).
