6.9 Mounting the pre-mounted rubber element (F) to the flywheel

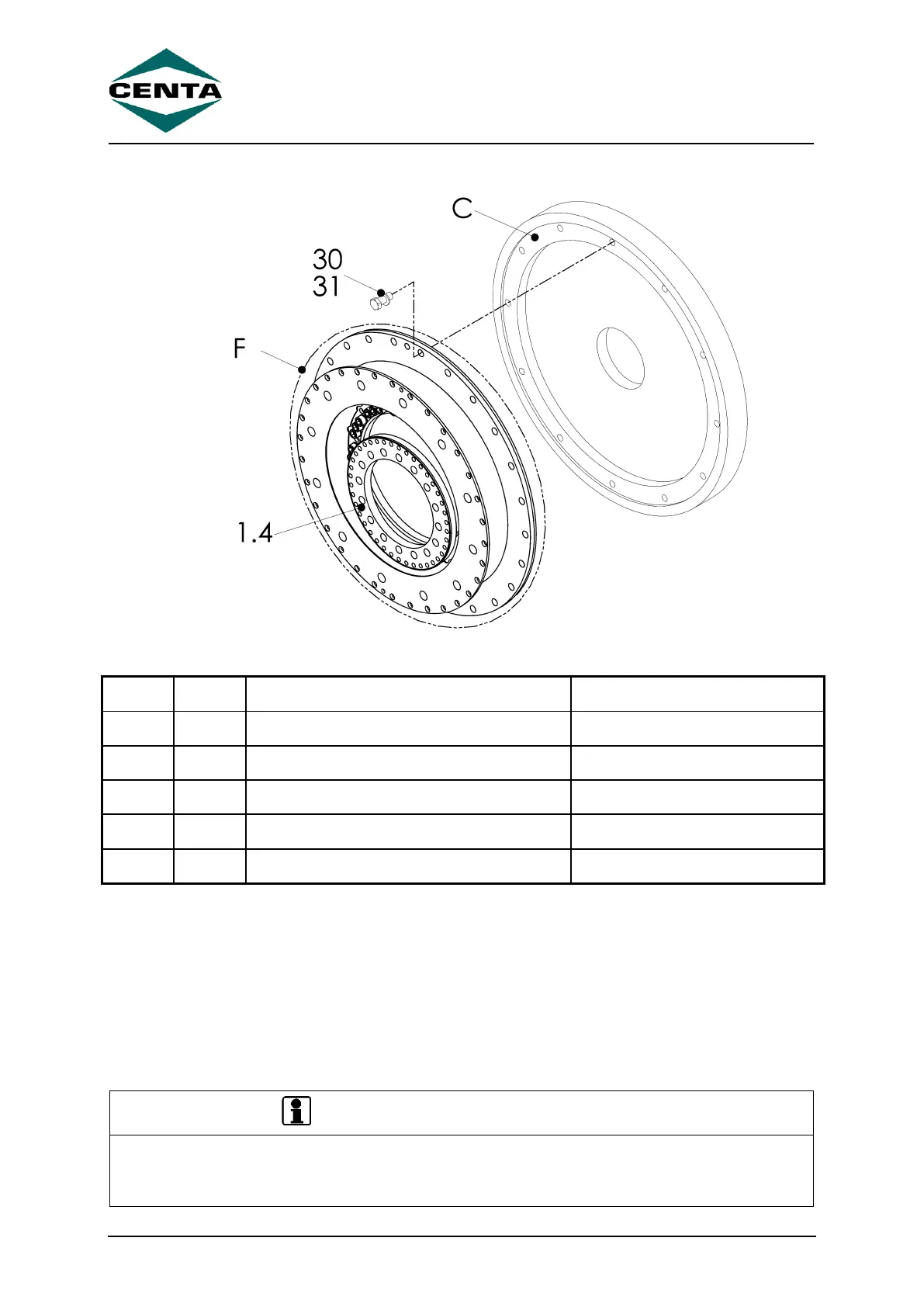

Fig. 6-7 Mounting the pre-mounted rubber element (F) to the flywheel
Item
Info
Designation
Remark
1.4
Ring
30
Screw ISO4762-10.9
If ordered
31
Washer ISO7089-300HV
If ordered
C
Flywheel
Costumer part
F
Pre-mounted rubber element
Pre-mounted by CENTA
 Push the pre-mounted rubber element (F) with the ring (1.4) into the
centring of the flywheel (C).
 Screw the pre-mounted rubber element (F) to the flywheel (C) using the
screws (30) and the washers (31). The ring (1.4) remains inside the pre-
mounted rubber element (F) for later mounting.
IMPORTANT
Tightening torques for elements to connect couplings with customer parts could deviate
from CENTA data sheet D013-013.
Consider specifications on installation drawing.
