Assembly and operating instructions
CENTAX-G
020G-00050…00090-F.10
M020-00009-EN
Rev. 4
CENTA Antriebe Kirschey GmbH 33 / 52
6.10 Mounting the rubber element (1.1), the ring (20; if existing) and
the adapter (4) to the flywheel
6.10.1 Positioning the rubber element (1.1) and the ring (1.4)

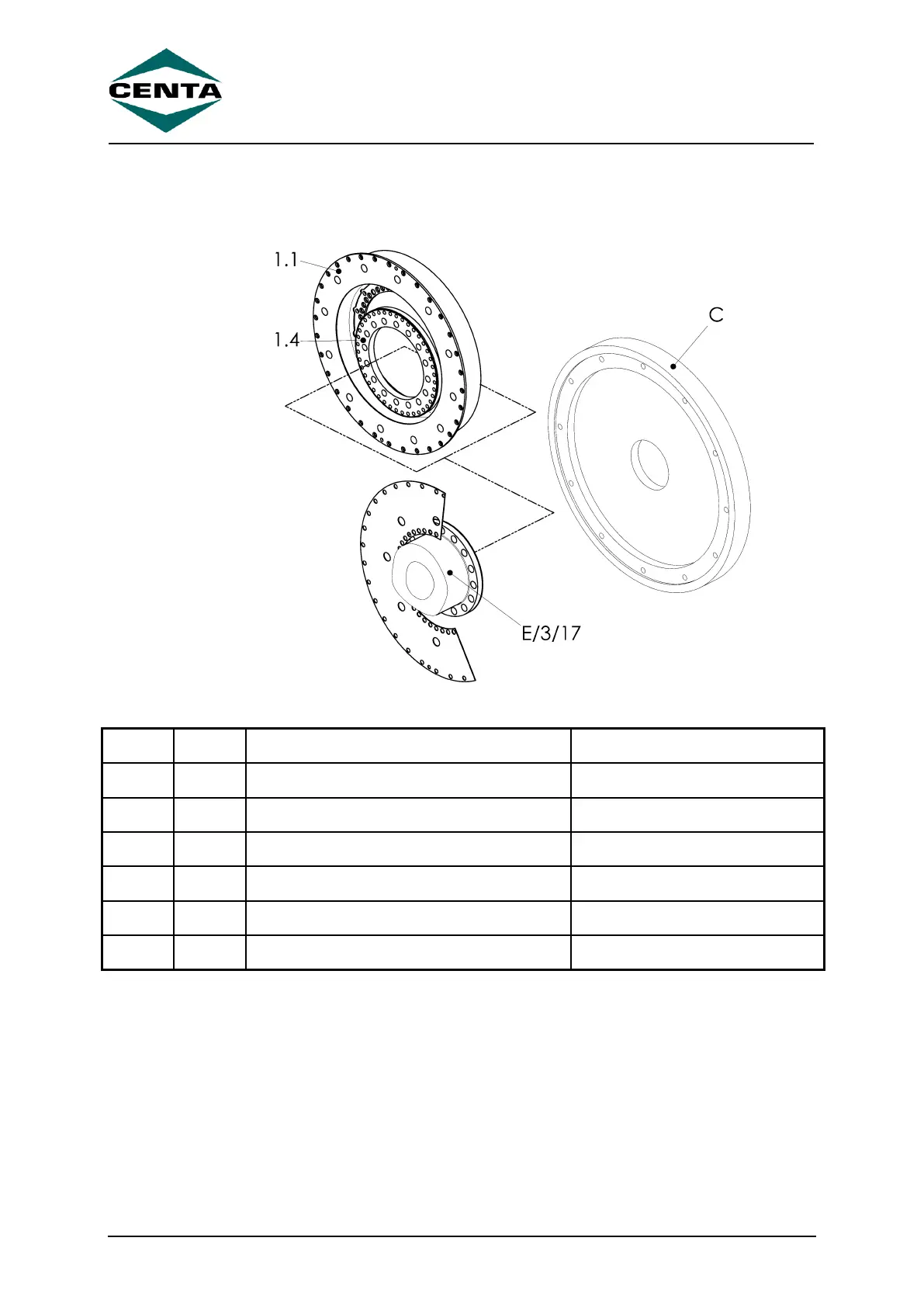

Fig. 6-8 Positioning the rubber element (1.1) and the ring (1.4)
Item
Info
Designation
Remark
1.1
Rubber element
1.4
Ring
3
Hub
If scope of supply
17
Adapter
If scope of supply
C
Flywheel
Customer part
E
Flange
Customer part
 Place the rubber element (1.1) with the ring (1.4) on the flange/hub/adapter
(E/3/17).
