6.11 Mounting the ring (1.4)

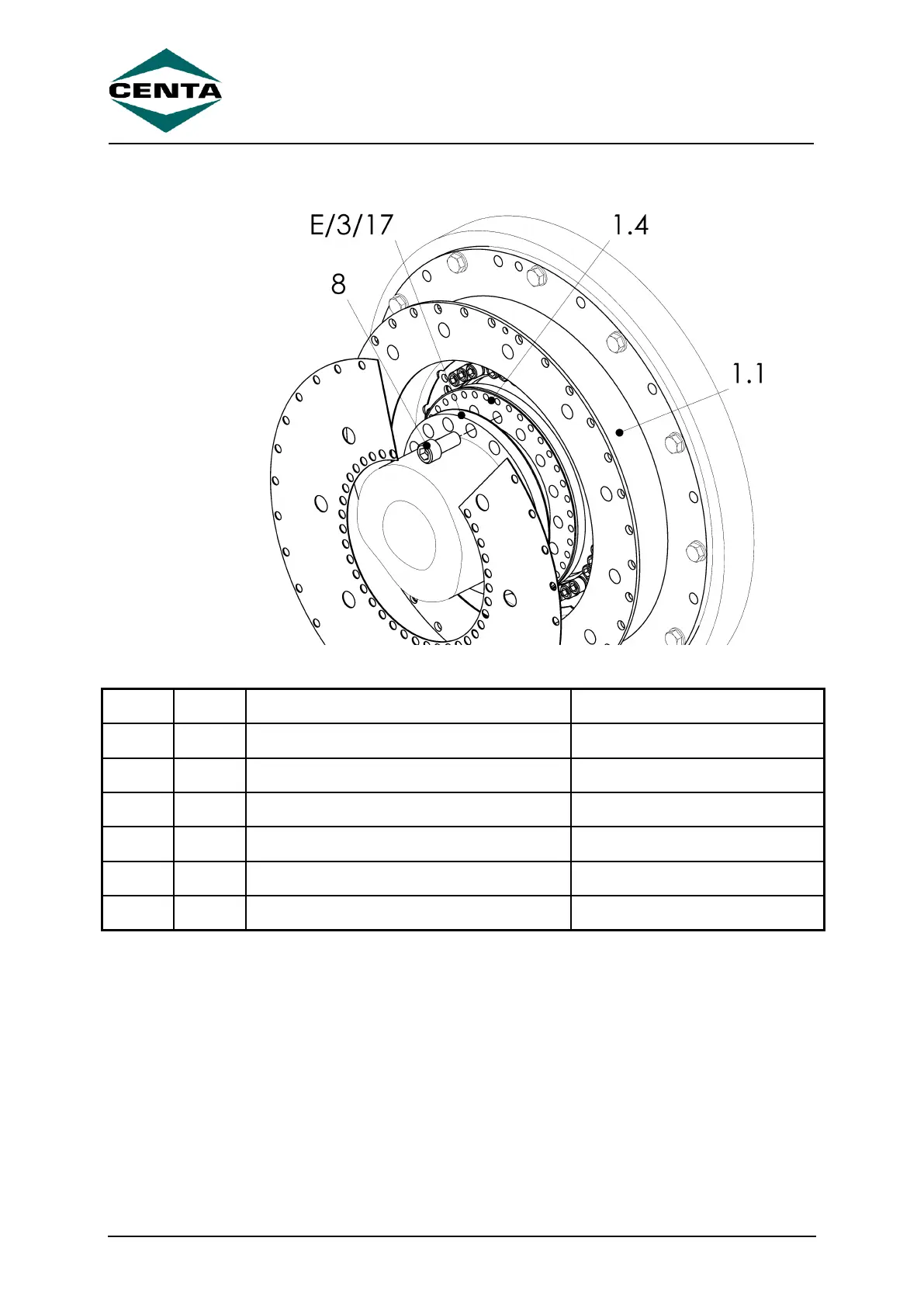

Fig. 6-11 Mounting the ring (1.4)
Item
Info
Designation
Remark
1.1
Rubber element
1.4
Ring
3
Hub
If scope of supply
8
Screw ISO4762-10.9
17
Adapter
If scope of supply
E
Flange
Customer part
 Push the ring (1.4) onto the centring of the flange/hub/adapter (E/3/17).
 Screw the flange/hub/adapter (E/3/17) to the ring (1.4) using the
screws (8).
6.12 Mounting the membrane (1.2.1)
 Mount the membrane as appropriate for the coupling size supplied:
 Mounting the membrane (sizes 00050…00075), see chapter 6.12.1.
 Mounting the membrane (sizes 00078…00090), see chapter 6.12.2.
